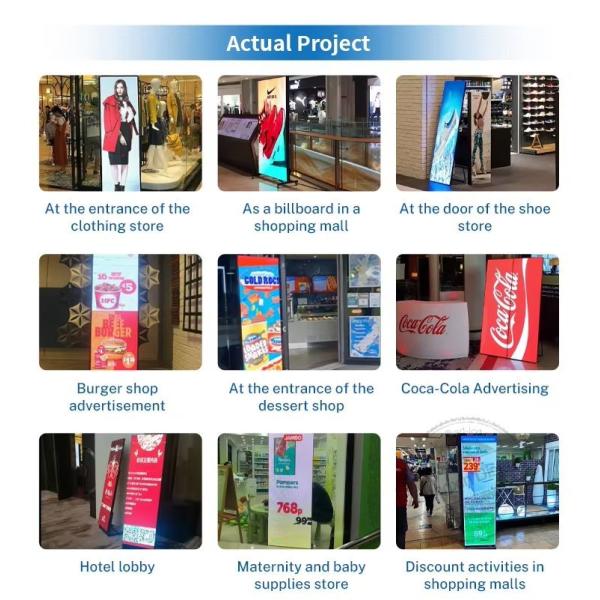

Floor stand LED screen is a versatile and interactive display solution often used in public spaces, retail environments, conferences, and exhibitions. Here are the key features of a typical floor stand LED screen:
Technical Parameters:
Model No | A1.6 | A1.8 | A2.0 | A2.5 | A3.0 |
Pixel pitch | P1.6mm | P1.8mm | P2mm | P2.5mm | P3mm |
LED lamp | SMD1010/SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 |
Pixel resolution | 410914 Pixel/m2 | 410914 Pixel/m2 | 410914 Pixel/m2 | 410914 Pixel/m2 | 410914 Pixel/m2 |
Module size | 320x160 | 320x160 | 256x128 | 320x160 | 320x160 |

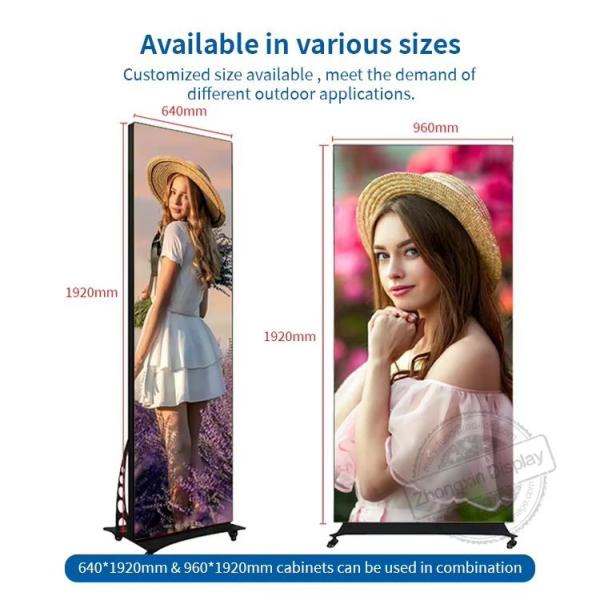

Poster screen size | 640x1920mm | 640x1920mm | 512x1792mm | 640x1920mm | 640x1920mm |
or customize size | or customize size | or customize size | or customize size | customize size | |
Scan | 1/48 | 1/40 | 1/32 | 1/32 | 1/26 |
Pixel Composing | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
Cabinet Material | Aluminium Cabinet | Aluminium Cabinet | Aluminium Cabinet | Aluminium Cabinet | Aluminium Cabinet |
Cabinet Weight | 50kg | 50kg | 46kg | 50kg | 50kg |
Viewing Angle | H:140° V:140° | H:140° V:140° | H:140° V:140° | H:140° V:140° | H:140° V:140° |
Color Temperature | 6000-9500K | 6000-9500K | 6000-9500K | 6000-9500K | 6000-9500K |
Gray Scale | 14-16bit | 14-16bit | 14-16bit | 14-16bit | 14-16bit |
Max Power Consumption | 550W/m2 | 550W/m2 | 550W/m2 | 550W/m2 | 550W/m2 |
Average Power Consumption | 230W/m2 | 230W/m2 | 230W/m2 | 230W/m2 | 230W/m2 |
Refresh Rate | 3840HZ | 3840HZ | 3840HZ | 3840HZ | 3840HZ |
Brightness | 800-1500nits | 800-1500nits | 800-1500nits | 800-1500nits | 800-1500nits |
Ingress Protection | IP43 | IP43 | IP43 | IP43 | IP43 |
Operating Temperature | 1-20C~60C | -20C~60C | -20C~60C | -20C~60C | -20C~60C |
Operating Humidity | 10%~65%RH | 10%~65%RH | 10%~65%RH | 10%~65%RH | 10%~65%RH |
Input Voltage | AC220V/110V15% 47-64Hz | AC220V/110V15% 47-64Hz | AC220V/110V15% 47-64Hz | AC220V/110V15% 47-64Hz | AC220V/110V15% 47-64Hz |
NTBF | ≥50000 hours | ≥50000 hours | ≥50000 hours | ≥50000 hours | ≥50000 hours |
Life Time | 100000 hours | 100000 hours | 100000 hours | 100000 hours | 100000 hours |
Meetings, Videos, Etc: Equipped with a front facing camera suitable for daily work and life video needs, it can support screen mirroring.
Kitchen, Games, Music: Use landscape mode for movies, rotate it 90 degrees for social media in portrait mode, or lay it flat in table mode for board games and music.
Indoor Clothing Matching:Controlling the Portable Tablet TV is as easy as touching the screen,making it simple for everyone in the family to enjoy.
Q: What kind of inspection you can provide?
A: Zhongxin has multiple tests from material purchasing to finished products by different departments, like QA, QC, sales
representative, to guarantee all signage players are in perfect condition before shipment. We also accept the inspection by the third party you appointed.
Q: What is your guarantee period?
A: Zhongxin provides 1 (one) year quality guarantee for the products from your purchase date, except the human damage and force majeure factor. For a better maintenance, be sure that the players are using under normal circumstances (not more than 16 hours daily).
Beyond the guarantee period machine, Zhongxin will provide maintenance service and technical support (Hardware and other possible charges, we will not bear the responsibility)
Q: How can I pay for the order?
A: Our payment terms: T/T, Western Union, Paypal.
1) For sample order: 100% T/T or Western Union in advance, Paypal is also acceptable.
2) For bulk order: T/T (Bank Transfer), 30% down payment, 70% balance should be paid before the delivery of the goods.
