Flex Polyimide Copper Flexible PCB Board , Flexible Circuit Board Standard IPC 2
Flex Polyimide Copper Flexible PCB Board , Flexible Circuit Board Standard IPC 2
Flex Polyimide Copper Flexible PCB Board , Flexible Circuit Board Standard IPC 2
Flex Polyimide Copper Flexible PCB Board , Flexible Circuit Board Standard IPC 2
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cablelinker
Model Number :
FPC-G-8000
Supply Ability :
5000 Piece / Pieces per Week
Packaging Details :
Standard Package carton box with polybag inside waterproof.
MOQ :
1Piece/Pieces
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, D/A, D/P
Delivery Time :
10-20 Days
Base Material :
FR-4,CEM-3,Taconic,Rogers
Copper Thickness :
0.3oz-3oz
Board Thickness :
0.11mm-0.5mm
Min. Hole Size :
0.2mm/0.3mm
Min. Line Width :
0.075mm/0.075mm(3mil/3mil)
Min. Line Spacing :
0.075 Mm
Surface Finishing :
Immersion Gold/Au, HASL
Application :
Electronics Device
Hole tolerance :
PTH:±0.075,NTPH:±0.05
Profiling punching :
Routing, V-CUT, Beveling
FPC Layer :
Multi-layers
Solder mask :
green/black/white/red/blue
PCB Standard :
IPC-A-610 E Class II-III
Wrap and twist :
5%
certification :
ROHS
Warranty :
2 years
Port :
Shenzhen
Description
Product Description

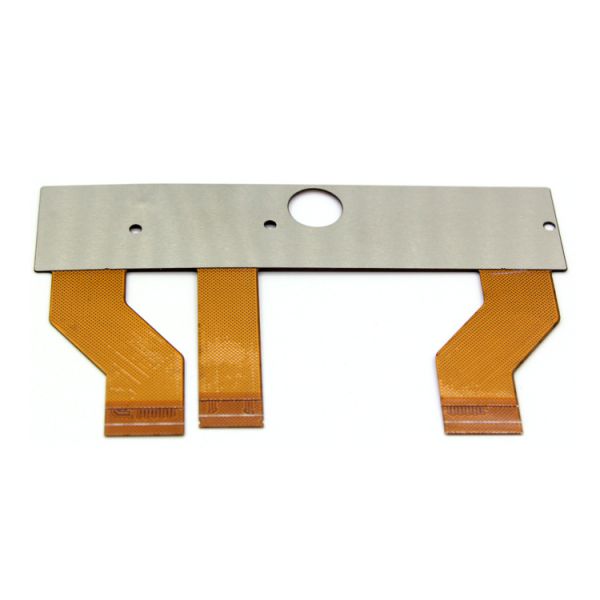

High Quality Flex Polyimide Copper Flexible PCB
Flexible PCB Board
Quality Grade Standard IPC 2 Material FR-4,CEM-3,Taconic,Rogers
Number of Layers 1 - 8layers Board Size Min 6*6mm, Max 406*610mm
Order Quantity 1pc - 10000+pcs Board Thickness 0.1mm - 0.8mm
Build Time 2days - 5weeks Copper Weight (Finished) 0.5oz - 2.0oz
Min Tracing/Spacing 3mil/3mil Silkscreen Sides As per the file
Solder Mask Sides As per the file Silkscreen Color White, Black, Yellow
Solder Mask Color Green, White, Blue, Black, Red, Yellow Surface Finish

HASL - Hot air solder leveling

Lead - free HASL - RoHS

ENIG - RoHS

Immersion Tin - RoHS

OSP - RoHS
Solder-stop coating---Soldermask oil Green, White, Blue, Black, Red, Yellow
Solder-stop coating---Coverlay PI and PET film
Min Annular Ring 4mil
Min Drilling Hole Diameter 8mil
Min. hole size---Drilling (PTH) 0.2mil Other Techniques

Peelable solder mask

Gold fingers

Stiffener (only for PI/FR4 substrate)
Min. hole size---Punching (NPTH) 0.5mil
Tolerance of dimension ±0.05mm


Cablelinker designs and manufactures flexible printed circuits (FPC), customized wire harnesses for our customers worldwide.


Cablelinker provides comprehensive engineering and manufacturing specializing in flexible interconnect systems.
From our inception, we have been dedicated to developing innovative high-density interconnect solutions for all electronics industries. Cablelinker has the expertise to provide design, documentation, procurement and supply chain management with specialized added value services and support.

MANUFACTURING SERVICES:

Laser Services and Plasma Cleaning
Steel Rule Die Outlining
Class A Die Outlining
Folding, Wrapping, Forming
Overmolding
Silver Shielding (360 Degree Coverage)
Marking and Labeling
Solder Assembly
Electrical Testing

Application

FPC cable is widely used in all kinds of electronics product which is indicated as below :

1. Displayer
2. PC and Computer
3. Flat screen TV
4. Printer, Scanner, FAX machine, Copier.
5. Sound Box
6. MP3, MP4
7. CD/ DVD
8. Digital camera

9. Fax machine and copier

10. Scanner

11. Acoustics

12. Tablet PC

13. toy for children

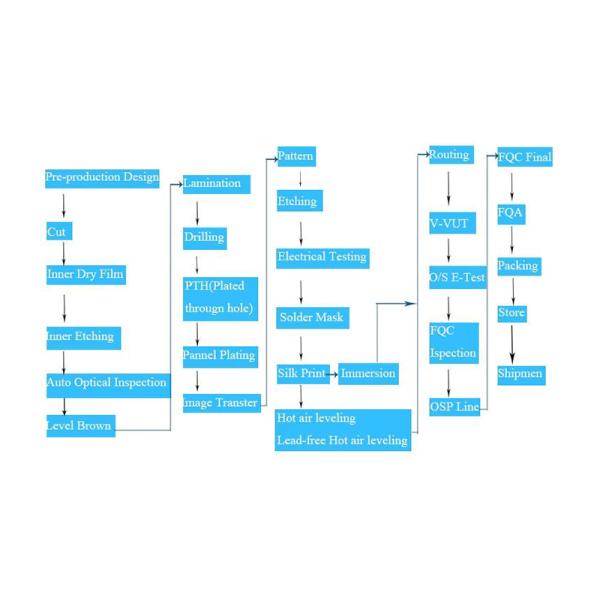

PROCESS FLOW :

Flex Polyimide Copper Flexible PCB Board , Flexible Circuit Board Standard IPC 2

Detailed Images

Flex Polyimide Copper Flexible PCB Board , Flexible Circuit Board Standard IPC 2Flex Polyimide Copper Flexible PCB Board , Flexible Circuit Board Standard IPC 2

Payment and Shipment

Flex Polyimide Copper Flexible PCB Board , Flexible Circuit Board Standard IPC 2

Company Information

Cablelinker provides comprehensive engineering and manufacturing specializing in flexible interconnect systems.
From our inception, we have been dedicated to developing innovative high-density interconnect solutions for all electronics industries. Cablelinker has the expertise to provide design, documentation, procurement and supply chain management with specialized added value services and support.

Our products can be widely applied to a variety of fields, including communication, computers, medical equipments, consumer electronics and automobile industry.

  • PCB design
  • Reverse Engineering-PCB copy, PCB clone, IC decode
  • Quick prototyping
  • Components sourcing and purchasing
  • FPC making Mold making
  • and plastic injection
  • PCB, PCBA SMD, SMT assembly
  • Supply chain service
