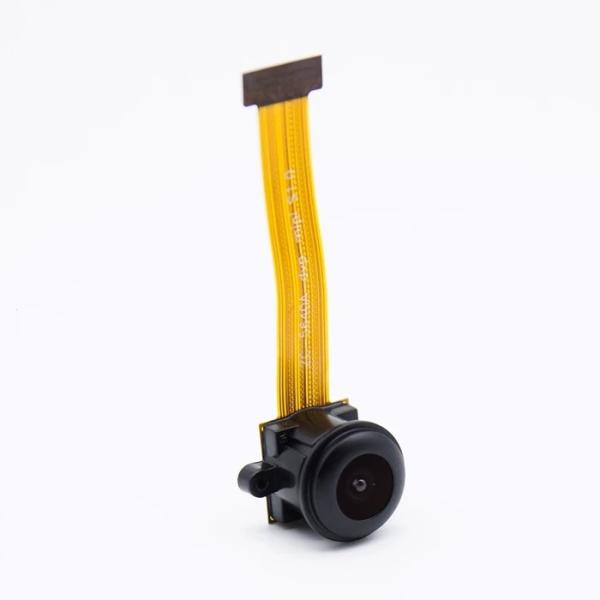

Digital Camera Cctv Lens FPC Flat Cable Immersion Gold Surface Finishing
Digital Camera Cctv Lens FPC Flat Cable Immersion Gold Surface Finishing
Digital Camera Cctv Lens FPC Flat Cable Immersion Gold Surface Finishing
Digital Camera Cctv Lens FPC Flat Cable Immersion Gold Surface Finishing
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cablelinker
Model Number :
TG0262
Supply Ability :
5000 Piece / Pieces per Week
Packaging Details :
Standard Package carton box with polybag inside waterproof.
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, D/A, D/P
Delivery Time :
10-20 Days
Base Material :
Polyimide
Copper Thickness :
1OZ
Board Thickness :
0.15
Min. Hole Size :
0.5mm
Min. Line Width :
0.15
Surface Finishing :
Immersion Gold
Application :
CCTV Camera
Port :
Shenzhen
Description

Product Description

Cctv lens camera FPC Cable for cctv security camera

Standard Flex Materials:

Base Copper: 1/3 oz. - .00047 in. (.012mm)--rarely used
1/2 oz. - .0007 in. (.018mm)
1 oz. - .0014 in. (.036mm)
2 oz. - .0028 in. (.071mm)
Solder Mask: Polyimide Coverlay: 0.5 mil to 5 mils Kapton (.012mm - .127mm)
with 0.5 to 2 mil Adhesive (.012mm - .051mm)
LPI and LDI Flexible Soldermasks

Specification of FPC Manufacturing

Material FR4,Polyimide / Polyester
Counts Flex: 1~8L; Rigid-Flex: 2~8L
Board Thickness Min.0.05mm ; Max. 0.3mm
Copper Thickness 1/3 oz-2 oz
Holes Location Tolerance ±0.05mm
Coverlay Drill Size (Min) 0.6mm
CNC Drill Size (Max) 6.5mm
CNC Drill Size (Min) Flex: 0.15mm
Min Line Width / Spacing 0.1/0.1mm
Min Pad Size φ0.2mm
Etch Tolerance Finished line width tolerance ±20%
Hole to Coverlay Opening Windows (Min) 0.15mm
Surface Finish Plating Ni / Au ; Chemical Ni / Au ; OSP; Immersion Silver/Gold, OSP, Gold plating
Coverlay Registration Tolerance ±0.15mm
Solder Mask Registration Tolerance ±0.2mm
Min. Solder Mask Dam 0.1mm
Stiffener, Adhesive, Glue paper ±0.30mm

Application:

1. Camera, digital camera, DV
2. Printer, fax machine, scanner
3. Laptop, LCD screen, CD-ROM drive, hard disk, HDD
4. Mobile phone, mobile battery, mobile antenna, SD card
5. Recorder head, laser bald, VCD, DVD
6. Car, car DVD, auto meter, GPS
7. Aerospace, satellite
8. Medical equipment
9. Instrumentation

10. Home Appliances

Product Show:

Digital Camera Cctv Lens FPC Flat Cable Immersion Gold Surface Finishing

Digital Camera Cctv Lens FPC Flat Cable Immersion Gold Surface Finishing

Our Services

Why us ?

1) Professional engineer team --help you to check design and do engineering before production

2) Rich expierences in pcb production industry--provide high quality and competitive price pcb.

3) After-sales service--every problem you have will get our professional advice and solution.

4) Constant follow up-- make us have the fast reaction of your requirement.

5) Inspected by the Inspection Institution--ISO,UL,ROHS cerfiticated.

Digital Camera Cctv Lens FPC Flat Cable Immersion Gold Surface FinishingDigital Camera Cctv Lens FPC Flat Cable Immersion Gold Surface Finishing

Company Information

Cablelinker Electronic has successfully applied its products to many aspects, such as automobile, security and protection, household appliances, energy power, mobile communication, industrial automation, medical apparatus ect.

Our advantage in these product lines is due to innovative technical abilities, high quality levels, and experienced customer service.Quality and service is always our highest priority .By following this standard, Cablelinker Electronic has become one of the leading manufacturers of cable assemblies and also can create new value-added cables that improve their customers' production processes and reduce their costs.

CABLELINKER services a variety of industries, focusing on :

MEDICAL

In an industry where lives are literally on the line, failure is not an option. Cablelinker’s interconnect systems help CT Scanners, medical monitors, IV pumps, defibrillators, LED equipment, and oral surgeon and dental equipment function reliably.


MILITARY & AEROSPACE SYSTEMS

Cablelinker plays a vital role in creating a safer world. We’ve manufactured and tested high-reliability products and systems in support of commercial and military aviation, defense operations, and communications. We are relied on for designing and deploying robotics, avionics, and launching control solutions that protect our service men and women, allowing them to complete their important work.


COMMERCIAL SYSTEMS

Security Scanners, Hand Held Portable Data Collection Devices, GPS Systems, Industrial Test Equipment as well as Classified Security Systems are just some of the sectors where Cablelinker’s interconnect solutions are found.
