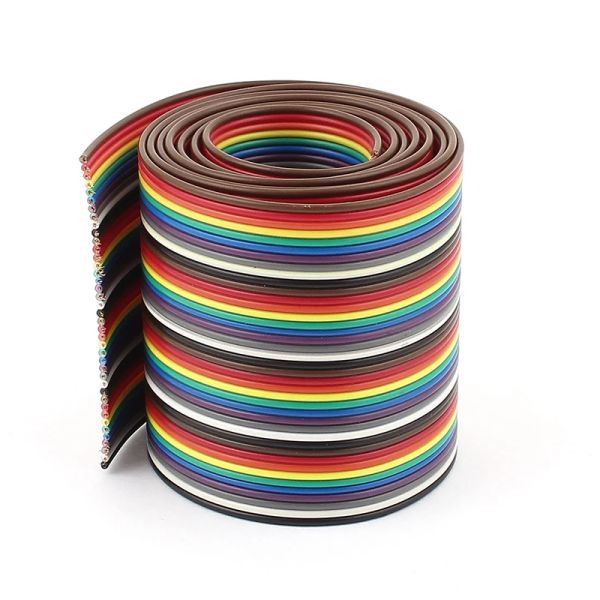

1m 3.3ft 40 Way Rainbow IDC Wire , Flat Ribbon Cable Customized Length
1m 3.3ft 40 Way Rainbow IDC Wire , Flat Ribbon Cable Customized Length
1m 3.3ft 40 Way Rainbow IDC Wire , Flat Ribbon Cable Customized Length
1m 3.3ft 40 Way Rainbow IDC Wire , Flat Ribbon Cable Customized Length
1m 3.3ft 40 Way Rainbow IDC Wire , Flat Ribbon Cable Customized Length
1m 3.3ft 40 Way Rainbow IDC Wire , Flat Ribbon Cable Customized Length
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cablelinker
Model Number :
HB5204
Supply Ability :
5000 Piece / Pieces per Week
Packaging Details :
Standard Package carton box with polybag inside waterproof.
MOQ :
10 Piece/Pieces
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, D/A, D/P
Delivery Time :
10-20 Days
Application :
Computer
Product name :
Flat Ribbon Cable IDC Wire
MOQ :
1pcs
Pitch :
1.27/2.0mm/2.54mm
Connector :
IDC Wire-to-board Connector
Wire cable material :
Tin Plated
Length :
Customized
Service :
OEM ODM Accept
Lead time :
10-20 Days
Port :
Shenzhen
Description

Cablelinker designs and manufactures flexible printed circuits (FPC), flat flexible cables (FFC) and customized wire harnesses like LVDS cable, coaxial (coax) cable and ribbon cable.

Product Description

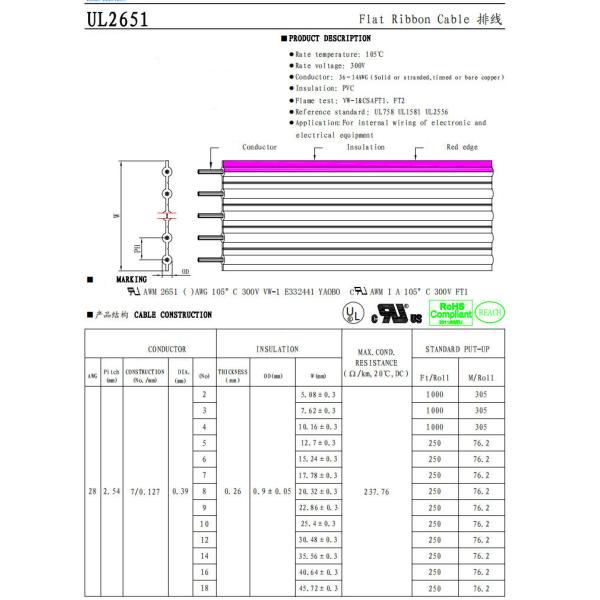

Product name: 2.54 IDC finished ash line

Gray line spacing: 1.27MM (otherwise: 0.635MM 1.0MM 2.0MM 2.54MM)

Gray cable specifications: 28AWG (other: 32AWG 30AWG 26AWG 24AWG)

Copper wire structure material: first plated and then twisted (other: first twisted and then plated copper-clad steel aluminum-magnesium wire 7--12 copper wire)

Copper core conductor: 7 / 0.12MM [Conventional 7 / 0.08MM 7 / 0.09MM 7 / 0.1MM 7 / 0.16MM 7 / 0.2MM (7 is a 7-strand copper wire)]

Outer quilt color: Normally gray with red border and printing, and black and yellow, need to be customized!

Packing: 10 pieces per pack, 10 pieces per pack

Conductor diameter 0.12 ± 0.005mm
Conductor elongation 18℅ ↑
Conductor cross-section area 0.36mm2
Conductor twist distance 10.7mm ↓
Insulator thickness 0.10mm minimum 0.23mm average
Wire diameter thickness 0.9 ± 0.05mm
Insulator elongation 100.00℅
Insulator tensile strength 1.066Kg / m㎡ ↑
Spark test 3.0KV / 0.15SPC ↑
Withstand voltage 2KV 10mA /
Conductor resistance ≤237 ohm / RM ↓
Insulation resistance ≥100m ohm / RM ↑
Capacitance 40PF / M
100 ohm impedance

Time delay 4

Working temperature: -40 ° C ~ + 105 ° C
Insulation outer cover: environmental protection PVC 45P (RoHS) 8058 gray

Testing requirements:
Good appearance, no plastic injection defects
Metal parts must not have defects such as scratches and deformation
On-off performance meets specified requirements

Widely used in various computers, instruments, machines, appliances, automobiles, color TVs, air conditioners, LED displays, DVD, VCD and other connectors and connectors.

Welcome all manufacturers and buyers to inquire and order !!

1m 3.3ft 40 Way Rainbow IDC Wire , Flat Ribbon Cable Customized Length

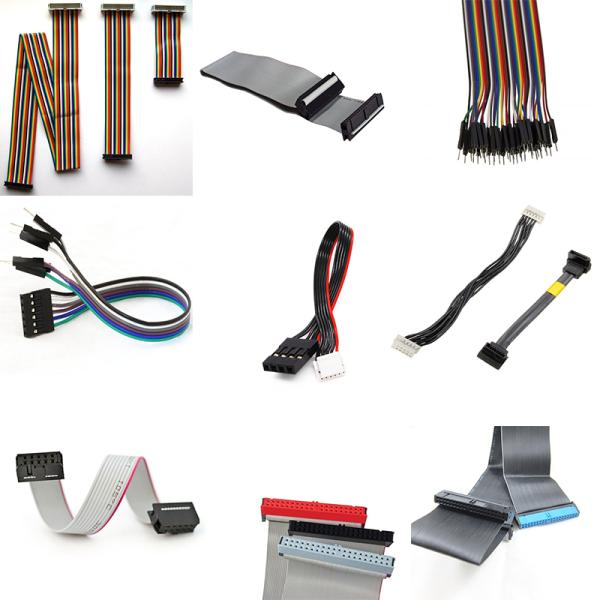

Products Show

1m 3.3ft 40 Way Rainbow IDC Wire , Flat Ribbon Cable Customized Length1m 3.3ft 40 Way Rainbow IDC Wire , Flat Ribbon Cable Customized Length

1m 3.3ft 40 Way Rainbow IDC Wire , Flat Ribbon Cable Customized Length
