1 -6 Layers FPC Flex Ribbon Cable , DJI Phantom 3 Standard Camera Cable
1 -6 Layers FPC Flex Ribbon Cable , DJI Phantom 3 Standard Camera Cable
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cablelinker
Model Number :
For Phantom 3S FPC
Supply Ability :
5000 Piece / Pieces per Week
Packaging Details :
Standard Package carton box with polybag inside waterproof.
MOQ :
50 Piece/Pieces
Price :
Negotiable
Base Material :
FR-4,CEM-3,Taconic,Rogers
Copper Thickness :
0.3oz-3oz
Board Thickness :
0.11mm-0.5mm
Min. Hole Size :
0.2mm/0.3mm
Min. Line Width :
0.075mm/0.075mm(3mil/3mil)
Min. Line Spacing :
0.075 Mm
Surface Finishing :
Immersion Gold/Au, HASL
Item :
Flex Ribbon Cable For DJI
Application :
Electronics Device
Hole tolerance :
PTH:±0.075,NTPH:±0.05
Profiling punching :
Routing, V-CUT, Beveling
FPC Layer :
Multi-layers
Solder mask :
green/black/white/red/blue
PCB Standard :
IPC-A-610 E Class II-III
Wrap and twist :
5%
certification :
UL,ROHS
Warranty :
2 years
Port :
Shenzhen
Delivery Time :
10-20 Days
Payment Terms :
T/T, L/C, Western Union, D/A, D/P
Description
Product Description

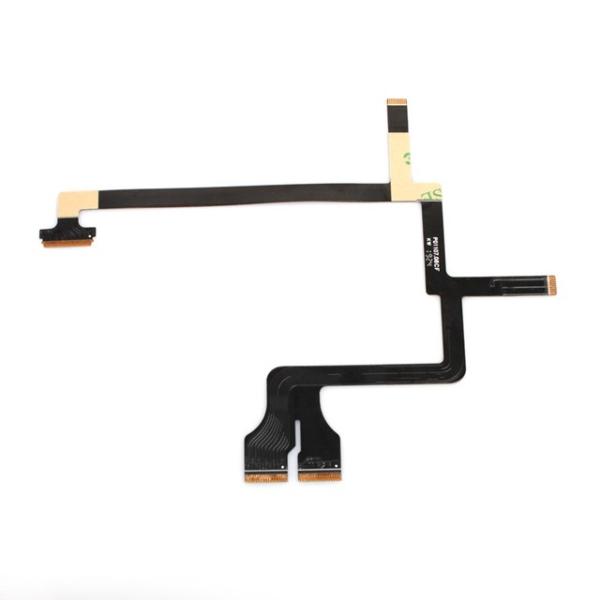

Flex Ribbon Cable replace For DJI Phantom 3 Standard Vision Plus Gimbal Camera M15

Product Name Flex Ribbon Cable replace For DJI Phantom 3 Standard Vision Plus Gimbal Camera M15
Layers FPC:1 to 6 Layers, Rigid Flex: 2 to 10 Layers
Regular Base Materials Kapton,Polyimide(PI), Polyester(PET), FR4
Base Copper Thickness 1/3 oz to 8oz
Regular Base Material Thickness 12.5um to 50um(FPC)
Regular Coverlay Thickness 27um to 50um
Outline Fabrication Die cut, laser cut, CNC routing, V-scoring
Min.Line Width/Spacing 0.03mm/0.03mm
Hole to edge(Hard tool/Die Cut) ±0.1/±0.2mm
Edge to edge(Hard tool/Die Cut) ±0.05/±0.2mm
Circuit to edge(Hard tool/Die Cut) ±0.07/±0.2mm

Cablelinker designs and manufactures flexible printed circuits (FPC), flat flexible cables (FFC) and customized wire harnesses for our customers worldwide.


Cablelinker provides comprehensive engineering and manufacturing specializing in flexible interconnect systems.
From our inception, we have been dedicated to developing innovative high-density interconnect solutions for all electronics industries. Cablelinker has the expertise to provide design, documentation, procurement and supply chain management with specialized added value services and support.

MANUFACTURING SERVICES:

Laser Services and Plasma Cleaning
Steel Rule Die Outlining
Class A Die Outlining
Folding, Wrapping, Forming
Overmolding
Silver Shielding (360 Degree Coverage)
Marking and Labeling
Solder Assembly
Electrical Testing


CABLELINKER ADVANTAGE:

Independent, unbiased design
Total Solution provider
Improve reliability while enhancing performance
Improved overall system cost
Improved design
Improved manufacturability
Improved time to market

Application

FPC cable is widely used in all kinds of electronics product which is indicated as below :

1. Displayer
2. PC and Computer
3. Flat screen TV
4. Printer, Scanner, FAX machine, Copier.
5. Sound Box
6. MP3, MP4
7. CD/ DVD
8. Digital camera

9. Fax machine and copier

10.Scanner

11. Acoustics

12. Tablet PC

13.toy for children

PRODUCTION FLOW :

Detailed Images

1 -6 Layers FPC Flex Ribbon Cable , DJI Phantom 3 Standard Camera Cable1 -6 Layers FPC Flex Ribbon Cable , DJI Phantom 3 Standard Camera Cable
