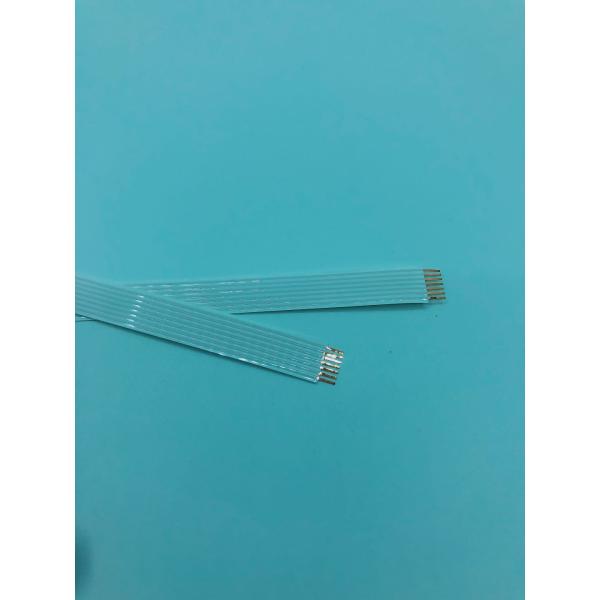

Car 7 Pin Airbag FFC Flat Cable For RENAULT SCENIC II Pitch 0.5/0.8/1.0/1.25mm
Car 7 Pin Airbag FFC Flat Cable For RENAULT SCENIC II Pitch 0.5/0.8/1.0/1.25mm
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cablelinker
Model Number :
FC1101
Supply Ability :
5000 Piece / Pieces per Week
Packaging Details :
Standard Package carton box with polybag inside waterproof.
MOQ :
50 Piece/Pieces
Price :
Negotiable
Application :
Automobile
Product name :
FFC Car Airbag Flat Cable for RENAULT SCENIC II
Connector Type :
FFC Cable
Length :
Customizable
Conductor :
Gold-plated Copper, Tin-plated Copper, Copper
Sample :
Avaiable
Material :
Conductor and Insulator
Port :
Shenzhen
Delivery Time :
10-20 Days
Payment Terms :
T/T, L/C, Western Union, D/A, D/P
Description
Product Description

FFC Car Airbag Flat Cable for RENAULT SCENIC II Pitch 0.5/0.8/1.0/1.25mm 7Pin FFC Cable

Product Type FFC Car Airbag Flat Cable for RENAULT SCENIC II Pitch 0.5/0.8/1.0/1.25mm 7Pin FFC Cable
Conductor Gold-plated Copper, Tin-plated Copper, Copper
Materials of FFC Cable Conductor and Insulator
Insulators of FFC Cable PET and PET(HF)
Margin Width of FFC Cable Customized
Conductor Thickness of FFC Cable Customized
EMI Processingof FFC Cable Cat: Aluminum Foil, Silver Foil, Electic Conductivity Fabric, Copper Foil, Silvering paste, Copper net, Silver net, Magnetic Ring, etc.
Total Width of FFC Cable

PH*(N+1)2~15

The buyer confirms the specifications, there are 4 parameters:

1. The conductor pitch P is the distance between the centers of the two conductors (the most commonly used are 0.5mm, 1.0mm, 1.25mm, 2.54mm)

2. The number of PINs is the number of conductors in the line.

3, the total length of the line L, generally calculated in MM

4, the front and back of the line, cheat on the same side is positive, not on the same side is the opposite

Attachment: the meticulous point is the length of the reinforcing plate, the length of the gold fingers S1, S2, tin plating, gold plating, the total width W = (PIN number + 1) * pitch

2. Construction and Material:

Item

Composition: conductor

Texture: Material

Tinned soft copper foil, tin plating thickness: 0.4 + 0.2 / -0.1 (pure tin thickness: 0 ～ 0.2μm). Tinned copper, (Thickness of tin plating:

0.4 + 0.2 / -0.1 (Pure tin thickness: 0 ～ 0.2μm)

Size

Thickness × width = 0.035 × 0.3mm

Thickness × Width = 0.035 × 0.3mm

Insulation

Texture

Material: Polyester (adhesive layer: polyester)

Color: White

Reinforcing plate

Supporting Tape

Car 7 Pin Airbag FFC Flat Cable For RENAULT SCENIC II Pitch 0.5/0.8/1.0/1.25mmCar 7 Pin Airbag FFC Flat Cable For RENAULT SCENIC II Pitch 0.5/0.8/1.0/1.25mm
