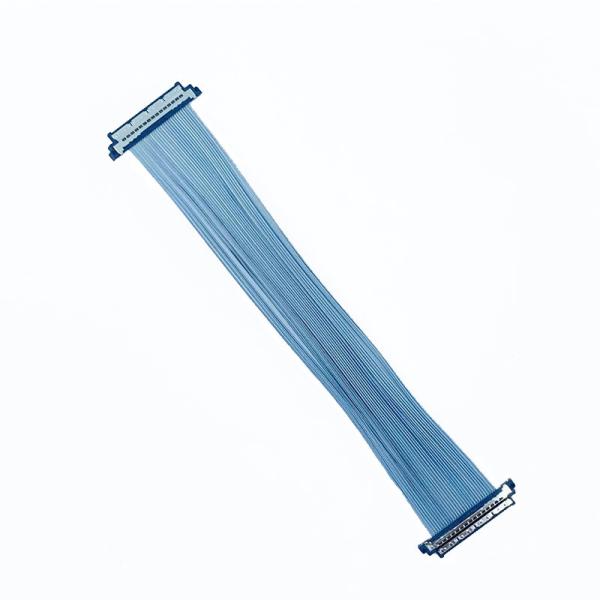

Fine Miniature lvds 30 pin connector cable KEL SSl20-30SB DI-SC221
Fine Miniature lvds 30 pin connector cable KEL SSl20-30SB DI-SC221
Specifications
Place of Origin :
Guangdong, China
Brand Name :
Cablelinker
Model Number :
CL
Supply Ability :
5000 Piece / Pieces per Week
Packaging Details :
Standard Package carton box with polybag inside waterproof.
MOQ :
100 Piece/Pieces
Price :
Negotiable
Application :
LCD display ,Automobile ,TV ,Computer and other electronic products
Item :
Kel Ssl20-30sb Miniature Coaxial Cable Assembly
Connector Brand :
AMP/MOLEX/JST/YH/HRS etc
Connector Pitch :
0.3-4.2mm
Jacket material :
PUR, TPE, PTFE, PVC
Wire spec :
28awg 30awg 32awg 34awg etc
Wire color :
Multiple colors , Customizable
Length :
Customizable
Quality demand :
multi-shielded parts ,Tin-plated, gold-plated
Sample :
Can be provided before mass production
Compliance :
ROHS
Port :
Shenzhen
Delivery Time :
10-20 Days
Payment Terms :
T/T, L/C, Western Union, D/A, D/P
Description

KEL SSl20-30SB 30pin Micro-Coax Cable DI-SC221 Fine Micro Coaxial Miniature Coaxial Cable Assembly

Our SSL Series of 0.5mm pitch, I.D.C. connectors provide support for ultra-fine coaxial cables (#40 AWG), and in this capacity, represent the first connector in the industry to feature batch assembly.
Application of KEL`s considerable expertise in the field of I.D.C. technology has made it possible to realize a product that, being lead-free, answers ever-intensifying calls for more environmentally-friendly solutions.
During the development process, considerable effort was placed on the perfecting of a series of connectors that - particularly in terms of data-transmission - would minimize the degree to which the beneficial characteristics of the coaxial cable were affected.
By encasing the board-side connector in a metallic shell, we achieved simultaneous improvements in noise resistance, component strength, and grounding performance.

・ Compact connector with a low profile of 1.4 mm(0.055") and a mating width of 6.08 mm(0.239").

・ For micro coaxial cable(#40 AWG).

・ IDC of contacts all together is adopted for improved connection reliability and more compact connectors.

・ Equipped with a metal shell, noise reduction and product strength are ensured.

・ Multiple ground terminals are provided for enhanced transmission characteristics and EMS protection.

・ Highly reliable design with effective contact displacement of 0.5mm(0.020").

Insulator material Glass-filled LCP (UL 94V-0), Black
Contact material Copper alloy
Contact plating Gold over Nickel
Shell material Copper alloy
Shell plating Tin copper over Nickel
IDC cover material [SSL20]Glass-filled LCP (UL94V-0), Off-white
Current rating 0.3A per contact
Contact resistance 100mΩ max.
Dielectric withstanding voltage 200V AC for 1 minute
Insulation resistance 100MΩ min. at 250V DC
Operating Temperature -40°C to +85°C
