1.3 Inch Oled Lcd Led Display Module For Arduino White / Blue Color QG-2864KSWLG01
1.3 Inch Oled Lcd Led Display Module For Arduino White / Blue Color QG-2864KSWLG01
1.3 Inch Oled Lcd Led Display Module For Arduino White / Blue Color QG-2864KSWLG01
1.3 Inch Oled Lcd Led Display Module For Arduino White / Blue Color QG-2864KSWLG01

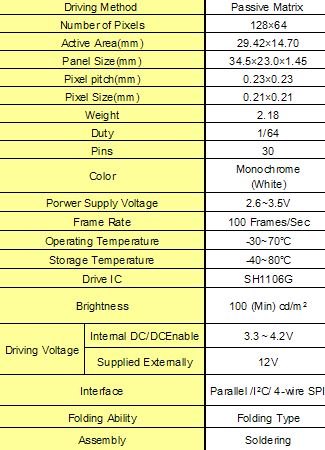

Specifications
Brand Name :
Allvision
Model Number :
QG-2864KSWLG01
Certification :
ROHS REACH
Place of Origin :
CHINA
Diagonal Screen Size :
1.30"
Color :
White or Blue
Number of Pixels :
128x64
Active Area(mm) :
29.42×14.70
Drive IC :
SH1106G
Interface :
Parallel /I2C/ 4-wire SPI
Price :
Negotiable
MOQ :
Negotiable
Description

QG-2864KSWLG01 1.30' OLED display module, White or Blue characters in black background , 128x 64 pixels resolution,​

Functions & features:

1.3 Inch Oled Lcd Led Display Module For Arduino White / Blue Color QG-2864KSWLG01

What's OLED?

OLED (Organic Light Emitting Display) refers to the phenomenon when several organic thin films are placed between an anode and a cathode, under a positive bias voltage, a bright light is emitted from the anode side via a process of carriers´ injection, transfer and recombination. OLED Character.

Why do we choose OLED

  • Low power consumption
  • Fast response
  • High Contrast
  • Free Viwwing Angle
  • Vivid Color
