Specifications
Brand Name :
Innolux
Model Number :
AT070TN07
Certification :
RoHS
Place of Origin :
China
MOQ :
500pcs
Payment Terms :
Western Union, T/T
Supply Ability :
300,000 Piece/Pieces per Year
Delivery Time :
15~18 working days
Packaging Details :
96pcs/carton
Screen Size :
7.0"
Resolution :
480X3(RGB)X234
Aspect Ratio :
16:9
Interface :
Analog(26 Pin FPC)
Luminance(nits) :
350
Contrast Ratio :
300
Price :
Negotiable
Description

AT070TN07 V.B 7.0 Inch 480X3(RGB)X234 TFT LCD Touch Screen With Analog(26 Pin FPC)

Application:

Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics

Screen Size 7.0"
Module Size(mm) 164.9 x 100.0 x 5.7
Active Area(mm) 154.08 x 86.58
Display Mode Transmissive
Resolution 480X3(RGB)X234
Viewing Angle (Tpy.)θT/θB/θL/θR 40/60/60/60
Viewing direction 6 O'Clock
NTSC 50%
Aspect Ratio 16:9
Luminance(nits) 350
Contrast Ratio 300
Response Time(ms) 35
Dot Pitch(mm) 0.107(W) X 0.370(H)
PPI ( Pixel per inch ) 74
Power Consumption (W) 1.227
Weight (g) 163

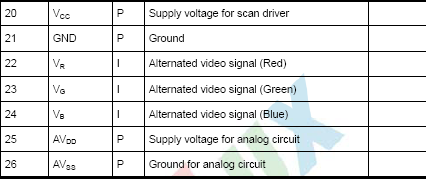

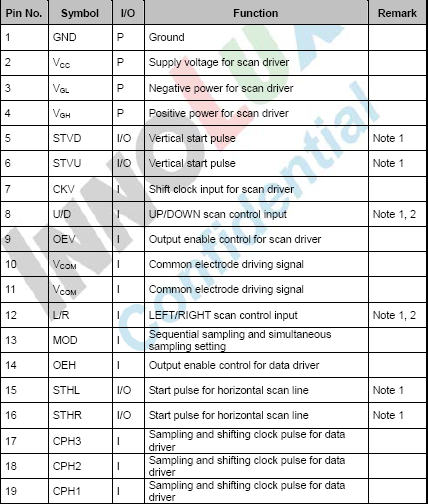

Interface Analog(26 Pin FPC)
Operation Temperature( ℃) -30~85
Storage Temperature (℃) -30~85
HTHH.(op) 60℃,90% RH
Remark Low power consumption
