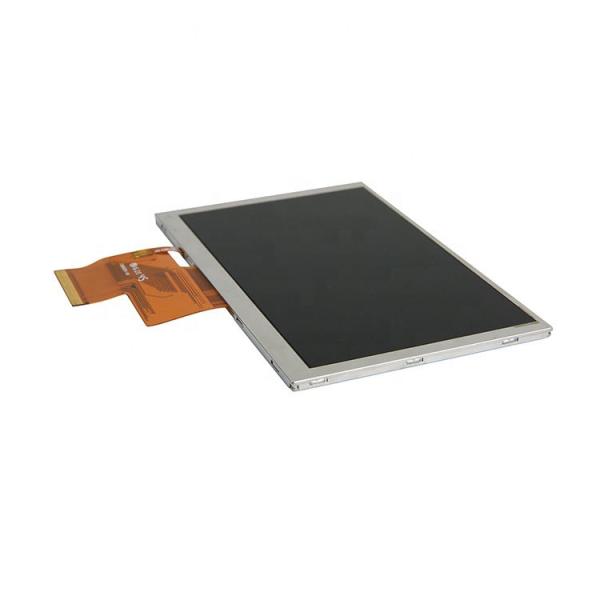

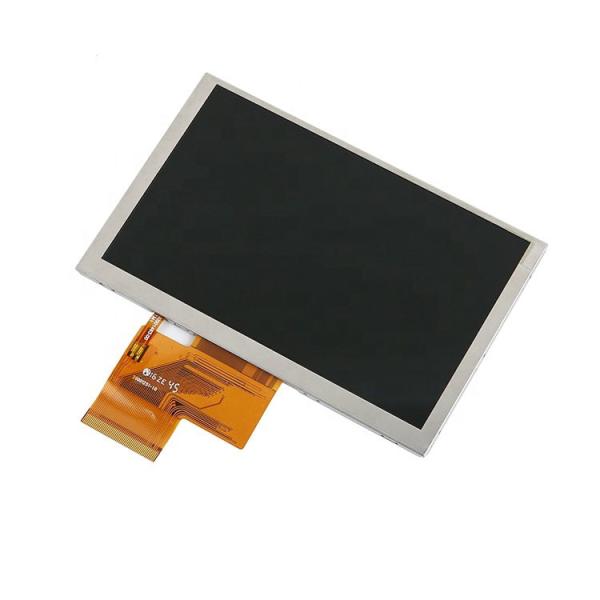

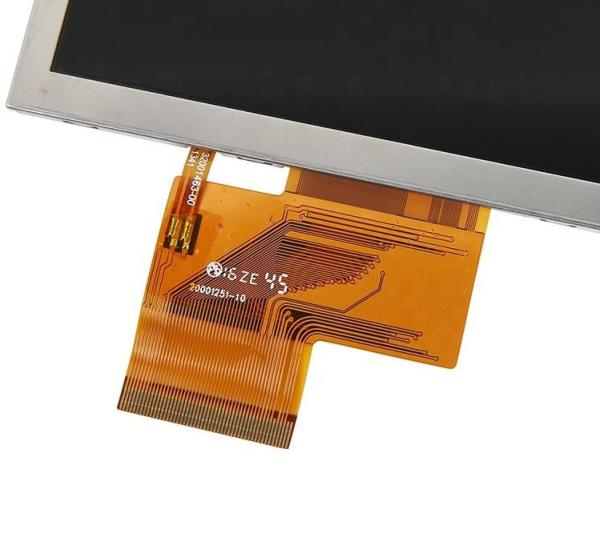

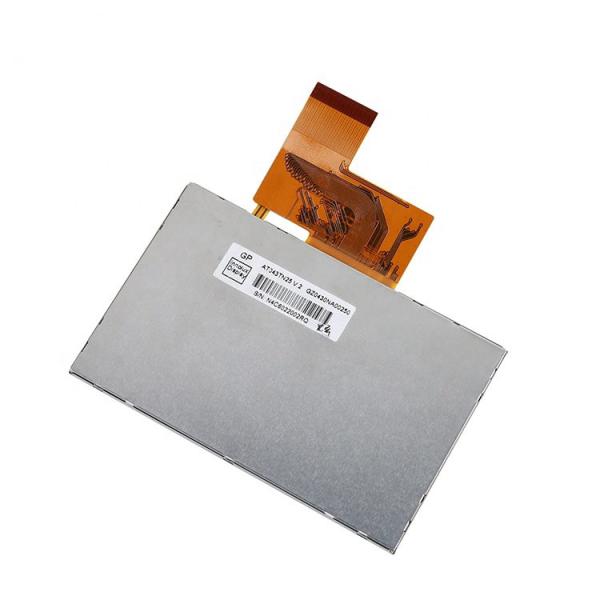

3.45 inch TFT LCD Module LQ035NC111 Innolux 320 *240 RGB display

Product Description

This technical specification applies to 3.45"color TFT-LCD panel. The 3.45" color TFT-LCD panel is designed for GPS, camcorder, digital camera application and other electronic products which require high quality flat panel displays. This module follows RoHS. Th 3.45-inch color screen is a larger size LCD with a larger display area and higher resolution. It uses TFT (Thin Film Transistor) liquid crystal technology, which has a high refresh rate and color performance capabilities. The TFT color screen can achieve fast response and more realistic color display. They are capable of displaying thousands of colors or millions of colors, providing richer and truer color representation. It has a large viewing angle range, allowing it to maintain a good display effect when viewed from different angles. In terms of brightness, color screens usually have adjustable backlight brightness to adapt to different environmental conditions and user needs. Here is the data of the 3.45-inch TFT LCD Display.

Item	STANDARD Value
LCD size	3.45 inch(Diagonal)
Driver element	a-Si TFT active matrix
Resolution	320 RGB x 240
Display mode	Normally white, Transmissive
Dot Size	73x 219 mm
Active area	70.08(H) x 52.56(V)(H) mm

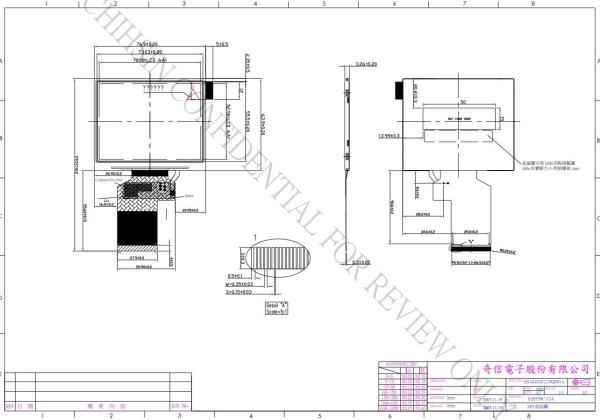

Outline dimension	76.9(W) x 63.9(H) x 3.3(D) mm
Input Interface	Digital 24-bit RGB/SERIAL RGB/CCIR656/CCIR601
Display Garmut	NTSC 60%
Input Interface	Digital 24-bit RGB/SERIAL RGB/CCIR656/CCIR601
Weight	40g
View Angle direction	6 o'clock
Top & Tst	-20˚C ~ +70˚C &-30˚C-~+80˚C

​​

Applications

3.5-inch TFT LCD screens are widely used in many fields, such as smartphones, portable ultrasound instruments, blood glucose monitors and other medical equipment, scientific instruments, test equipment and measurement tools, industrial control panels, etc. 3.5-inch TFT LCD screens are a common LCD technology with high resolution, fast response time and excellent display quality. Its modest size and wide range of applications make it ideal for many electronic devices.

​

Our Advantages

1. We specializing in the design, development and production of LCD display module full scheme for more than 10years. Each product undergoes professional design, debugging, production and quality inspection to ensure that the product meets shipping standards.
2. Broad selection of off the shelf products can be chosen and most products are kept in stock and can ship same day.
3. We also offer customed services for you, and can provide drawings and procedures for customers to confirm.
4. Our products offer sunlight readable options , and each display offers capacitive and resistive options
5. We provide reliable warranty service and the warranty preriod is one year.

​

Packaging & Shipping

Packaging : All the products are packed in right way to keep it safe. For small sizes of products we often use tray + carton, and for bigger sizes we use foam slot + carton. Also we can design packages to meet customers' requirements.
​

Shipping : For small quantity orders: We often ship by UPS Air-Express, or DHL/FEDEX/TNT/ EMS Express service. And For large quantity orders: we ship by buyer's cargo agent in China. Also, we can ship by air or sea transportation by our cargo agent.

Delivery Time:

Ready-made Sample: within 1 week

Custom Sample: 1~2 weeks

Mass production: 3-4 weeks
​

FAQ

1. Do you offer customized service?
-Yes, we offer OEM&ODM service and send us your requirements.

2. What payment methods do you accept?
-We accept via TT/West Union/Paypal.

3.Do you provide samples?
-Yes, we offer sample but you need to pay sample fee and delivery fee.

4. How long does it take to produce the product?
-It depends on the product you need. Different needs determine the production time

5. What's the process for placing an order?
-PO is placed by clients → PI is issued by Royal Display → Payment by clients → Lead time is confirmed by Royal Display → Shipping instrction by Clients → Delivery → Cargo tracking → Receipt of cargo
