STN Type 192x64 Resolution Graphic LCD Module Yellow + Green Color 19264 Dots
STN Type 192x64 Resolution Graphic LCD Module Yellow + Green Color 19264 Dots
STN Type 192x64 Resolution Graphic LCD Module Yellow + Green Color 19264 Dots
STN Type 192x64 Resolution Graphic LCD Module Yellow + Green Color 19264 Dots
Specifications
Brand Name :
ROYAL DISPLAY
Model Number :
RYP19264A
Certification :
SGS ROHS
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiable
Supply Ability :
10k/Month
Delivery Time :
25~28 Working Days
Packaging Details :
220pcs/CTN 11Kg L45*W36*H32CM
Payment Terms :
D/A, L/C, , D/P, T/T, Western Union, MoneyGram
Product Name :
Industrial Application 19264 Graphic COB LCD Module RYP19264A
Model No. :
RYP19264A
Dot Format :
192X64
LCD Type :
FSTN Postive
Viewing Angle :
6 O' clock
LED Backlight :
White Y/G
Controller :
S6B0108
Operating Temp :
-20º C~70º C
Description

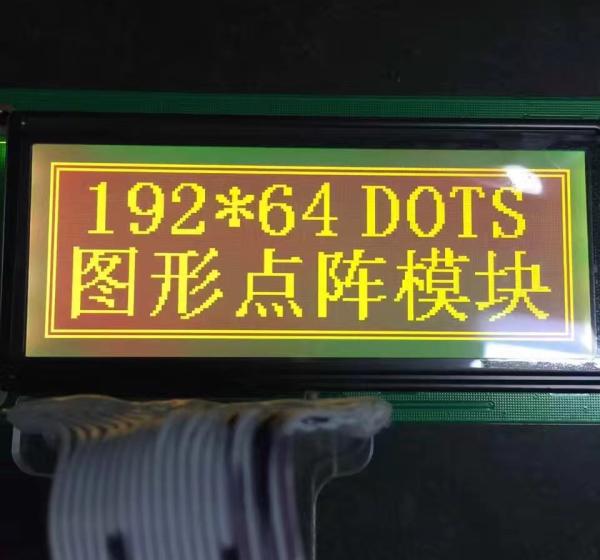

STN Type 192x64 resolution lcd display yellow+green color graphic 19264 dots LCD module

General Specifications

1. 192x64 dots
2. Parallel interface
3. DC/DC on board, 5V power supply
4. Ultra high contrast, YG & White LED backlight as option
5. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option

Display Specifications

Item Description
Product Name 192X64 dots Graphic LCD Module
Model No. RYP19264A

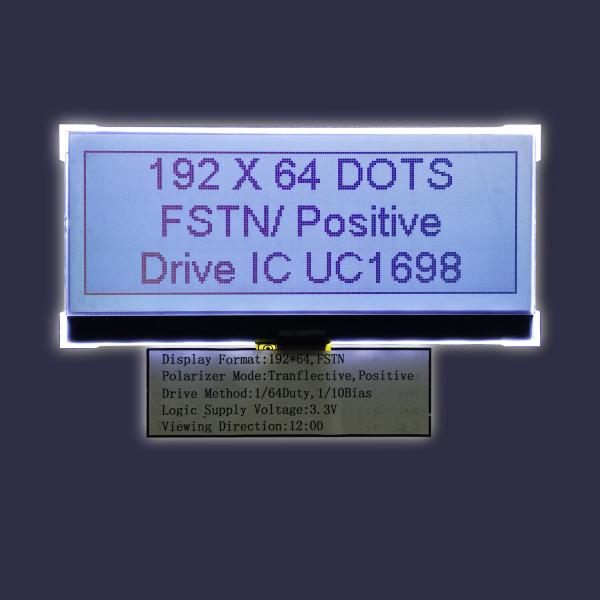

LCD Type FSTN-Positive, STN-Blue, STN-YG
Dot Format 192x 64
Outline Dimension(mm) 130X65
Assem. Size(mm) 130.0 x 53.0
Viewing Area(mm) 104.0 x 39.0
Pixel Size( mm) 0.468 x 0.468
Viewing Angle 6 O' clock
Backlight White or Y/G LED backlight
Driver IC S6B0108
Power supply 3V or 5V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C

STN Type 192x64 Resolution Graphic LCD Module Yellow + Green Color 19264 Dots

Typical Applications

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Features

Transmissive, Transflective and Reflective Mode

Wide Operation & Storage temperature range
Duty Ratio: up to 1:240

support gray scale display
FAQ

Q1. How can I get the samples?

A: If you need samples, we can make as per your request .You should pay the sample fee and freight. Sample lead time always be within 2-5 days.

Q2. How to order lcd?

A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.

1)Product information-Quantity, part number

2)Delivery time required.

3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.

4)Forwarder's contact details if you have any in China.

Q3. How long can I expect to get the sample?

A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.

Custom LCD/LCM are available

STN Type 192x64 Resolution Graphic LCD Module Yellow + Green Color 19264 Dots
