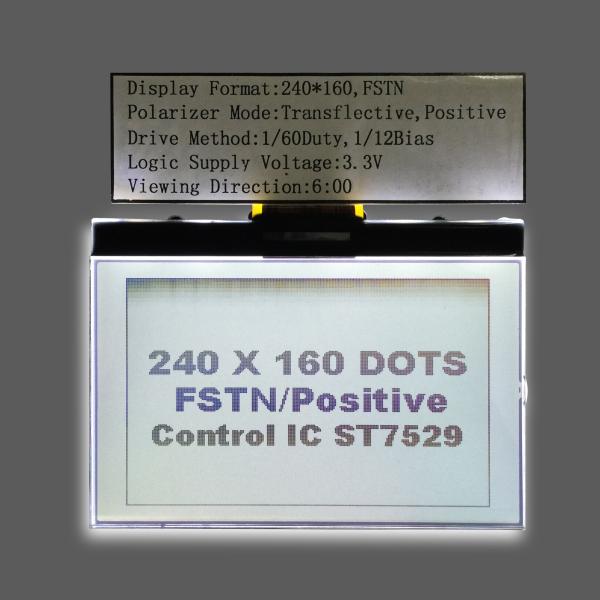

White Backlight Fstn 240 * 160 Dots Graphic LCD Module For Matrix Character LCD Display
White Backlight Fstn 240 * 160 Dots Graphic LCD Module For Matrix Character LCD Display
White Backlight Fstn 240 * 160 Dots Graphic LCD Module For Matrix Character LCD Display
White Backlight Fstn 240 * 160 Dots Graphic LCD Module For Matrix Character LCD Display
White Backlight Fstn 240 * 160 Dots Graphic LCD Module For Matrix Character LCD Display
White Backlight Fstn 240 * 160 Dots Graphic LCD Module For Matrix Character LCD Display
White Backlight Fstn 240 * 160 Dots Graphic LCD Module For Matrix Character LCD Display
White Backlight Fstn 240 * 160 Dots Graphic LCD Module For Matrix Character LCD Display
Specifications
Brand Name :
ROYAL DISPLAY
Model Number :
RYG240160M
Certification :
SGS ROHS
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, , L/C, Western Union, MoneyGram
Supply Ability :
300k/Month
Delivery Time :
25~28 Working Days
Packaging Details :
220pcs/CTN 11Kg L45*W36*H32CM
Product Name :
RYG240160M COG Graphic LCD Module FSTN
Model No. :
RYG240160M
Dot Format :
240X160
Viewing Angle :
6 O' clock
LED Backlight :
Red or Green
Operating Temp :
-20º C~70º C
LCD Type :
FSTN Postive
Driver :
UC1698u
Interface :
serial/parallel
Description

White Backlight FSTN 240 * 160 Dots Graphic Matrix Character LCD Display

Display Specifications

Item Description
Product Name 240x160 dots Graphic LCD Module
Model No. RYG240160M
Dot Format 240 x 160
Outline Dimension(mm) 60*51.7
Viewing Area(mm) 56*38.7
Pixel Size( mm) 0.196 x 0.196
Viewing Angle 6 O' clock
LCD Type FSTN-Positive, STN-Blue, STN-YG
Backlight Red or Green LED backlight
Driver IC UC1698u
Power supply 3.3V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C

Typical Applications

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Features

Transmissive, Transflective and Reflective Mode

Duty Ratio: up to 1:240

support gray scale display

Wide Operation & Storage temperature range
FAQ

Q1. How can I get the samples?

A: If you need samples, we can make as per your request .You should pay the sample fee and freight. Sample lead time always be within 2-5 days.

Q2. How to order lcd?

A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.

1)Product information-Quantity, part number

2)Delivery time required.

3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.

4)Forwarder's contact details if you have any in China.

Q3. How long can I expect to get the sample?

A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.

Q4. When can I get the datasheet?

A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately

Custom LCD/LCM are available
