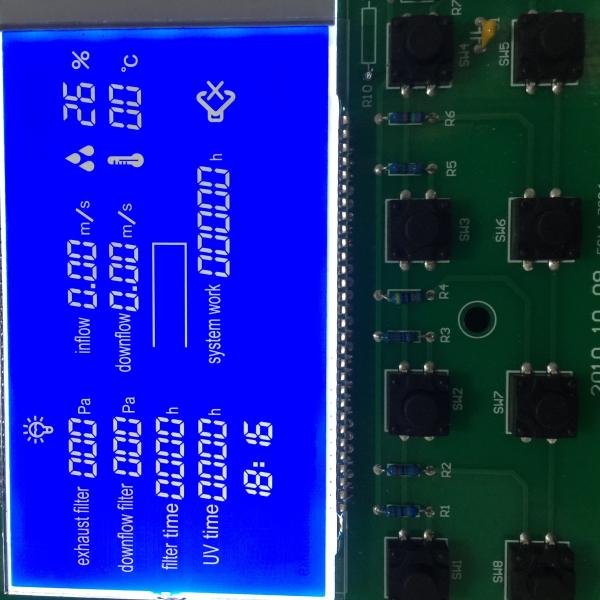

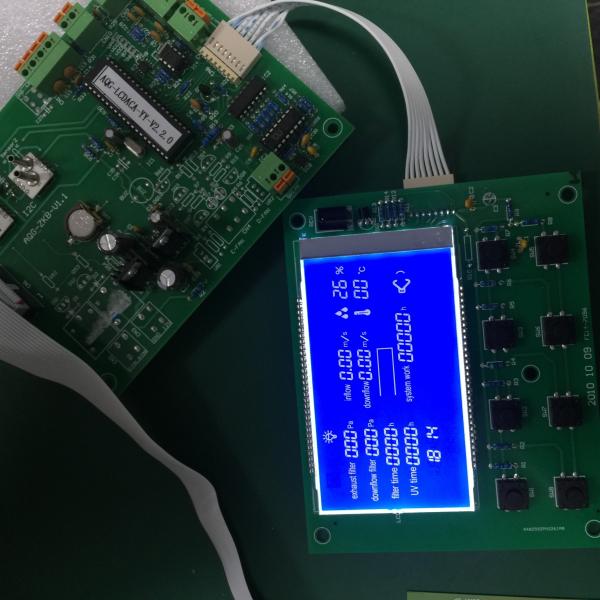

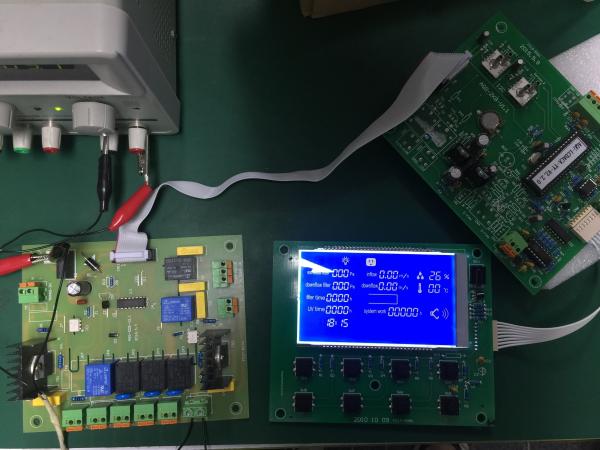

Transmissive Negative Stn Monochrome Lcd Module Cob Rohs Sgs Long Life
Transmissive Negative Stn Monochrome Lcd Module Cob Rohs Sgs Long Life
Transmissive Negative Stn Monochrome Lcd Module Cob Rohs Sgs Long Life
Transmissive Negative Stn Monochrome Lcd Module Cob Rohs Sgs Long Life
Transmissive Negative Stn Monochrome Lcd Module Cob Rohs Sgs Long Life
Transmissive Negative Stn Monochrome Lcd Module Cob Rohs Sgs Long Life
Specifications
Brand Name :
ROYAL DISPLAY
Model Number :
RYD2075BV01-A
Certification :
SGS ROHS
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, , L/C, Western Union, MoneyGram
Supply Ability :
10k/Month
Delivery Time :
25~28 Working Days
Packaging Details :
220pcs/CTN 11Kg L45*W36*H32CM, Cartons, Capboard, EPE, Blister Tray.
Product Name :
Graphic LCD 128X64dots STN Gray Blue Film LCD Display Module
Model No. :
RYD2075BV01-A
LCD Type :
FSTN-Positive, STN-Gray
Display Format :
128x64dots
Viewing Angle :
6 O' clock
Controller IC :
ST7565R
LED Backlight :
White Y/G
Operating Temp :
-20º C~70º C
Connector :
FPC
Sunlight Readable :
Yes
Backlight Current (Typ) :
45mA
Connection :
FPC-Soldering
Description

ROHS SGS Transmissive Negative STN Monochrome COB Lcd Screen Module

General Specifications

1. Display Format 128x64 dots
2. Ultra high contrast, YG & White LED backlight as option
3. STN-YG, STN-blue, STN-Gray, FSTN-Positive display results as option

4. Parallel interface
5. 5V power supply

Display Specifications

Item Description
Product Name 128x64dots Graphic LCD Module
Model No. RYG12864M
Dot Format(dot) 128x64
Outline Dimension(mm) 40.8x34.8
VA Size(mm) 37.7X25.1
AA Size( mm) 34.5x21.7
Viewing Angle 6 O' clock
LCD Mode STN-Blue
Backlight Blue
Driver IC ST7565R
Power supply 3V or 5V
Interface Parallel
Operating Temp -20º C~70º C
Storage Temp -30º C~80º C

Typical Applications

Clusters, Car Radios, Air conditioner, Home Automation, Industrial Instruments, etc
Features

Transmissive, Transflective and Reflective Mode

Wide Operation & Storage temperature range

Duty Ratio: up to 1:240

support gray scale display
FAQ

Q1. How can I get the samples?

A: If you need samples, we can make as per your request .You should pay the sample fee and freight. Sample lead time always be within 2-5 days.

Q2. How to order lcd?

A:Please send us your purchase order by Email, or ask us to send you one invoice. We need to know the following information for your order.

1)Product information-Quantity, part number

2)Delivery time required.

3)Shipping information-Company name, Street address, Phone & Fax number, Destination sea port.

4)Forwarder's contact details if you have any in China.

Q3. How long can I expect to get the sample?

A:The samples will be ready for delivery in 5~7days.The samples will be sent via express and arrive in 5~7 days.

Q4. When can I get the datasheet?

A: When we get your inquiry, you shall first tell us the part number you want, then we can send you the datasheet immediately

Custom LCD/LCM are available
