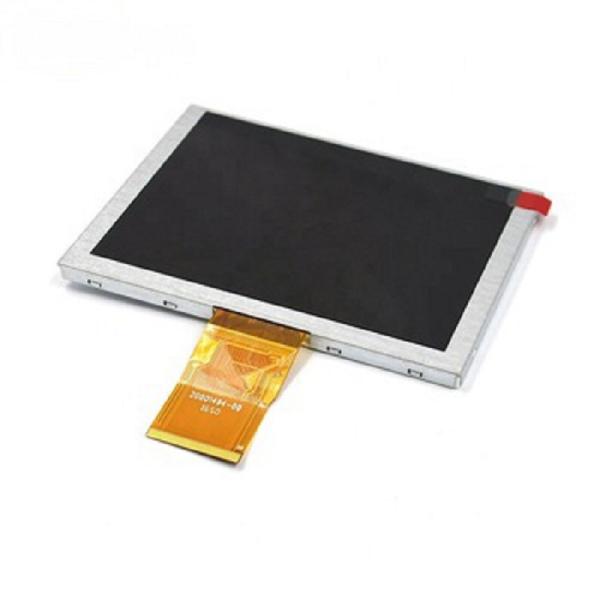

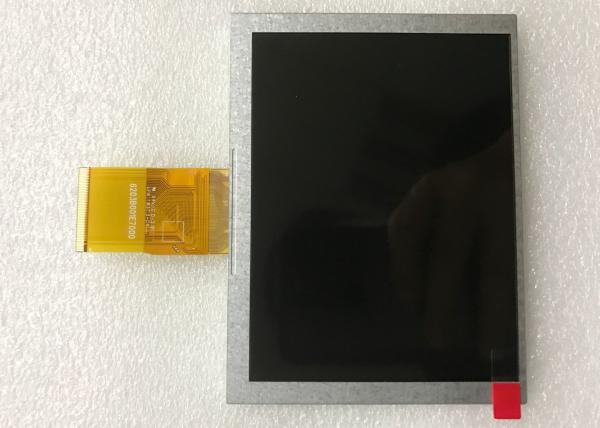

5inch Innolux LCD Display Module EJ050NA-01G ZJ050NA-08C AT050TN22V. 1
5inch Innolux LCD Display Module EJ050NA-01G ZJ050NA-08C AT050TN22V. 1
5inch Innolux LCD Display Module EJ050NA-01G ZJ050NA-08C AT050TN22V. 1
5inch Innolux LCD Display Module EJ050NA-01G ZJ050NA-08C AT050TN22V. 1
5inch Innolux LCD Display Module EJ050NA-01G ZJ050NA-08C AT050TN22V. 1
5inch Innolux LCD Display Module EJ050NA-01G ZJ050NA-08C AT050TN22V. 1
5inch Innolux LCD Display Module EJ050NA-01G ZJ050NA-08C AT050TN22V. 1
5inch Innolux LCD Display Module EJ050NA-01G ZJ050NA-08C AT050TN22V. 1
Specifications
Brand Name :
Innolux
Model Number :
Ej050na-01g
Certification :
Rohs,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
300K/M
Delivery Time :
15-20 Work Days
Packaging Details :
Cartons, Capboard, EPE, Blister Tray
Lcd Size :
5.0 Inch
Driver Element :
a-Si TFT Active Matrix
Resolution :
800X480
Display Mode :
Normally White, Transmissive
DOT Pitch :
0.045(W) ×0.135(H) mm
Active Area :
108.0(W) × 64.8(H) mm
Module Size :
120.7(W) × 76.3(H) × 3.1(D) mm
Color Arrangement :
RGB-Stripe
Description

5inch Innolux LCD Display Module Ej050na-01g Zj050na-08c At050tn22V. 1

Quick Detail Of 5 Inch Innolux TFT LCD Module
Ej050na- 01g is a TM (Transmissive) type color active matrix TFT (Thin Film Tran sistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is composed of a TFT-LCD module, a driver circuit and a back-light unit. The resolution of a 5.0" contains 800RGBx480 dots. The following table described the features of Ej050na-01g.

5 Inch Innolux Ej050na- 01g TFT LCD Display Description

Item Description
Model Name ZJ050NA-08C
Screen Size 5.0"
Surface Treatment Anti-Glare
Color arrangement RGB-stripe
Interface Digital
Backlight Power consumption 0.868W (Typ.)
Panel Power consumption 0.223W(Typ.)
Operation Temperature( ºC) -20º C~70ºC
Storage Temperature (ºC) -30º C~80ºC

5inch Innolux LCD Display Module EJ050NA-01G ZJ050NA-08C AT050TN22V. 1

TFT LCD Display One-stop Solution

(1) LCD panel cutting & etching.We have own cutting and etching factories and cut & etch the LCD panel for big brands.
(2) LCD panel&Driver IC. We are the direct distributor, we can guarantee supply.
(3) LCD module. Owning factories to do LCD module assembly, ISO9001, ISO14001 and TS16949 certificated.
(4) LCD module+Capacitive touch panel.we customize different capacitive touch panel base on customer’s request, 100% OEM available.
(5) LCD module+controller board. We have our own controller board company with 30 engineers, to provide different kinds of board solutions.
(6) Complete solution. We can also customize plastic frame to contain our display.

5inch Innolux LCD Display Module EJ050NA-01G ZJ050NA-08C AT050TN22V. 1

5 inch 600x480 Dots TFT LCD Service Advantages

1. Quality Control: Every LCD tested with special instruments or main boards before delivery to ensure working.

2. Packing: Packed in anti-static bags with foam box to ensure safety in transportation.

3. Payment Terms: T/T, Western Union,L/C, PayPal

4. Shipping Methods: Prompt delivery by UPS, EMS, DHL, TNT, or by air.

5. Service: Best after-sales service to ensure satisfaction from customers.

6. Warranty: Usually, product warranty for one year.

5inch Innolux LCD Display Module EJ050NA-01G ZJ050NA-08C AT050TN22V. 1

Innoux TFT LCD Display FAQ

Q: Is this Innolux original Ej050na-01g Zj050na-08c At050tn22V. 1?

A: Yes, it is 100% original Innolux lcd display.

Q: Can you provide drawings and related procedures?

A: We can provide drawings and procedures for customers to confirm.


Q: How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.

Q: How long is the warranty and service of the product?

A: Generally the warranty period is one year. It depends on different products.We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.

5inch Innolux LCD Display Module EJ050NA-01G ZJ050NA-08C AT050TN22V. 1
