3.3V Monochrome Transmissive/Transflective/Reflective Character Blue/Green/Gray Stn Character LCD Modules
3.3V Monochrome Transmissive/Transflective/Reflective Character Blue/Green/Gray Stn Character LCD Modules
3.3V Monochrome Transmissive/Transflective/Reflective Character Blue/Green/Gray Stn Character LCD Modules
3.3V Monochrome Transmissive/Transflective/Reflective Character Blue/Green/Gray Stn Character LCD Modules
3.3V Monochrome Transmissive/Transflective/Reflective Character Blue/Green/Gray Stn Character LCD Modules
3.3V Monochrome Transmissive/Transflective/Reflective Character Blue/Green/Gray Stn Character LCD Modules
Specifications
Brand Name :
ROYAL DISPLAY
Model Number :
Character LCD modules
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
500pcs
Price :
Negotiable
Supply Ability :
300k/Month
Delivery Time :
10-15 Working Days
Packaging Details :
Cartons, Capboard, EPE, Blister Tray
Structure :
Monochrome Stn Character LCD Modules
Number of Character :
8X2, 16X1, 16X2, 16X3, 16X4, 20X2, Customized
Display Type :
STN
Polarizer model :
Transflective, Transmissive, Reflective
Background :
Gray, Yellow-Green, Blue
Backlight :
White, Yellow-Green, Green, Red, RGB, Ect.
Viewing Direction :
6:00, 12:00, 3:00, 9:00, Customization
Connector :
Metal Pin, Rubber/Zebra, Heat Seal, FPC
Main Interface :
6800, 8080, I2c, Spi
Warranty :
12 Months
Product name :
2004a LCD Display Module,STN character graphic small LCD display 16x2 LCD module,MIni 1602 16X2 Character LCD Display Module
Item :
STN 16*2 1602 large character lcd display module with 6 o'clock angle,20x2 Character lcd display module,16*1 character lcd screen
Display type :
16 characters x 2 line,transmission,STN,refective,transflective according to you
Description

3.3V Monochrome Transmissive/Transflective/Reflective Character Blue/Green/Gray STN Character LCD Modules

Main Parameters of Character LCD Panel

Description 3.3V Monochromic Transmissive/Transflective/Reflective Character Blue/Green/Gray STN Character LCD Modules
Structure Graphic LCD modules COG(Chip On Glass) COB(Chip On Board)
Number of Characters 8x2, 16x1, 16x2, 16x3, 16x4, 20x2, 20x4, 40x2, 40x4, Customization
Display type VA(NBT/EBN/IBN),TN, HTN, STN, FSTN, FFSTN/DFSTN
Polarizer Transflective, Transmissive, Reflective
Background Gray, White, Yellow-Green, Blue, Black
Viewing direction 6:00, 12:00, 3:00, 9:00, Customization
Operating temperature 0 ºC to 50 ºC, -20 ºC to +70 ºC, -30 ºC to +80 ºC, -30 ºC to +85 ºC, Customization
Storage temperature -10 ºC to +60 ºC, -20 ºC to +70 ºC, -30 ºC to +80 ºC, -40 ºC to +90 ºC, Customization
Connector/Connection Metal PIN, Rubber/Zebra, Heat seal, Flat cable(FPC)
Main driver IC COG:ST7032I, NT7605, RW1067, ect.
COB:ST7066U, RW1067. RW1063 , ect.
Main Interface Parallel interface: 6800, 8080
Serial interface: SPI3, SPI4, I2C
Backlight Without, White, Yellow-Green, Green, Red, RGB, ect.
Quality control Strictly tested one by one to make sure all the goods best quality
Each item has been checked and in good condition before shipping
Warranty 12 Months
Samples Available
Advantage Competitive Price, Fast delivery, Excellent after-sales Service
Payment method T/T, Western Union
Shipment terms EX-WORKS Shenzhen/Hongkong
Place of Origin Shenzhen, China
Applications Household, Medical Treatment, Intelligent Control, Industry, Communication Equipment, Financial Equipment, ect.

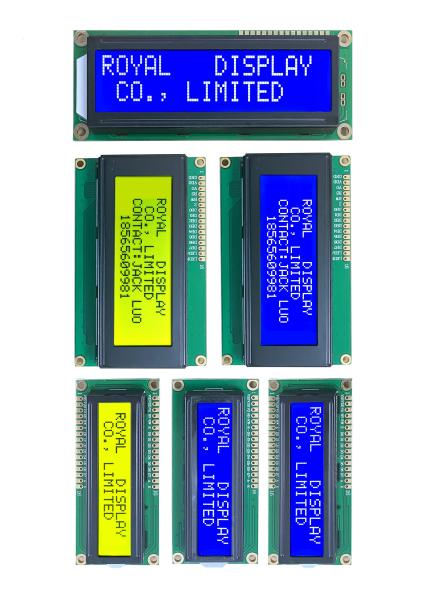

Various Character LCD panel
3.3V Monochrome Transmissive/Transflective/Reflective Character Blue/Green/Gray Stn Character LCD Modules3.3V Monochrome Transmissive/Transflective/Reflective Character Blue/Green/Gray Stn Character LCD Modules
Royal Display Strong Points

Complete production line Complete manufacturing process from ITO glass to the back-end, all are in-house
Fast response Quickly realize your customized ideas, and have a sample ready in short time
Low MOQ Depends on product
Stable supply 1~10 years supply period
Rich experience Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client
Extensive range Providing complete solution from Mono to Color, LCD module to Half-embedded, Optical bonding between display to cover glass as well as cover glass to touch screen, accessories for smart phone
Large production capacity Operation capacity 2KK monthly
Quality guarantee RoHS & REACH compliant
Management ISO 9001:2008, ISO 14001:2004

OUR SERVICE ADVANTAGES

1. Small order would be accepted.

2. Mass production lead time would be guaranteed.

3. Each order will have 0.2%-0.5% spare.

4. Even customers do not have a cooperation with us, we also can provide technical services.

5. If mass production has any quality problem, customer can return it.

3.3V Monochrome Transmissive/Transflective/Reflective Character Blue/Green/Gray Stn Character LCD Modules
