4 Digit LED Segment Display 1.2 Inch 200mcd Seven Segment LED Display
4 Digit LED Segment Display 1.2 Inch 200mcd Seven Segment LED Display
4 Digit LED Segment Display 1.2 Inch 200mcd Seven Segment LED Display
4 Digit LED Segment Display 1.2 Inch 200mcd Seven Segment LED Display
4 Digit LED Segment Display 1.2 Inch 200mcd Seven Segment LED Display
4 Digit LED Segment Display 1.2 Inch 200mcd Seven Segment LED Display
4 Digit LED Segment Display 1.2 Inch 200mcd Seven Segment LED Display
4 Digit LED Segment Display 1.2 Inch 200mcd Seven Segment LED Display
Specifications
Brand Name :
ROYAL DISPLAY
Model Number :
RY1204-S
Certification :
ROHS, ISO
Place of Origin :
China
MOQ :
1000pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,
Supply Ability :
1000K pieces/Month
Delivery Time :
15~25 working days
Packaging Details :
Cartons, Capboard, EPE, Blister Tray
Panel Size :
120*40.8*9.5mm
Forward Voltage :
1.8-2V
PCB Polarity :
Common Anode
Color :
Blue
Luminous Intensity :
180-200mcd
Surface Color   :
Black / Grey / White
Description

White 7 Segment Display 4 Digit 1.2inch Four Digit Seven Segment LED Display

Prodct Description

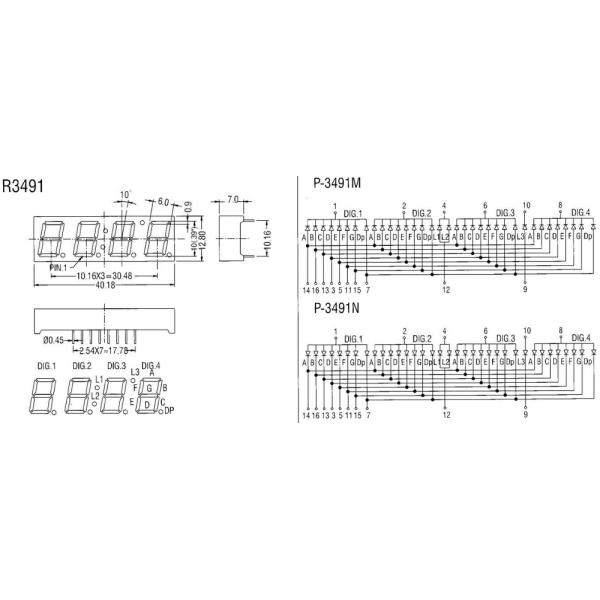

If the circuit cannot meet your need, pls advise me for other choices. Thank you.

4 Digit LED Segment Display 1.2 Inch 200mcd Seven Segment LED Display

Emitting Color

Test Condition

 Wavelength(nm) Forward Voltage(V) Luminous Intensity (mcd)
(λp) λ Typ Max Typ Max
Amber IF=10-15mA 600-605 30 1.9 2.0 90 100
Super green IF=10-15mA 565-575 30 1.9 2.0 48 55
Super red IF=10-15mA 620-625 20 1.8 2.0 110 130
Ultra red 1 IF=10-15mA 620-625 20 1.8 2.0 200 210
Ultra red 2 IF=10-15mA 620-625 20 1.8 2.0 300 350
High red IF=10-15mA 638-660 20 1.8 1.9 15 20
Yellow green IF=10-15mA 570-580 30 1.9 2.0 43 50
Yellow IF=10-15mA 580-600 35 1.9 2.0 70 80
Blue IF=10-15mA 465-475 40 2.95 3.0 150 200
Pure green IF=10-15mA 515-525 40 2.95 3.0 180 250
White IF=10-15mA - - 2.8 2.9 180 200

What Are The Advantages Of Segment Displays?

Although Segment displays are an older technology, it is still one of the most popular. After all, they cannot display all the colors of a TFT or OLED like what can be seen on a cell phone and tablet.

Why?Below are key reasons why people keep designing these LCD displays into new products.

Lowest Piece Price

The unit price of a segment display can range from less than $0.50/piece to $15/piece depending on quantity, size of glass, and other variables.

Lowest Tooling Fee

The tooling fee for a custom display is the lowest of all the technologies and allows the customer to receive a LCD that is manufactured to the exact dimensions requested, including custom icons and segments.

Focus LCDs offers a one-time NRE (Non-recurring engineering) or tooling fee. This includes all design, technical support, and samples. A PDF showing an overview of our tooling process can be found by clicking here: Custom LCD Flowchart

Low Power Consumption
Segment displays require less power than other display technology such as TFT, OLED, and UWVD. This makes these LCDs ideal for applications that are battery powered or solar powered. They require the lowest power to drive, an estimated 2uA per centimeter squared. Glass only displays (no backlight and no controller) require an estimated 10% of the power that is required for a LED backlight. In other words, a static display without a backlight will draw around 1mA; the same display with a LED backlight will demand from 10mA up to 25mA. Most displays can be driven at 3.3V or 5V since microprocessors can operate at both voltages. 3.3V is becoming more popular since two double ‘AA’ batteries can produce between 3.0V and 3.3V.

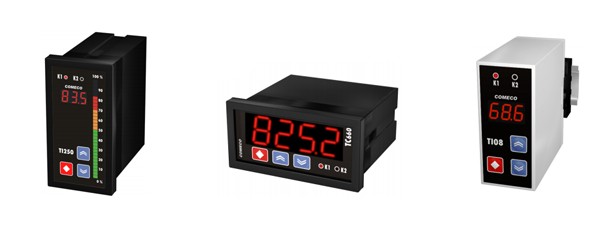

Application

4 Digit LED Segment Display 1.2 Inch 200mcd Seven Segment LED Display

Custom Service

We are also renowned for building custom LED Display that will meet your uniqueand specific need.

More importantly, we are committed to providing quality products at competitive prices and superior customer service.

4 Digit LED Segment Display 1.2 Inch 200mcd Seven Segment LED Display4 Digit LED Segment Display 1.2 Inch 200mcd Seven Segment LED Display4 Digit LED Segment Display 1.2 Inch 200mcd Seven Segment LED Display
