Full HD Computer Screen LCD Monitor Motorized Lifting Up Mechanism HDMI 24 Inch

Introduction:

LCD monitor display motorized lift is a electric lifting mechanism for office worktop computer LCD/LED monitor, it can suitable for all type size computer LCD monitor from 17~24 inch, normal display and wide screen display. It’s a hidden equipment for audio video conference system. With special display bracket for all in one monitor, our LCD lift would be complicated with all brands all in one monitor.

LCD/LED display could arising up to the tabletop if user would to present information by wireless controller. After used, LCD/LED display can be coming down into the under of table. It’s widely used in audio video conference system, military command, multimedia education and finance analysis.

Feature:

1, Constructed with stainless steel panel and steel case, adopt imported circuit board, synchronous motor,and gear & rack.

2, Stainless steel oxidation with drawing polishing surface process to make panel smooth and bright, ensure elegant and high grade appearance

3, Adopting superior gear appliance with double rack to ensure stable and reliable lifting for screen

4, Provide screen angel adjustable button, to offer prefect reading area for information presentation.

5, Brushed silver color are available for normal selection, aluminum gold color could be customized if required.

6, The size of LCD monitor lift can adjustable by your LCD monitor screen size, from 17~24 inch screen.

7, The power can be adjustable from 110 V ~ 240 V AC power, and also the plugs can suitable as your local requirement.

8, The tilting angle is adjustment as request from 0 ~ 20 degree, normally is 15 degree.

Specification:

Installation:

1, Cut out a suitable square holes on the conference tabletop;
2, Put down the LCD monitor lift case and fixed carefully;
3, Connected the power cables and the VGA connection cables(HDMI cables is available if requirement);
4, Connected the RS232 ports to another one(If request the hand and hand connection);
5, Testing and checking on after fixed and connection.

Cautious:

Before connect to the power for testing, please remove this screws on the lift case (RED ARROW).

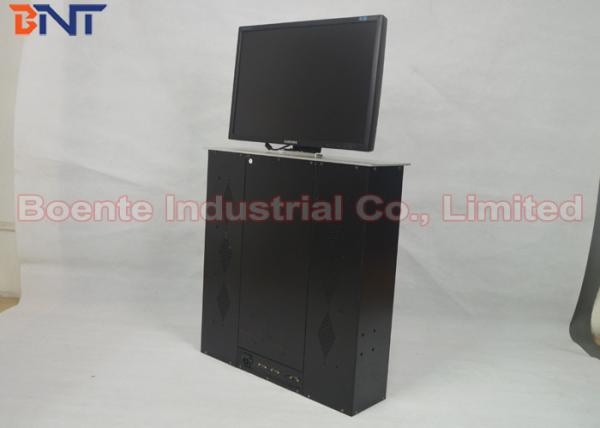

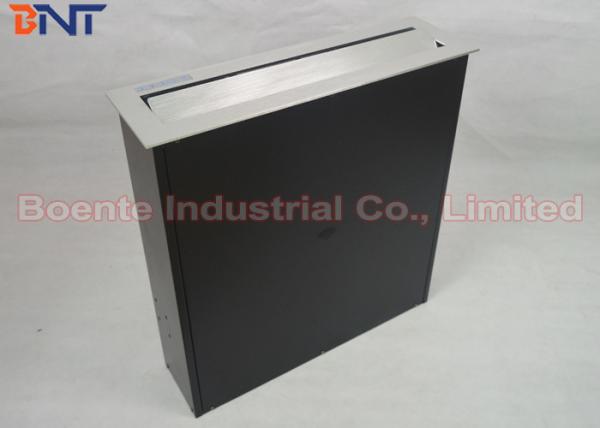

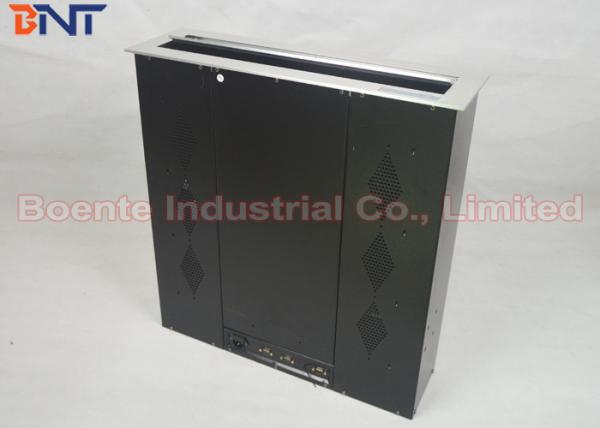

Product Pictures:
