Green Filter Laboratory Achromatic Objective Microscope Quadruple Nosepiece
Green Filter Laboratory Achromatic Objective Microscope Quadruple Nosepiece
Green Filter Laboratory Achromatic Objective Microscope Quadruple Nosepiece
Green Filter Laboratory Achromatic Objective Microscope Quadruple Nosepiece
Specifications
Model Number :
NCH-400M
Certification :
CE / ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
6000sets per month
Packaging Details :
Carton
Magnification :
40X-1000X
Eyepiece :
WF10×/ 18
Objective :
Achromatic 4×,10×,40×,100×
Moving Range :
Double Layers Mechanical 140×140mm/ 75×50mm
Viewing Head :
Monocular, Binocular or Trinocular
Focusing :
Range 28mm, Fine Division 0.002mm
Light :
Kohler Illumination Halogen 12V/20W
Model :
NCH-400M
Description

Green Filter Laboratory Biological Microscope Quadruple Nosepiece NCH-400M

Description

NCH-400M biological microscope is with high transmission optical system, combined base and arm design and wide range of accessories make it an ideal instrument for biology, bacteriology, histology, immunology and pharmacology.

Adopt wide Field Eyepiece WF10×/ 18 and 4×, 10×, 40×, 100× Objective, total optical magnification can achieve 40x - 1000x.

It's Aluminium Carrying Case Available for High Level Packing Requirement.

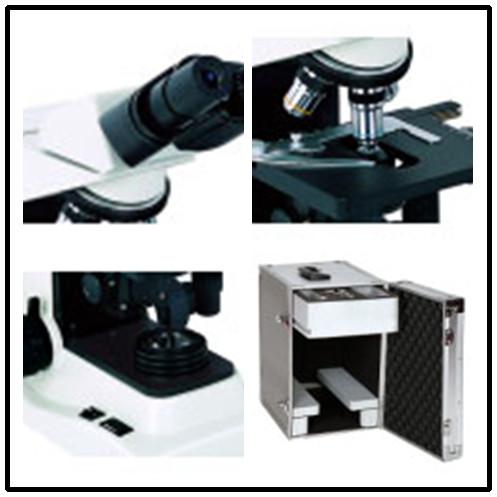

Features:

Green Filter Laboratory Achromatic Objective Microscope Quadruple Nosepiece Monocular, Binocular and Trinocular Head Available for Different Requirements
Green Filter Laboratory Achromatic Objective Microscope Quadruple Nosepiece Big Operating Space With Backward Nosepiece
Easier Comparing Test with Large Size Double Layer Mechanical Stage
Green Filter Laboratory Achromatic Objective Microscope Quadruple Nosepiece More Comfortable Operation with Low Position CA and FA Knob, Low Stage Control and Narrow Base
Even Illumination with Modern Design, Kohler Illumination and Aspheric Collector can be Adapted
Green Filter Laboratory Achromatic Objective Microscope Quadruple Nosepiece Aluminium Carrying Case Available for High Level Packing Requirement

Specification:

N-400M
Viewing Head Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable ●
Monocular Head, Inclined at 30°, 360° Rotatable ○
Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable ○
Eyepiece Wide Field Eyepiece WF10×/ 18 ●
Wide Field Eyepiece WF16×/ 11 ○
Objective Achromatic Objective 4×, 10×, 40×, 100× ●
Achromatic Objective 20×, 60× ○
Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100× ○
Nosepiece Backward Quadruple Nosepiece ●
Backward Quintuple Nosepiece ○
Stage Double Layers Mechanical Stage 140×140mm/ 75×50mm ●
Condenser NA 1.25 Abbe Condenser with lris Diaphragm and Filter, Rack & Pinion Adjustment ●
Focusing Coaxial Coarse & Fine Adjustment System, Range 28mm, Fine Division 0.002mm ●
Illumination S-LED Illumination, Brightness Adjustable ●
Halogen Lamp 6V/ 20W, Brightness Adjustable ○
Kohler Illumination ○
Polarization Set Simple Polarization Set ○
Phase Contrast Kit Simple Phase Contrast Kit ○
Sliding Phase Contrast Kit ○
Turret Phase Contrast Kit ○
Dark Field Attachment Dark Field Condenser (Dry) NA 0.9 ○
Dark Field Condenser (Oil) NA 1.25-1.36 ○
Epi-fluorescent Attachment 　 ○
Filter Green Filter ●
Blue Filter ○
Photo Attachment 　 ○
Video Attachment 　 ○

Note: ● Standard Outfit, ○ Optional
