14MP Button HDMI USB Digital Microscope Camera Support Multi - Color NCC-HDMI 200 Mouse
14MP Button HDMI USB Digital Microscope Camera Support Multi - Color NCC-HDMI 200 Mouse
14MP Button HDMI USB Digital Microscope Camera Support Multi - Color NCC-HDMI 200 Mouse
14MP Button HDMI USB Digital Microscope Camera Support Multi - Color NCC-HDMI 200 Mouse
Specifications
Model Number :
NCC-HDMI200
Place of Origin :
China
MOQ :
1set
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs per month
Packaging Details :
Carton
Sensor :
14megapixel Panasonic Sensor 1/2.3inch
Pixel Size :
1.43*1.43um
Frame Rate :
30fps
Definition :
Full HD
Digital Magnification :
5times Digital Zoom
Cross Cursor :
Support Multi-color, Size Adjustable
Description

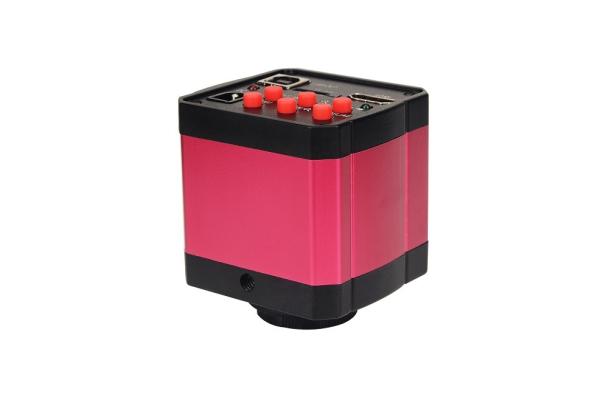

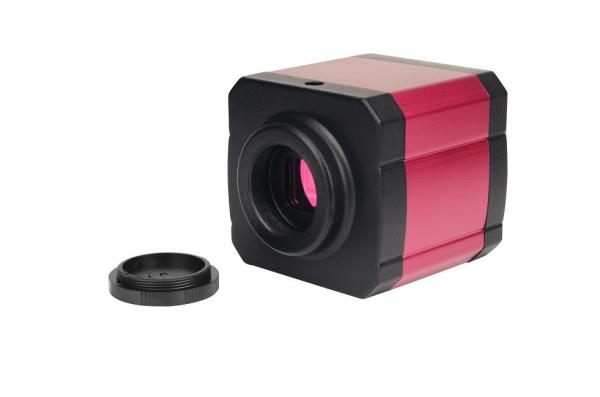

14MP Button HDMI Industrial Digital Microscope Camera NCC-HDMI200 Mouse USB2.0

Description

Adopted 1/2.3inch 14megapixel Panasonic Sensor, NCC-HDMI200 14MP Button HDMI Industrial Digital Microscope Camera is conveniet for your real time observation and also USB port for research, without connecting to a PC, it can be directly connected to monitors, projectors and other equipments with HDMI port for real-time image preview, image capture and show the high quality video to users. The camera comes with a TF card slot, captured images and videos can be saved in the TF card. It also can be connected to a PC via USB2.0 interface. With remote controller, users can overly 8 pairs crossing line on the images, adjust auto exposure and control camera exposure, RGB gain and etc., Images has no shaking, high definition, they are the best choice for image acquisition.

Features

  1. Up to 30fps high-definition image display, the image quality has been greatly improved.
  2. With remote controller, users can overly 8 pairs crossing line on the images, adjust auto exposure and control camera exposure, RGB gain and etc., Images has no shaking, high definition.
  3. On the basis of VGA camera, increased “Auto Exposure” function, the cameras will adjust the brightness according to environmental illumination to achieve the best preview effects.
  4. Captured images can be saved in the TF card.
  5. The camera also can be connected to a PC via USB interface for image analysis.

Main Technical Parameters

Image Sensor 14megapixel Panasonic Sensor 1/2.3inch
Effective Pixel 14megapixel
Pixel Size 1.43*1.43um
Frame Rate 30fps
Definition FULL HD
Housing Metal
Lens CS for Test, Custom Provide
White Balance Auto/Manual
Digital Magnification 5times Digital Zoom
Brightness Control Auto/Manual
Color R/G/B Adjustable
Freeze Support
OSD Support
Film and Record Support
Cross Cursor Support Multi-color, Size Adjustable
Transverse and Vertical Line Support Multi-color, 4pcs of Transverse/Vertical Lines, Moveable
SNR Support
TF Card Interface Max 32G
HDMI Interface Standard HDMI Output (Type A)
Lens C
USB Interface Standard USB2.0 Interface (Type B)

Color Option:
