262k 2.8 A Si Active Matrix ST7789S Arduino TFT LCD Display Module
262k 2.8 A Si Active Matrix ST7789S Arduino TFT LCD Display Module
262k 2.8 A Si Active Matrix ST7789S Arduino TFT LCD Display Module
262k 2.8 A Si Active Matrix ST7789S Arduino TFT LCD Display Module
262k 2.8 A Si Active Matrix ST7789S Arduino TFT LCD Display Module
262k 2.8 A Si Active Matrix ST7789S Arduino TFT LCD Display Module
262k 2.8 A Si Active Matrix ST7789S Arduino TFT LCD Display Module
262k 2.8 A Si Active Matrix ST7789S Arduino TFT LCD Display Module
262k 2.8 A Si Active Matrix ST7789S Arduino TFT LCD Display Module
262k 2.8 A Si Active Matrix ST7789S Arduino TFT LCD Display Module
Specifications
Brand Name :
Qihang
Model Number :
JXL-2.8TFT
Certification :
ROHS/CE
Place of Origin :
Shenzhen, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability :
300000 Per Month
Delivery Time :
10-15 Days
Packaging Details :
Tray , Standard carton
Display Size :
2.8 inch TFT, Transmissive
Color Depth: :
262k color
Outside Dimensions :
48.4 x 69.2 x 2.3 mm
Active Area :
43.2x57.6 mm
Viewing Angle :
6 o'clock
Number of dots :
240 x 3(RGB) x 320
Dot Pitch :
0.18x0.18 mm
Display Technology :
a-Si TFT active matrix
Name :
Active Matrix ST7789S Arduino TFT LCD Display Module
Warranty :
12months
Description

262k 2.8" A Si Active Matrix ST7789S Arduino TFT LCD Display Module

Quick Details

Name 262k 2.8" A Si Active Matrix ST7789S Arduino TFT LCD Display Module
Display Size 2.4 inch TFT
Display Mode
 Normally White, Transmissive LCD
Viewing Direction
6 O’CLOCK
Material TFT

Connection

 COG + FPC
Operating Temp: -10 ~ +60°C
Storage Temp: -20 ~ +70°C
Input Signals
 RGB Stripe

General Description

This main Module has a 2.8 inch diagonally measured active display area with 240 x 3(RGB) x 320 resolution. Each pixel is divided into Red, Green and Blue sub-pixels and dots which are arranged in vertical stripes.
LCD color is determined with 262,000 colors signal for each pixel. The JXL-2.8TFT has been designed to apply the interface method that enables low power, high speed, and high contrast. The JXL-2.8TFT is intended to support applications where thin thickness, wide viewing angle and low power are critical factors and graphic displays are important.

Packing & Delivery

Packing
1, For glass lcd panel we use poly foam, pearl cotton or customized plastic inner pad.
2, For lcd modules we use foam inner pad and single blister bag outer.
3, For outer packaging we use high-grade standard export carton.
4. Packing pieces is according to the goods size and shape.
5, We provide customized package service with low price.
Payment
1, We accept T/T, Western Union, Paypal, Bank Transfer, Cash, Money Gram, Escrow, etc.
2, Sample Order: 100% before drawing
Official Order: 30% deposit before production, 70% balance and freight before ship
3, Customers need to pay your side fee, customs tax and extra fees if you are in remote areas
4, We can declare your goods at low value to help you avoid taxes
Shipping
1, Air cargo: 5-10 days
Sea cargo: 15-35 days
International air express: DHL(recommend)/Fedex/UPS/TNT(3-5days)
EMS/China Post/HongKong Post(10-20days)
2, We'll ship the goods within 2 days after received your payment
3, We'll send you the tracking number the next day after the goods are shipped
4, After make shipment, we'll also follow your goods, if you not receive box on time, please contact us immediately, we'll assist to get the box smoothly

Sample Policy

Contact us for information regarding our sample policy.

Product Application

We provide a verity of LCD display screen module according to customers' various requests, TFT LCD Screen Module, Graphic LCD Display Module, Character LCD Display Module, Segment LCD Module, OLED Display Module, LCD Display Led Backlight, LCD Display Led Backlight, Touch Panel, Smart Screen Module.

1. We provide a verity of lcd panel and lcd module, Including TN LCD, HTN, STN, FSTN, VA LCD, including COB and COG IC connection.

2. Character Module series for 16x1, 16x2, 16x4, 20x1, 20x2 characters

3. Graphic Module series for 96x16 dots,122x32 dots,128x32 dots, 128x64 dots, 160x32dots, 160x128 dots, 160x160 dots, 192x32 dots, 192x64 dots, 160x132 dots, 240x128 dots, 320x240 dots series.

Advantage

1. LCD & LCM Display: Design, Manufacturing LCD & LCM (TN, STN, CSTN, TFT); OEM Service for COG, TAB & COB LCD Modules.
2. Guarantee: In order to ensure our products' quality, each process has been aranged QC. And there are many advanced machines introduced to check the products quality. The goods will have a ramdom test before delivery. One year for warranty under normal use.

Product replacement and warranty

If you have any prodcut quality problem, you can send it back to us with the original condition,we will repair or exchange new one for you.
If you have any using problem of the products which buy from Qihang, please feedback to us first, and we will discuss the issue with you. Via our technical support, we can dig out your using problem via our technical support in most of cases.
Lost Products: If products get lost in delivery, or you still do not get your item for a long time, please contact our customer service timely. We will deal with this ASAP. Please do not deal with it all by yourself, we want you communicate with us. Usually, we will provide tracking number and tracking link timely. If products get lost on the way and we get confirm from couriers, we will arrange redelivery for your products. If you want ship it through express, then you need to pay express shipping fee.

Technical Service

If you have technical problem with the product you received from us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.

FAQ

Q1: Are you manufactory or trade company?
A1:We are professional manufactory, which specializes in TN, HTN, FSTN, STN monochrome LCD,LCM,COB,COG modules more than 10 years in ShenZhen ! Our advanced full set equipments make sure good quality and competitive price!

Q2. What's your best price of your products?
A2: We will quote you best price according to your need, such as quantity and type, so please let us know the details, we will feedback to you with best price and lead time.

Q3. What's your MOQ?
A3: Small quantity is OK, customer want to test the quality based with small quantity, and sample order is welcomed.

Q4. What's the delivery time?
A4: For samples order, 2-3weeks will be enough, for bulk purchase , need about 4-6weeks ,we will send our products to you ASAP.

Q5. What's your payment term?
A5: We have T/T ,L/C,West Union,etc.

Q6. What about the warranty?
A6: 1 year warranty , using in right ways.

Note

*1) Liquid Crystal driving voltage.
Due to the characteristics of LC Material, this voltage vary with environmental temperature.
*2) Temp.>60℃, Absolute humidity shall be less than 90%RH at 60℃
*3) Temp.≤60℃, 90%RH MAX.

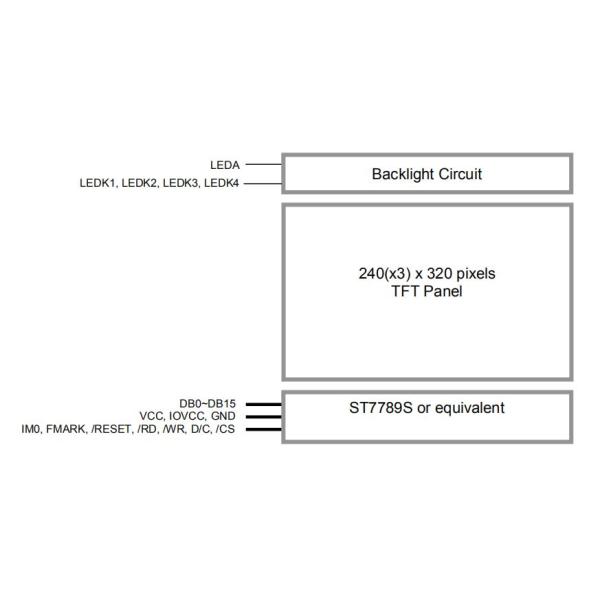

Block Diagram

262k 2.8
