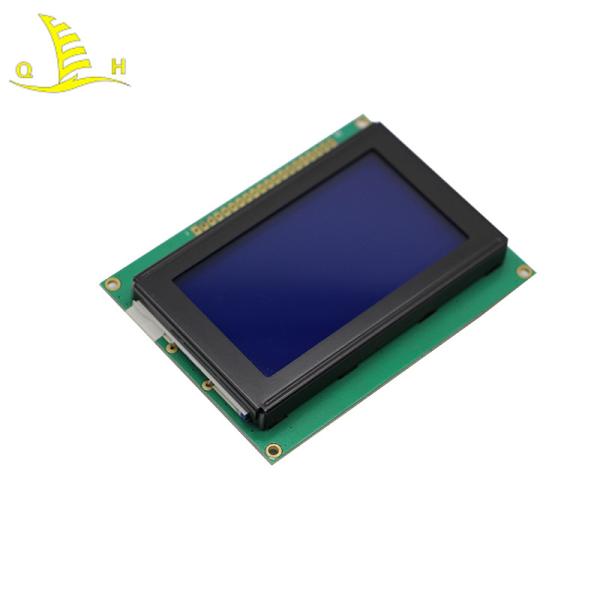

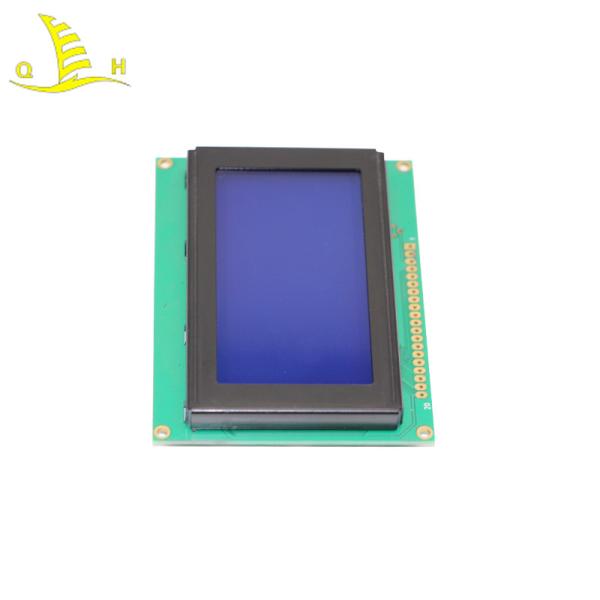

Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module
Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module
Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module
Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module
Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module
Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module
Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module
Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module
Specifications
Brand Name :
Qihang
Model Number :
JXL-12864-2C
Certification :
ROHS/CE
Place of Origin :
Shenzhen, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability :
50000 Per Month
Delivery Time :
15-18 Days
Packaging Details :
Tray , Standard carton
Name :
Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module
Display type :
Dot Matrix LCM
Material :
HTN LCD panel
Polarizer Type :
Transflective
Display mode :
Positive
Dimension :
93.0×70.0×14.0(mm)
Viewing Area :
70.6*38.6(mm)
Backlight :
White LED Light
Operating Temp: :
-25℃ to +70℃
Storage Temp: :
-30℃ to +80℃
Description

Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module

Details

Name LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module

Applicaion

Industrial control lcd display

Dimension

93.0×70.0×14.0 mm

Operating voltage

5.0V

V.A.

70.6*38.6 mm

Viewing angle

6 o'clock

LCD mode

STN

Display mode

Transflective ; Positve

Conecting mode

Metal pin or rubber or other

STN film

Green-yellow film

Voltage driving

Dynamic or static

DOTS

128*64

Operating voltage

-25℃-70℃

Storage voltage

-30℃-80℃

Package

COB

OEM/ODM

Accecpted

System design

Lcd module related system software and hardware design accepted

Warranty

12 moths free, payed warranty lifttime

Backlight

LED (Green)

LCD Module type

Metering Module

Sample lead time

3-7 working days

Customize lead time

15-30 working days

Packaging

One module in a bag, bags in small carton foam protecting, small carton in big carton

Cetification

ISO,SGS

Packaging & Delivery

Lead Time

Quantity(Pieces)

1 - 5

6 - 100

>100

Est. Time(days)

7

15

To be negotiated

Product Application

Telecommunication Devices

Telephone,interphone,watch,tablet PC,radio,etc

Consumer Products

Camera,DVD player,toy, Cell Phone,game player,etc

Technical Equipment

Elevator controller,Industrial machine,etc

Office Automation

Printer,scanner,attendance machine,fax machine,etc

Home Appliances

Air-condition display,refrigerator,electric cooker,video doorbell,etc

Automobile

GPS,video player,speedometer,audio broadcast,etc

IT Products

Camera,handheld digital video,projector,media play,tablet PC,etc

Medical Equipment

Ultrasound machine,therapeutic equipment Blood pressure meter,etc

LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module

Drawing

Customize HTN LCD 128X64 Blue Backlight Dynamic LCM Dot Matrix LCD Module

FAQ

1. Q: How can I get the samples? Standard sample and Custom.
A: Custom sample : Send inquiry → Offer quotation →Confirm quotation & pay tooling charge → Provide drawing →

confirm drawing → make tooling & samples → Samples finished → Delivery via freight or sea collect

2.Q: How long can I expect to get the sample?
A: Standard sample: 3 work days after confirming the order.
Custom sample: according to the draw base on 5-20 days

3.Q: Can you design the LCD in accordance with our demand?
A: Yes,.We will give you the best tooling charge.

4. Q:. What is the warranty?
A: One year

5.Q:How to place orders ?
A:If you confirm samples ok, Please send us your purchase order by Email or Fax , Then we will send you an Invoice

for deposit payment. We need to know the following information of your order.
1)Product information-Quantity,part number
2)Delivery time required.
3)Shipping information-Company name, Street address,Phone&Fax number,Destination sea port.

4)Forwarder's contact details if you have any in China.
