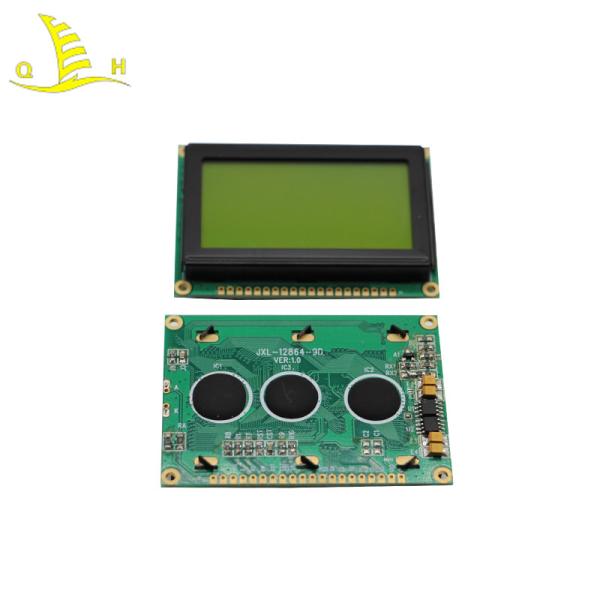

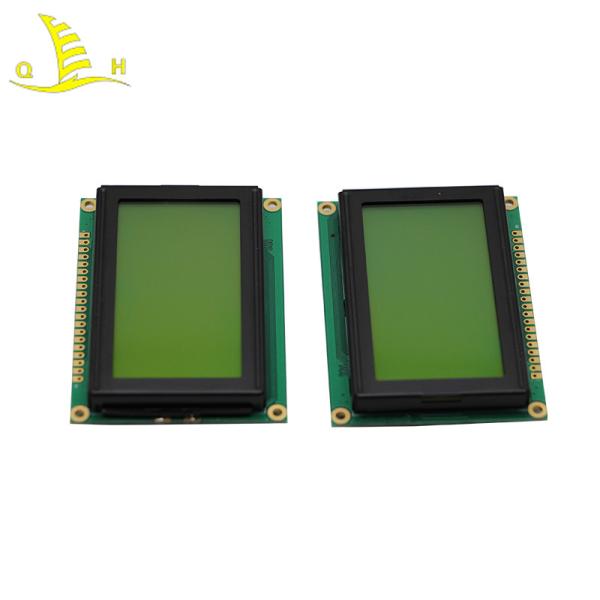

128 64 TN STN FSTN COB Alphanumeric LCD Display Module

12864 LCD Module feature

Jxl-12864-9D is a graphic dot matrix liquid crystal display module , which is mainly driven by row(NT7107C / NT7108C),

column driver (NT7107C / NT7108C) and 128×64 full dot matrix LCD.
Main technical parameters and performance:
1. power supply (VDD) : 5.0V/ 3.0V / 3.3V

2. working current: about 1.3mA (no backlight 4, no negative pressure) 4mA (no backlight, with negative pressure)

bottom backlight current is less than 200mA (5.6Ω current limit Resistance)
3. display content: 128×64 dot matrix

4. Operating temperature :-20℃ ~ +70℃, storage temperature :-30℃ ~ +80℃

5. Seven instructions
6. with CPU interface using 8-bit data bus parallel input and output and 6 control lines
7. DUTY :1/64

Product Details

Name

128 64 TN STN FSTN COB Alphanumeric LCD Display Module

Display Content

128*64 DOTS

Operating Voltage

5V

Driving Method

According to your request

Viewing Angle

6 o'clock

Front Polarizer

Transmissive, Adhesive

Rear Polarizer

Reflective, Adhesive

View Area

59.0x32.0 mm

Outside Dimensions

74.9x54.6x9.0 mm

Voltage Driving

Dynamic or static

Connector

20 Pin or according to your request

Operate Temperature

-20℃~+70℃

Storage Temperature

-30℃~+80℃

IC

NT7107C / NT7108C

Drive Method

1/64Duty, 1/9 Bias, VOP 10.5V

System Design

Lcd module related system software and hardware design accepted

Warranty

12 Month free, payed warranty lifttime

Backlight

Yellow - Green LED backlight

LCD Module Type

Analyser Module

Sample Lead Time

3-7 working days

Customize Lead Time

15-30 working days

Packaging

One module in a bag, bags in small carton foam protecting, small carton in big carton

Cetification

ISO, SGS, CE, Rohs

Packaging & Delivery

Lead Time

Quantity(Pieces)

1 - 15

16 - 100

>100

Est. Time(days)

7

15

To be negotiated

Product Application

Security Industry, Instrumentation, Industrial Control, Medical Equipment, Financial Industry, Consumer Electronics, Vehicle Instrumentation, Home Appliances Industry, Communications Products, Electrical Industry
