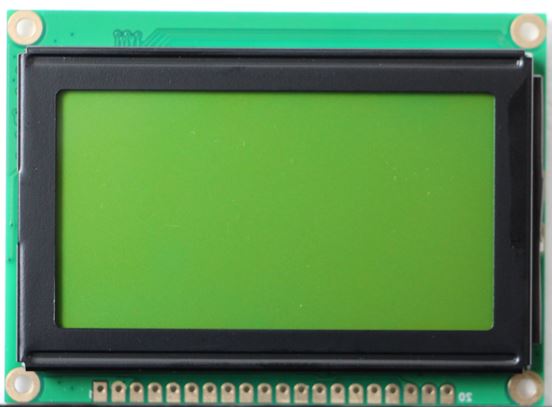

STN 128 64 Transflective Positive Dots Matrix LCD Display Module
STN 128 64 Transflective Positive Dots Matrix LCD Display Module
STN 128 64 Transflective Positive Dots Matrix LCD Display Module
STN 128 64 Transflective Positive Dots Matrix LCD Display Module
STN 128 64 Transflective Positive Dots Matrix LCD Display Module
STN 128 64 Transflective Positive Dots Matrix LCD Display Module
STN 128 64 Transflective Positive Dots Matrix LCD Display Module
STN 128 64 Transflective Positive Dots Matrix LCD Display Module
Specifications
Brand Name :
Qihang
Model Number :
JXL-12864-7C
Certification :
ROHS/CE
Place of Origin :
Shenzhen, China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram, paypal
Supply Ability :
100,000 Per Month
Delivery Time :
20-25 Work Days
Packaging Details :
Tray , Standard carton
Name :
STN 128 64 Transflective Positive Dots Matrix LCD Display Module
LCD Module :
STN (Y-G)
Display Mode :
Transflective / Positive
Viewing Direction :
6:00 O'clock
Drive IC :
NT7107C
Drive Method :
1/64Duty
Dot Size (W*H) :
0.28x*0.35(mm)
Dot Pitch (W*H) :
0.39*0.32(mm)
Lead time :
3 days for present model, 15days for customize
MOQ :
1piece
Description

STN 128 64 Transflective Positive Dots Matrix LCD Display Module

Product Details

Name STN 128 64 Transflective Positive Dots Matrix LCD Display Module
Place of Origin: Shenzhen, Guangdong, China
Display Content
128*64 DOTS
Operating Voltage 5V
Driving Method According to your request
Viewing Angle 6 o'clock
Display Positive
Polarizer Transflective
View Area 43.5(H)*29.0(V) (mm)
Outside Dimensions 54.0(H)*50.0(V)*9.9(D)(mm)
Voltage Driving Dynamic or static
Connector 20 Pin or according to your request
Operating Temperature -20℃-55℃
Storage Temperature -30℃-70℃
Package COB
Drive Method 1/64Duty, 1/9 Bias, VOP 9.0V
System Design Lcd module related system software and hardware design accepted
Warranty 12 Month free, payed warranty lifttime
Backlight

Yellow - Green LED back light
LCD Module Type Meter Module
Sample Lead Time 3-7 working days
Customize Lead Time 15-30 working days
Packaging One module in a bag, bags in small carton foam protecting, small carton in big carton
Cetification ISO,SGS

Packaging & Shipping

We usually ship goods By DHL, UPS, EMS, Singpost airmail, and HongKong Airmail.
DHL: 3-5 days
UPS: 5-7 days
EMS: 10-15 working days
Chinapost/HongKong Airmail: 7- 25 working days. At most 45 days.
If you have not received the goods during the normal time, please contact us for checking the package status timely online or by email.

Technical Service

If you have technical problem with the product you received from us, please contact us online or by email
Remote help service: If your problem needs to be solved by remote help by our engineer, please download the teamviewer software, install it on your computer, then give us ID and password for remote help.

Product Application

The product is monochrome dots matrix lcd display,which widely used in industrial meter,medical device,financial device and household.

STN 128 64 Transflective Positive Dots Matrix LCD Display Module

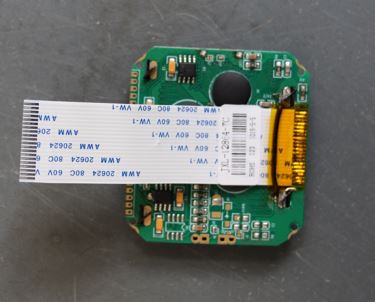

Product Show

STN 128 64 Transflective Positive Dots Matrix LCD Display Module
STN 128 64 Transflective Positive Dots Matrix LCD Display Module
STN 128 64 Transflective Positive Dots Matrix LCD Display Module

FAQ

1.Long Term Continuity Supply Warranty
We understand you probably worry whether we still offer the display after your long development time. Qihang gives the promise to
every customer to every product we sell on this web store. We promise the long terms continuity supply and would never end
supply.Some controller IC may stop the production,we’ll try our efforts to find the completely compatible ones.If the equivalent
is unavailable, we’ll make the new tooling and use the most similar IC as replacement.So you don't have to worry even your
research time is very long.


2. What is covered under warranty and for how long?
All products are covered under our limited warranty, which provides all products are free of functional defects for a period of
one year from the date of shipment and all products are free of visual defects and missing parts for a period of 30 days from the
date of shipment.If a product was damaged during shipping or the order is incorrect, you must notify us within 2 days of receipt.

3. What is not covered?
Warranty is void and no repair or replacement is granted under the following conditions:
3-1. Evidence of mechanical stress to parts including but not limited to.
3-2. Damaged or broken glass or touch screen.
3-3. Damaged conductors/components.
3-4. Damaged polarizer.
3-5. Damaged mounting holes.
3-6. Parts tamper ed with by grinding, engraving, drilling, cutting or applying coatings of any kind.
3-7. Addition or removal of components.
3-8. Evidence of damage caused by applying incorrect voltage.
3-9. Evidence of damage caused by operating outside of specified temperature range.
3-10. Evidence of damage caused by electrostatic discharge (ESD).

4. What if I have a defective product under warranty?
We will, at our option, either (a) repair the product using new or refurbished parts, or (b) replace the product with a new or
refurbished product."Refurbished" means a component that has been returned to its original specifications. We do not give refunds,
credit memos.

5. How do I make a warranty claim?
For warranty service, you must begin by requesting a Return Material Authorization number (RMA) from our sales.
