4.5 inch 480*854 IPS 300cd/m² RGB Interface LCD display screen
4.5 inch 480*854 IPS 300cd/m² RGB Interface LCD display screen
4.5 inch 480*854 IPS 300cd/m² RGB Interface LCD display screen
4.5 inch 480*854 IPS 300cd/m² RGB Interface LCD display screen
4.5 inch 480*854 IPS 300cd/m² RGB Interface LCD display screen
4.5 inch 480*854 IPS 300cd/m² RGB Interface LCD display screen
Specifications
Brand Name :
TXWEI
Model Number :
TXW450024S0
Place of Origin :
Guangdong,China
Certification :
CE ROHS FCC
MOQ :
negotiate
Price :
negotiate
Packaging Details :
cardboard
Delivery Time :
16
Payment Terms :
L/C TT D/P
Supply Ability :
10000pcs
Pixel arrangement :
RGB Stripe
Lumens degrees :
300Cd/m²
Drive element :
TFT Active Matrix
Number of pixels :
480*854
LCD Type :
Normally Black
Active area :
56.04(H) * 98.64(V)
size :
4.5
Description

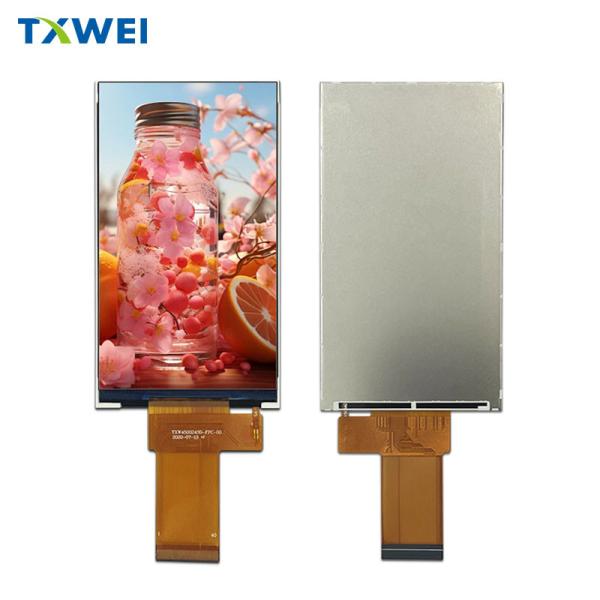

TFT LCD Module - Product Overview

TXW450024S0 is a 4.5-inch 16:9 ratio full-color TFT LCD display screen with a resolution of up to 480 * 854, IPS full view high-definition highlight effect, and a wide temperature range of -20+70 operating temperatures.

This product is independently designed, developed, and produced by Shenzhen Tianxianwei Technology Co., Ltd. It provides professional full process technical support services, first-class production quality control, and a delivery yield rate of 99.7%, with professional after-sales service guarantee.

This product is widely used in medical monitors/monitors, instrument displays, car displays, access control and security displays, smart home appliance displays, handheld PDA/POS machine displays, and more.

Key Features:
  • High resolution for clear and detailed display
  • Wide viewing angle for optimal visibility
  • High contrast for vivid and lifelike images
  • Energy efficient for cost savings
  • Durable design for long-lasting performance
  • Industry standard specifications for compatibility
  • Versatile for use in various applications

ITEM Sandard value Unit
Model Number TXW4500024S0
size 4.5 Inch
LCD Type Normally black --
Drive element TFT active matrix --
Number of pixels 480*3RGB(H)X854(V) Dots
Pixel arrangement RGB stripe --
Pixel Pitch (W*H) 0.108*0.108 mm
Active area 56.04(H) * 98.64(V) mm
Mechanical OutlineSize(W*H*T) 60*109*1.75 mm
Viewing direction ALL O’CLOCK -
LCM Driver IC ST7701S -
LCM interface RGB 24 BIT Interface -
Lcm pin n count 40
Backlight leds 10 pcs
Backlight current 40 mA
Backligh voltage 15 v
operating temperature -20+70 ℃
storage temperature -30+80 ℃
Lumens degrees 300 cd/㎡

Features:

  1. Product Name: TFT LCD Module
  2. Active Area: 56.04(H) * 98.64(V)
  3. LCD Type: Normally Black
  4. Lumens Degrees: 300Cd/m²
  5. Key Features:
    1. TFT display
    2. TFT LCD module
    3. TFT LCD display
    4. High resolution: 480*854
    5. Wide viewing angle
    6. Fast response time
    7. Low power consumption
    8. Wide operating temperature range: -20+70
    9. Compact and lightweight design
    10. Easy to integrate into various devices

Customize your TFT LCD display with TXWEI. Our TFT LCD module offers high-quality graphics and touch screen functionality for a

seamless user experience. With our customizable options, you can tailor the display to fit your specific needs and requirements. We are

certified by CE, ROHS, and FCC, ensuring our products meet the highest industry standards. Our minimum order quantity and pricing are

negotiable, and we offer fast delivery in sturdy cardboard packaging. With an operating temperature range of -20°C to +70°C, our TFT LCD

display is suitable for a wide range of environments. The active area of 56.04mm (H) * 98.64mm (V) and pixel arrangement of RGB Stripe

provide clear and vibrant images. Choose TXWEI for your custom TFT LCD display needs.
