Specifications
Brand Name :
TXWEI
Model Number :
TXW280086B0-CTP
Place of Origin :
Guangdong,China
Certification :
CE ROHS FCC
MOQ :
negotiate
Price :
negotiate
Packaging Details :
cardboard
Delivery Time :
16
Payment Terms :
L/C TT D/P
Supply Ability :
10000pcs
Viewing direction :
ALL O’CLOCK
Backligh voltage :
18V
size :
2.8inch
Active area :
43.2*57.6mm
Lumens degrees :
400cd/m²
LCM interface :
RGB 24 BIT Interface
Pixel Pitch (W*H) :
0.09*0.09
Description

2.8" TFT lcd touch screen 480*640 IPS full viewing angle with CTP and RGB interface

2.8 inch TFT LCD Touch Screen Description

Tianxianwei TXW280086B0-CTP is a diagonal size 2.8”inch shape IPS type TFT LCD Display with resolution 480*640 pixels.

Product Quick Details:

1. LCD Size: 2.8” inch TFT

2. Resolution: 480*640

3. Viewing Angle: Free(80/80/80/80)

4. Outline Dimension: 51.6*71.8*3 mm

5. LCD Driver IC: ST7701S

6. LCD Interface Type: RGB 24 BIT Interface

7. Temperature: Top -20°C to +70°C; Tst -30°C to +80°C

8. Touch Panel: Capacitive Touch Screen(CTP)

Product: 2.8"inch TFT Touch Screen: Capacitive Touch Panel (CTP)
Resolution:

480*640

 Viewing Direction: IPS Full Viewing Angle(80/80/80/80)
Driver IC:

ST7701S

 Pin Number: 44 Pins
Connection: FPC Type Connection Surface Luminance: 400 Cd/m² (nits)
Interface: RGB LED Lifetime: 30,000 Hours

Product Advantages

1. IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.

2. Excellent display performance of background color, luminance, viewing angle, and intensity, etc.

3. High quality level for industrial and medical applications.

4. Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.

5. Price competitive solution with good quality among the same kinds in the LCD industry.

6. Easy to install and easy to maintain.

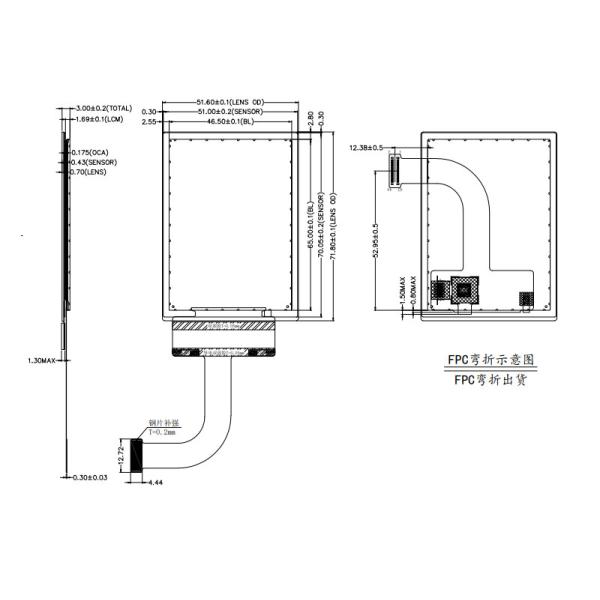

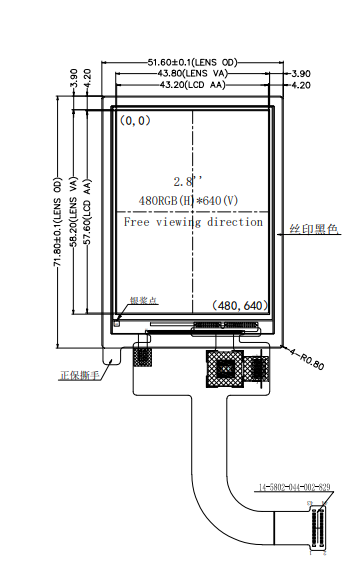

2.8 inch TFT lcd touch screen Drawing

2.8

2.8

Absolute Maximum Rating

Characteristics Symbol Min. Max. Unit
LCM Operating Temperature TOPR -20 +60 °C
LCM Storage Temperature TSTG -30 +70 °C
TP Operating Temperature & Humidity (20% ~ 90%RH) TOPR -20 +60 °C
TP SStorage Temperature & Humidity (20% ~ 90%RH) TSTG -30 +70 °C
Humidity RH -- 90 %

Back-Light Unit Characeristics

The back-light system is an edge-lighting type with 6 white LEDs. The characteristics of the back-light are shown in the following tables.

Characteristics Symbol Min. Type Max. Unit Notes
Forward Voltage VF 16.8 -- 19.2 V --
Forward current IF -- 20 -- mA --
Luminance(With LCD+CTP) Lv -- TBD -- cd/m2 --
LED life time N/A -- 30,000 -- Hr Note 1

Note:

  • The “LED life time” is defined as the module brightness decrease to 50% of original brightness at IL=20mA/LED. The LED life time could be decreased if operating IL is larger than 25mA/LED.

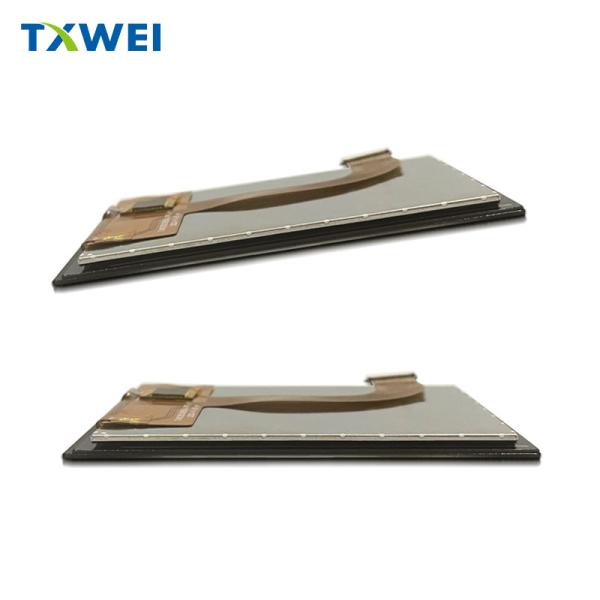

Real Product Demostration

2.8

2.8

Search keyword: tft 2.8, tft 2.8", 2.8 tft lcd, 2.8" tft lcd, 2.8" inch tft lcd, tft lcd 2.8, 2.8 tft display, 2.8" tft display, 2.8 inch tft display, tft display 2.8, tft display 2.8", 2.8 inch tft screen, 2.8" tft screen, 2.8 inch tft screen, tft screen 2.8, TFT screen 2.8 inch, TFT screen 2.8", 2.8 inch tft, 2.8" inch TFT lcd, 2.8" inch tft lcd screen, 2.8" tft screen, 2.8” inch tft lcd display, tft lcd display 2.8”

FACTORY AND FACILITIES

2.8

2.8
