TXW350091N0-RTP: High precision touch display solution, empowering new experiences for smart devices

In the rapid development of industrial automation, medical electronics, smart homes and other fields, highly reliable and high-performance display and touch modules have become key components for device upgrades. The TXW350091N0-RTP standard LCD display module launched by Shenzhen Tianxianwei Technology Co., Ltd. is becoming an ideal choice for industrial grade display solutions due to its excellent display performance, stable environmental adaptability, and integrated touch function.

一,Product Overview: Integration of Professional Display and Touch Control

TXW350091N0-RTP is a display module that integrates a 3.5-inch TFT LCD screen and a 4-wire resistive touch panel (RTP), designed specifically for devices in harsh environments. Its core advantages lie in:

High resolution display: 320 × RGB × 480 pixels, horizontal display mode, delicate and clear image, supports 262K color depth, and can accurately restore image details.

Touch Integration: Built in resistive touch screen, supporting multi touch and fast response, meeting the requirements of industrial equipment for interactive sensitivity.

Compact design: The module thickness is only 3.25mm (including RTP), and the lightweight structure adapts to the space limitations of embedded devices.

二,Core Technology Highlights

Excellent display performance

Brightness and lifespan: Equipped with 6 high brightness white LED backlights, with a typical brightness of 350 cd/m ², supporting brightness adjustment; The LED has a lifespan of up to 30000 hours (when the brightness decays to 50%), ensuring long-term stable operation.

Wide temperature adaptation: Supports operating temperatures from -20 ° C to+70 ° C, with an extended storage temperature range of -30 ° C to+80 ° C, suitable for complex environments such as extreme cold and high temperature workshops.

Reliable touch experience

The 4-wire resistive touch panel (RTP) has strong anti-interference ability and wear resistance, supports glove or stylus operation, and is suitable for scenarios such as driving recorders, industrial serial port screens, and 3D printer displays.

Provide touch screen window design suggestions (increase by 0.3~0.5mm on one side) to avoid edge accidental touch and improve user experience.

Flexible electrical compatibility

The power supply voltage range is 2.5V~3.3V, suitable for various embedded system power solutions.

Supports RGB interface (compatible with serial/parallel modes), simplifying the docking process with the main control chip.

三,Application scenario: Multi domain empowerment

TXW350091N0-RTP, with its high reliability and modular design, is widely used in the following fields:

Industrial control: Industrial serial port screen, 3D printer display, automation equipment operation panel, real-time display of equipment status and parameters.

Medical equipment: monitors, portable diagnostic instruments, meeting medical grade anti-interference and cleaning requirements.

Smart home: central control screen, security system, providing intuitive interactive interface.

Car electronics: Rear mounted car navigation, dashboard information display, suitable for wide temperature and vibration environments.

四,Design support and environmental commitment

Quick Integration: Provides standardized pin definitions and interface protocols to support customers in rapid development and shorten product launch cycles.

Rigorous testing: Through high temperature storage (80 ° C) and low temperature shock (-30 ° C) ↔ Reliability tests such as 80 ° C cycling and high temperature and humidity (60 ° C/90% RH) are conducted to ensure the stability of the product under extreme conditions.

Environmental compliance: Compliant with RoHS standards, with lead-free and halogen-free processes throughout the entire process, meeting global market access requirements.

五,Enterprise advantage: Technical support from Tianxianwei Technology

As a leading display module supplier in China, Tianxianwei Technology has been deeply involved in the industry for more than ten years, with independent research and development as its core, providing one-stop services from design, production to after-sales. The company has ISO 9001 quality management system certification, ensuring that every product passes strict quality inspection and providing customers with cost-effective and long-lasting display solutions.

TXW350091N0-RTP is not only a high-performance display module, but also the "visual and interactive center" for upgrading smart devices. The design concept that balances performance and reliability provides solid technical support for product innovation in industries such as healthcare and consumer electronics. If you need to learn more technical details or apply for samples, please contact customer service.

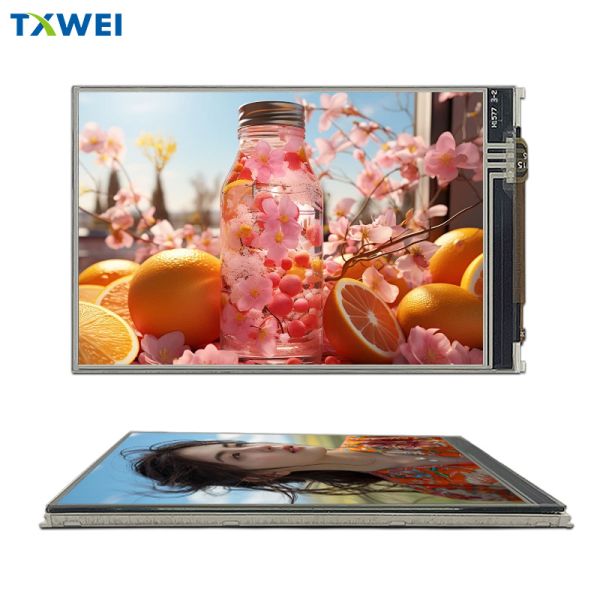

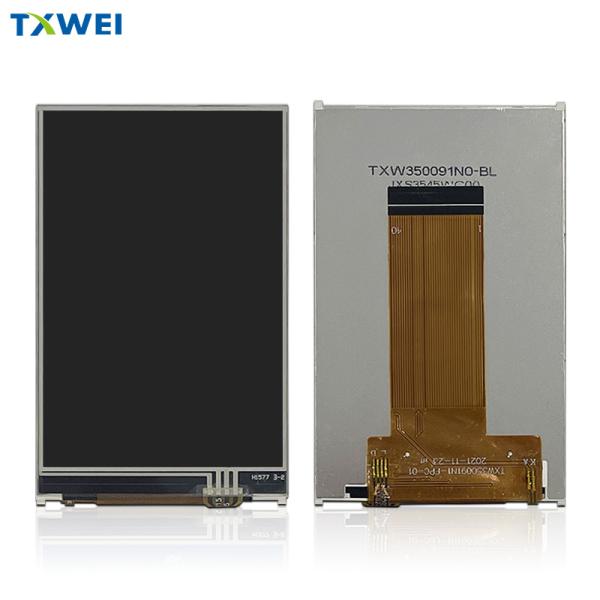

Product Photograph

Production workshop actual shooting
