Product Features

2-inch LCD screens are widely used in various fields due to their compact and exquisite appearance and excellent display performance. The following are its main characteristics:

High resolution, clear display: The 2-inch LCD screen can achieve a resolution of 240x320 or even higher, providing clear and delicate images and sharp text display.

Vibrant colors and clear layers: Supports 262K or 16.7M color display, high color reproduction, bright and clear images, clear layers, bringing excellent visual experience.

Low power consumption, energy-saving and environmentally friendly: Adopting a low-power design, it effectively reduces screen energy consumption, extends device battery life, and conforms to the concept of energy conservation and environmental protection.

Lightweight and compact, easy to integrate: With a small size and thickness of only a few millimeters, it is lightweight and easy to integrate into various small devices, saving space and making it convenient to carry.

High reliability and long service life: Adopting mature LCD technology, high reliability and long service life can meet the needs of various harsh environments.

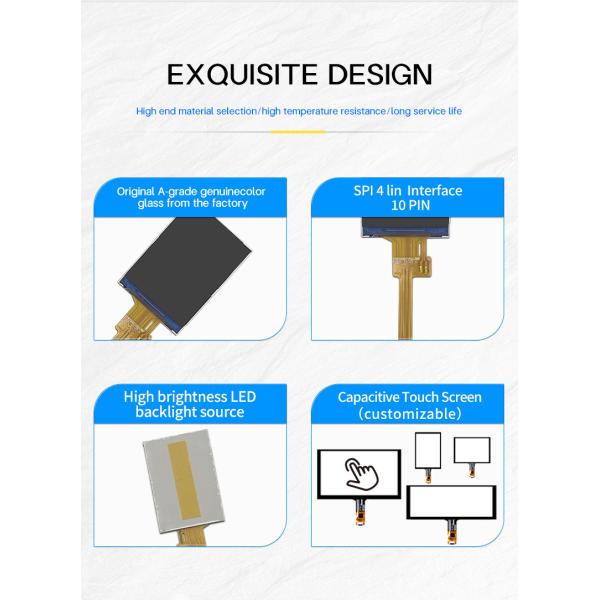

2-inch LCD Display Screen - Model TXW200072S0 Specification Overview

essential information

Model: TXW200072S0

Size: 2.0 inches

Resolution: 240 * 320

Display characteristics

Display angle: IPS (wide viewing angle)

Display interface: SPI 4-lin 10 PIN

Display chip: ST7789

Brightness: 500 nits

Display area: 30.6 * 40.8 (mm)

Dimensions and working conditions

Dimensions: 34.647.832.1 (mm)

Working temperature:- 20 ° C to 70 ° C

Storage temperature:- 30 ° C to 80 ° C

Application areas:

Photography equipment

Remote control

Intelligent switch display

Digital camera

Music Effects Display

Driving recorder

Handheld instrument display

Medical display

This LCD display screen has the characteristics of high resolution, wide viewing angle, high brightness, and multiple application fields, and is suitable for the display needs of various electronic devices.

Environmental Protection and Reliability

Environmental requirements: Compliant with RoHS standards, which restrict the use of certain harmful substances

Reliability testing: including high temperature storage, low temperature storage, high temperature operation, low temperature operation, high temperature and high humidity storage, as well as cold and hot shock testing, to ensure the stability and reliability of LCD screens in various environments.

Shenzhen Tianxianwei Technology Co., Ltd. occupies an important position in the LCD display industry with its wide range of product application fields and strong research and development production capabilities. The company not only provides standard products, but also offers customized LCD display solutions according to customer needs, meeting the needs of different industries and application scenarios.

Purchase suggestions

When choosing a 2.0-inch 240*320 TFT LCD screen, the following factors need to be considered comprehensively:

Resolution: Choose the appropriate screen resolution based on the actual application scenario.

Brightness: Choose the appropriate screen brightness based on the usage environment.

Contrast: Choose a screen with high contrast to achieve better display effects.

Interface type: Select a screen compatible with the device motherboard interface.

Working temperature: Select a screen with an appropriate working temperature range based on the usage environment.

Brand reputation: Choose a reputable brand to ensure product quality and after-sales service.
