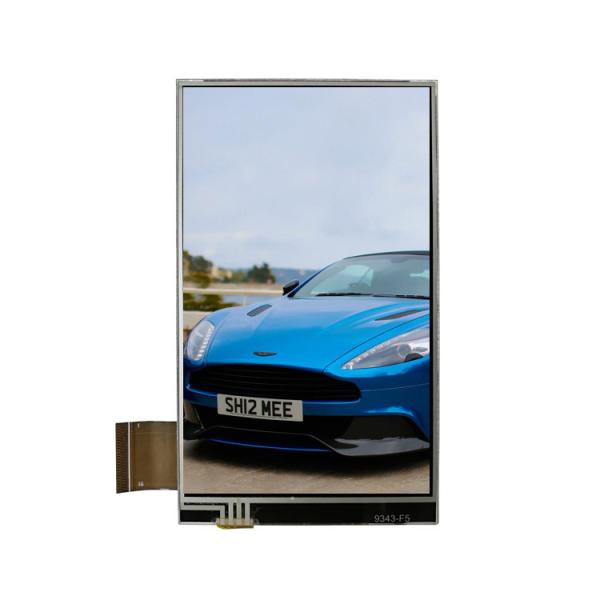

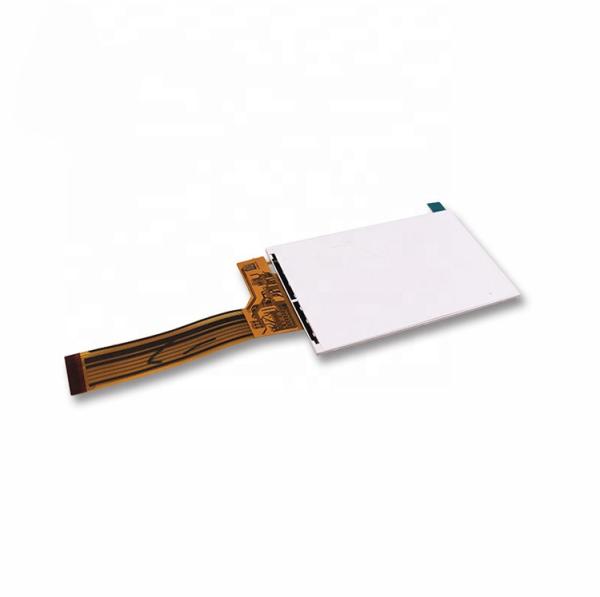

3.97′′480X800dots RGB Interface Tft LCD Touch Module
3.97′′480X800dots RGB Interface Tft LCD Touch Module
3.97′′480X800dots RGB Interface Tft LCD Touch Module
3.97′′480X800dots RGB Interface Tft LCD Touch Module
3.97′′480X800dots RGB Interface Tft LCD Touch Module
3.97′′480X800dots RGB Interface Tft LCD Touch Module
3.97′′480X800dots RGB Interface Tft LCD Touch Module
3.97′′480X800dots RGB Interface Tft LCD Touch Module
3.97′′480X800dots RGB Interface Tft LCD Touch Module
3.97′′480X800dots RGB Interface Tft LCD Touch Module
3.97′′480X800dots RGB Interface Tft LCD Touch Module
3.97′′480X800dots RGB Interface Tft LCD Touch Module
3.97′′480X800dots RGB Interface Tft LCD Touch Module
3.97′′480X800dots RGB Interface Tft LCD Touch Module
Specifications
Brand Name :
SUNMEG
Model Number :
LX39703LX-03
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
60K pcs/month
Delivery Time :
5-8 working days
Packaging Details :
Standard export package
Product name :
LCD TFT Screen display
Size :
3.97 inch
Transport Package :
Standard Carton package or Customized Package
Active Area :
51.84*86.4 mm
Interface :
MCU
Outline Dimensions :
57.14*96.85*2.25 mm
warranty :
1 year
Description

We are a supplier for LCD module. Our company is a hi-tech all-in-one company,

specialized in liquid crystal display module (LCM), capacitive touch Panel (CTP),

Full fit touch display module (TDM), production and service. Our company gains

a solid development strength with Advanced production equipments, united and enterprising

sales team, which is committed to providing customers with high-quality products, which are

mainly used in communications equipments.

Our LCD module products ranged from TN, HTN, STN, FSTN with various types of assembly

such as COB, COG, TAB and many customized segment LCD modules.Products widely

used in Video, Car instrument, Vending machine, Telephones, Electronic meters, Door-phone,

all kinds of terminal equipment etc.

Feature Specification Unit
Display Spec Brand Wise -
Size 3.97 inch
Resolution 480*800 dots
Pixel pitch 0.108 (H) *0.108(V) mm
Display Mode IPS/NB -
Viewing Direction All o'clock
Gray Scale Inversion Direction All o'clock
Luminance 300 cd/m2
Mechanical
Characteristics		 LCM (W * H * D) 57.14*96.85*1.80 mm
Active Area (W * H ) 51.84*86.40 mm
With /Without TP Without TP -
LED Numbers 8-LED pcs
Operation temperature -20~+70 ºC
Storage temperature -30~+80 ºC
Electrical
Characteristics		 Interface RGB-18BIT/39PIN -
LCM Power Supply 2.8 V
LED Power Supply 24.0 V
Color Depth 262K -
LCM Driver IC ILI9806E -
CTP Driver IC - -

Pin No. Symbol Function
1 GND Ground
2-3 LEDA Backlight LED Power
4-5 LEDK Backlight LED Ground
6 SPI_CS Chip select pin.
7 SPI_SDA SPI interface Data input.
8 SPI_CLK serial interface clock
9 LRSTB Reset pin, This is an active low signal
10 ID GND
11-13 GND Ground
14-16 R5
R2
R3		 Red data pin
17-19 G4
G5
G3		 Green data pin
20 B4 Blue data pin
21-23 R0
R1
R4		 Red data pin
24 VSYNC Vertical Sync Input
25 HSYNC Horizontal Sync Input
26 PCLK Dot Data Clock
27 DEN Data Enable Input
28-32 B5
B2
B0
B3
B1		 Blue data pin
33-35 G0
G2
G1		 Green data pin
36 VIO2.8V Power for analog voltage.
37 VIO1.8V Power for logic voltage
38-39 GND
Ground

3.97′′480X800dots RGB Interface Tft LCD Touch Module3.97′′480X800dots RGB Interface Tft LCD Touch Module3.97′′480X800dots RGB Interface Tft LCD Touch Module3.97′′480X800dots RGB Interface Tft LCD Touch Module3.97′′480X800dots RGB Interface Tft LCD Touch Module3.97′′480X800dots RGB Interface Tft LCD Touch Module
Quality Control :

Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
We will test goods strictly according to our standard inspection before shipment.
If exceed this standard, clients can ask for returning and get new.

FAQ:

Q: How to choose a suitable model of LCD display for a new project?
A: Think about the following key points to define a model you need, such as size/resolution/thickness/LCD interface
view angle/brightness/operation temperature and so on.

Q. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out

the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples

for approval after reliability test and aging test---We make modification if necessary---We do small quantity of

trial order (if required)---We do mass production.

Q. Can I have my own silk screen Logo, Part Number or small label?
A: Yes, Definitely. It may requires MOQ, please refer to our sales, thanks.

Q.How long is the warranty and what is your after-sales service?
A: Usually 12 Months.

If there is any defect within 12months from receiving products, please contact our sales, we will respond within 24hours. If we require

any product to be returned to us, the shipping cost will be fully paid by us.
