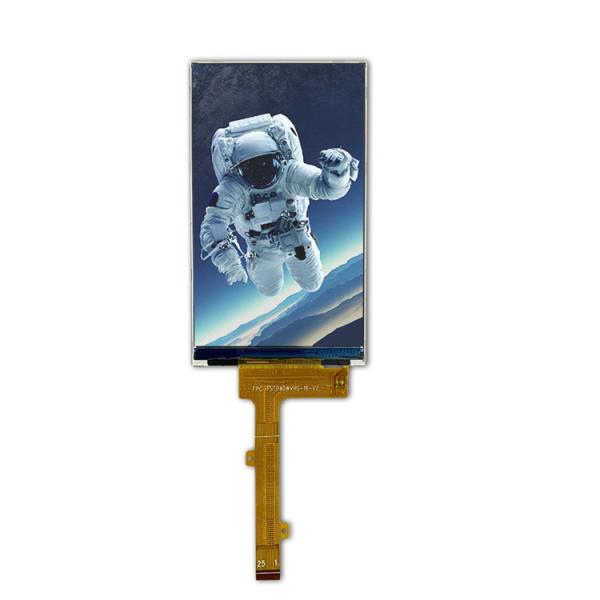

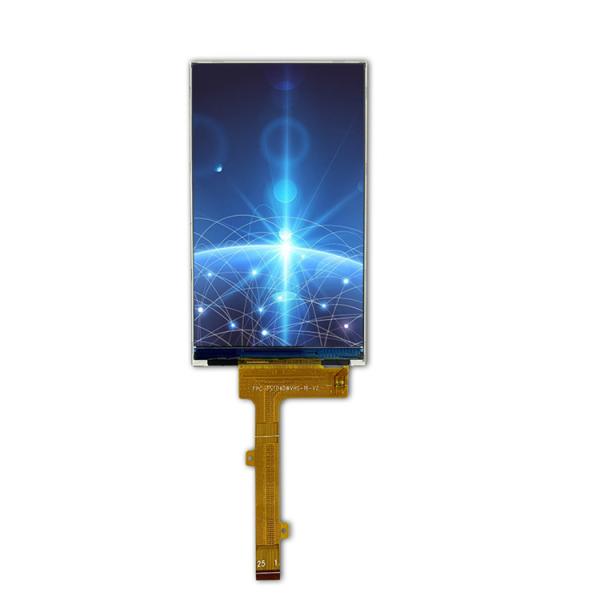

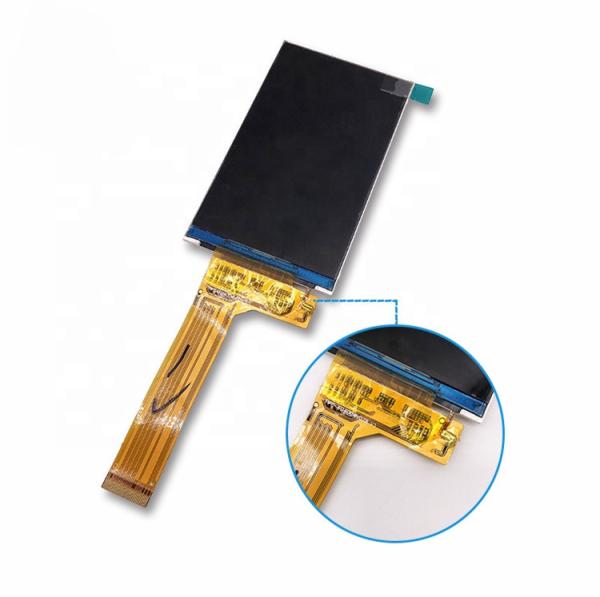

RTP 3.97 Inch 480X800 RGB IPS TFT LCD Display Without TP
RTP 3.97 Inch 480X800 RGB IPS TFT LCD Display Without TP
RTP 3.97 Inch 480X800 RGB IPS TFT LCD Display Without TP
RTP 3.97 Inch 480X800 RGB IPS TFT LCD Display Without TP
RTP 3.97 Inch 480X800 RGB IPS TFT LCD Display Without TP
RTP 3.97 Inch 480X800 RGB IPS TFT LCD Display Without TP
RTP 3.97 Inch 480X800 RGB IPS TFT LCD Display Without TP
RTP 3.97 Inch 480X800 RGB IPS TFT LCD Display Without TP
RTP 3.97 Inch 480X800 RGB IPS TFT LCD Display Without TP
RTP 3.97 Inch 480X800 RGB IPS TFT LCD Display Without TP
Specifications
Brand Name :
SUNMEG
Model Number :
LX39705LX-109
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
60K pcs/month
Delivery Time :
5-8 working days
Packaging Details :
Standard export package
Product name :
LCD Display Screen
Size :
3.97 inch
TP :
RTP/CTP Optional
Active Area :
51.84*86.4 mm
Outline Dimensions :
57.14*96.85*2.25 mm
warranty :
1 year
LCD Type :
a-Si TFT Active Matrix
Display Mode :
Normally White, Transmissive
custom service :
support customize
HS Code :
542323211
Description

Factory Price RTP 3.97 Inch 480X800 RGB IPS TFT LCD Module Without TP

1. We are a professional designer manufacturer of LCD module, capacitive and resistive touch module, customized tempered touch glass panel.
2. We have the IATF16949 certificate issued by TUV, which can produce automotive-grade LCD display modules that are higher in impact resistance, reliability, consistency, life, and manufacturing standards than ordinary industrial products.
3. We are good at ODM and OEM, product specification, LOGO, and packaging can be customized.
4. We are good at the development of the display module in the industrial field and provide the total solution of the capacitive and resistive screen.
5. We have 6 production lines, with the shipment of more than 3,000,000 pieces per year.
6. Our products can support long-term supply, Maximum supply cycle is 5-10 years.
7. We combine touch screen technology with an LCD display module, which greatly saves your cost. Perfect after-sales service will be one of the reasons why you choose us.

Feature Specification Unit
Display Spec Brand Wise -
Size 3.97 inch
Resolution 480*800 dots
Pixel pitch 0.108 (H) *0.108(V) mm
Display Mode IPS/NB -
Viewing Direction All o'clock
Gray Scale Inversion Direction All o'clock
Luminance 300 cd/m2
Mechanical
Characteristics		 LCM (W * H * D) 57.14*96.85*1.80 mm
Active Area (W * H ) 51.84*86.40 mm
With /Without TP Without TP -
LED Numbers 8-LED pcs
Operation temperature -20~+70 ºC
Storage temperature -30~+80 ºC
Electrical
Characteristics		 Interface RGB-18BIT/39PIN -
LCM Power Supply 2.8 V
LED Power Supply 24.0 V
Color Depth 262K -
LCM Driver IC ILI9806E -
CTP Driver IC - -

Rich experience Good knowledge of the displays market to put together solutions that add value and provide a unique proposition for the client
Quality Assurance Advance inspection instrument and equipment to ensure 100% inspection for each and every piece before shipment
Fast response Quickly realize your customized ideas, and have a sample ready in short time
Low MOQ Depends on product
Stable supply 1~10 years supply period
Extensive range Providing complete solution from Mono to Color LCD module, Optical bonding between display to cover glass as well as cover glass to touch screen
Large production capacity Operation capacity 2KK monthly
Quality guarantee RoHS compliant
Management ISO 9001:2008, ISO 14001:2004

RTP 3.97 Inch 480X800 RGB IPS TFT LCD Display Without TP

RTP 3.97 Inch 480X800 RGB IPS TFT LCD Display Without TPRTP 3.97 Inch 480X800 RGB IPS TFT LCD Display Without TPRTP 3.97 Inch 480X800 RGB IPS TFT LCD Display Without TPRTP 3.97 Inch 480X800 RGB IPS TFT LCD Display Without TP


Quality Control :

- Our technicians and QC team test the original products one by one to ensure every products are perfect one before package and shipment!
- We will test goods strictly according to our standard inspection before shipment.
- If exceed this standard, clients can ask for returning and get new.

FAQ:
Q: Do you have data sheets?
A: Yes, we have data sheets of our LCD modules. You may ask our sales for help.


Q: How can I know which size is suitable for our application?
A: Please ask your engineer for guidance to make sure the size of your product(length*width*thickness in mm) and the
function of it. Based on the above information, we will suggest the ideal size of the LCD module for your product.

Q. How do I work with you on Customized products?
A: Firstly please provide us the description of your special requirements, any Drawing or Specification---Our engineers will work out

the compatible solution and also mould cost (if any)---We provide Drawing and Specification for Approval---We provide samples

for approval after reliability test and aging test---We make modification if necessary---We do small quantity of

trial order (if required)---We do mass production.

Q. How long is the warranty and what is your after-sales service?
A: Usually 12 Months.

If there is any defect within 12months from receiving products, please contact our sales, we will respond within 24hours. If we require

any product to be returned to us, the shipping cost will be fully paid by us.
