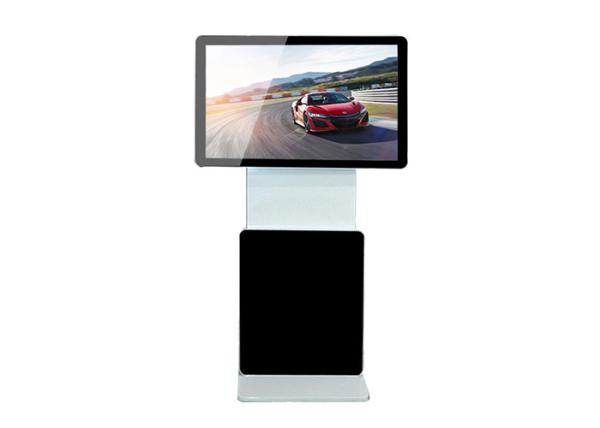

HBY network optional Touch Screen Digital Signage 47inch Advertising Screen
Digital signage is widely used in enterprise , cinema , hotel , restaurant , shopping mall , school , hospital and other places ;
Main Features of the Advertising Display
♦ Based on Android 4.4 system,all the android application APK,software automatic restoration
♦ Support 1080P HD signal display,synchronizing servers and terminal player
♦ Support Brower to connect the internet,daily record unloading and timing setting
♦ Real time management and controlling,browser,breakpoint upload and download,multi-mode up
♦ Updating programs(video,pictiures,texts,PPT,etc) through the Internet
♦ Auto power on/off,electronic clock & data,split screen and fixed template display setting
♦ WAN &LAN long-distance setting play/sleep/reboot ect.function
♦ Supported file encryption setting(preset the password for the program),Weather forecast display
♦ Available in a wide range of sizes: 19” ,22” ,24" , 27”, 32”, 43" , 49” , 55” ,65"
Main features
1 Transmit content by USB/SD card
2 Update and download the information via WIFI/3G/4G
3 Support RJ45/HDMI/VGA input
4 Autostart and autostop showing pictures/videos/presentations
5 Perfect running APK/EXE software
6 Customized service: built in camera/ 4K resolution/ thermal printer/ infrared scanner/ wheels
Specification | ||||||||||
Model No. | HBY-W470 | |||||||||
Panel size | 47″ TFT-LCD | |||||||||
Display area(mm)/mode | 1039.68*584.82mm | |||||||||
Maximum resolution | 1920*1080 | |||||||||
Display color | 16.7M | |||||||||
Pixel Pitch(mm) | 0.5415*0.5415mm | |||||||||
Brightness (nits) | 450 cd/m2 | |||||||||
Contrast | 3000:1 | |||||||||
Visual angle | 89/89/89/89 | |||||||||
Response time | 5ms | |||||||||
Life(hrs) | >60,000(hrs) | |||||||||
Input and output | ||||||||||
RJ45 | Included(Network version only) | |||||||||
3G / WIFI Module | Included(Network version only) | |||||||||
USB | 1 ( USB2.0 interface) | |||||||||
SD | 1 (Compatible MMC/MS) | |||||||||
CF | 1(optional) | |||||||||
L/R audio input | 1 (RCA*2) | |||||||||
L/R audio output | 1 (RCA*2) | |||||||||
Speaker | 2×5W(9Ω) | |||||||||
Video | ||||||||||
Color system | PAL/NTSC/SECAM | |||||||||
Remote controller | IR Remote Controller | |||||||||
OSD display( screen menu display) | ||||||||||
Menu language | Chinese/English( Multiple Language Supported) | |||||||||
Power | ||||||||||
Power supply | AC100~240V 50 /60 HZ | |||||||||
Maximum power consumption | <=280W | |||||||||
Standby power consumption | <1W | |||||||||
Temperature | ||||||||||
Working temperature | 0°C~50°C | |||||||||
Storage temperature | -20°C~60°C | |||||||||
Working humidity | 20%~85% | |||||||||
Storage humidity | 10%~90% | |||||||||
Appearance | ||||||||||
Color/appearance | White,black,customized | |||||||||
Body Dimension | 1993*657*127.4mm | |||||||||
After packing size | 2143*807*328mm | |||||||||
Case | Metal case SPCC | |||||||||
Installation | Floor-standing | |||||||||
Gross Weight | 108kg | |||||||||
Quality Standard | ISO9001,CCC | |||||||||
Detailed functions | ||||||||||
Video format | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI | |||||||||
Audio format | Wave/MP3/WMA/AAC | |||||||||
Image format | JPEG/BMP/TIFF/PNG/GIF | |||||||||
Image resolution | 480P/720P/1080P |
How to choose right advertisement display ?
1: Play pictures and video cyclically , no need to change playing content frequently .
Suggestion: Single board advertisement display .
2: Control many displays remotely , need to change playing content frequently , download APP.
Suggestion: Android advertisement display .
3: With interactive function
Suggestion: Android / windows advertisement display with touch screen ;
Q1: Are you manufacturer(factory)?
A1: Yes, we're. Also OEM/ODM service available here.Welcome to share your ideas with us. It's our pleasure to provide best solution for you.
Q2: What's your MOQ?
A2: One sample can be provided first for evaluation.
Any quantity is welcome here for non-customized products.
As per customized products, please contact us for further confirmation.
Q3: What's the lead time?
A3: Mass order: 5-10days depending on order quantity.
Sample: 1day when there is stock,5-10days for custom design.
