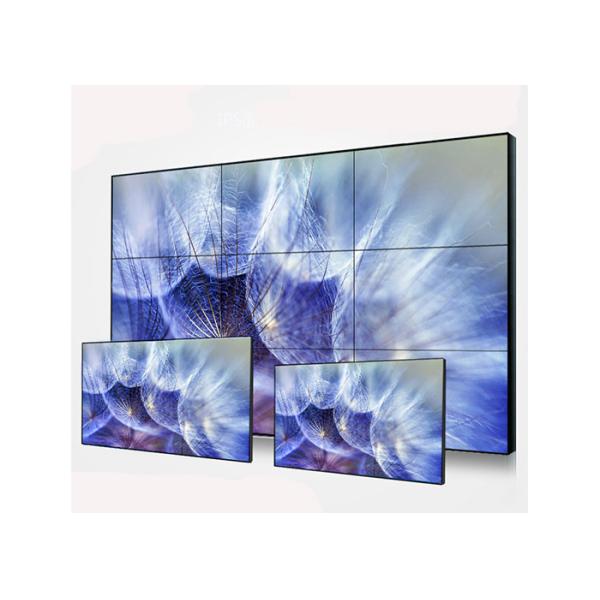

High Definition LCD Wall Display , Ultra Thin Bezel Video Wall Wide Viewing Angle
High Definition LCD Wall Display , Ultra Thin Bezel Video Wall Wide Viewing Angle
Specifications
Brand Name :
HBONY
Model Number :
HBY-PJ460G
Certification :
CE/CCC/FCC/ROHS/ISO9001
Place of Origin :
Guangdong , China
MOQ :
4 Pieces
Price :
Negotiation
Payment Terms :
L/C , T/T , Western Union , Paypal
Supply Ability :
3000 pieces per week
Delivery Time :
5-8 work days
Packaging Details :
Carton Box with PE Foam+wooden box
Brand :
SAMSUNG industrial panel
Panel size :
46inch
Brightness :
700cd / ㎡
Long service life :
60,000 hours
Application :
indoor
Software :
free
Super narrow bezel :
3.5mm
Product type :
46inch Ultra Narrow Bezel Video Wall
Description

HBONY 46inch 3.5mm Ultra Narrow Bezel Video Wall Support 365 days non-stop boot

Features:

1. Ultra-narrow border design of the current width of only 3.5mm at present.

2. Full-screen high definition display, up to 1080P

3. Unique cell-based, modular design, Which can splice as a liquid crystal wall can also be used alone

4. DID using Samsungs proprietary LCD screen is completely different from the normal LCD screen, display long-life, high stability, and focus on the special display.

5. Long life, stable operation, no burns, injuries, low maintenance costs

A wealth of input and output interface, VGA, DVI, YPbPr, Av interface terminal, can be accessed by computers and a variety of video equipment.

6. Brand-new ultra-wide viewing angle technology extended(S-PVAS-IPS), ensure that 178-degree viewing angle both vertical and horizontally within the image to watch the non-deformation, color without distortion.

Specifications

Panel Specifications
LCD Technology TFT-LCD
Active Screen Diagonal 46"
Total Bezel Width 3.5mm
Aspect Ratio 16:9
Physical Resolution 1920*1080 or 4K
Backight System LED
Luminance(nits) 700cd/㎡
Contrast 4000:1
Viewing Angle H 178°|V 178°
Pixel Pitch(WxH) 0.63x0.63mm
Active Display Area(WxH) 1018.08*572.67mm
Panel Dimension(WxHxD) 1021.98*576.57*125.7mm
White Point 10,000 K
Display Colors 1.07GB colors
Refresh Rate 60Hz
Response Time <=6ms
Life(hrs) >60,000(hrs)
MTBF > 100,000 h
Surface Anti-glare
Standby Power Consumption <3W
Maximum Power Consumption ≦180W
Power Supply AC110~220V 50/60 HZ
Cooling Low noise fans
Heat Dissipation 819 BTU/h (max)
Working Time Capacity 7x24x365hours
Application Area Indoor/Semi Outdoor
Working Temperature 0℃～50℃
Working Humidity 0.85
Storage Temperature -20-60°C | -4-140°F
Storage Humidity 85% non-condensing
Inputs, Outputs &Features
DVI-I DUAL LINK 1
HDMI 1
VGA 1
CVBS IN 1
CVBS OUT 1
RS232 IN 1
RS232 OUT 1
ISP IN 1
IR IN 1
AC IN AC100-240V
Color System Support PAL/NTSC/SECAM
Control Type IR Remote &Software Control
Menu Language English/Chinese(Multiple Language can be customized)
Vertical/Horizontal Display Support
Combine Display Support combine any horizental &vertical numbers of screens and show display
Support combine all screens together to show 1image
Solid Display Support each screen input with separate signal
PIP/Zoom/Roaming Support open one window for each screen, each window can be zoomed &roaming internal freely
Multiple Interfaces Support DVI,HDMI,VGA,AV &multiple signal inputs
Rich Resolution Support 1080P,1080I,720P,480P &multiple resolution inputs

Before we offer you best quotation, we'd to confirm some details if you don't mind:

1. What's the size of screen, cabinet you prefer?

2. What's the best viewing distance with your project?

3. What's the color of cabinet you need? Any logo on back of cabinet?

4. When do you need to get goods? Is this urgent?

5. Any special requests? Such as video processor,hanging bar,flight case for package? Please advise it as well.
