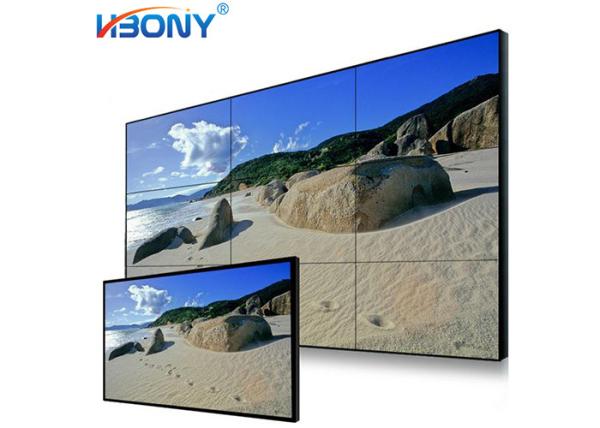

Indoor Advertising LCD Video Wall Screens , Multi Screen Tv Wall Low Heat Radiation
Indoor Advertising LCD Video Wall Screens , Multi Screen Tv Wall Low Heat Radiation
Specifications
Brand Name :
HBONY
Model Number :
HBY-PJ550P
Certification :
CE/CCC/FCC/ROHS/ISO9001
Place of Origin :
Guangdong , China
MOQ :
4 Pieces
Price :
Negotiation
Payment Terms :
L/C , T/T , Western Union , Paypal
Supply Ability :
3000 pieces per week
Delivery Time :
5-8 work days
Packaging Details :
Carton Box with PE Foam+wooden box
logo :
customized LED logo
Input :
HDMI,DVI,VGA,USB
Brand name :
HBONY
Panel Size :
46'' 47'' 49'' 55''
screen to screen :
3.5MM
Output signal :
BNC*2
Matrix :
optional
Active area :
1209.6(H)x680.4(V)mm
Description

3.5mm bezel Ultra Narrow Bezel Video Wall , splicing display wall

LCD-DID Industrial HD&High-brightness narrow edge LCD.
Narrow Edge Design: Minimum 3.5mm.
High Resolution Ratio: 1920*1080
High-brightness: 500cd/sqm

Super wide visual angle:178(H)/178(V)
Digital information display with LCD-DID Industrial HD&High-brightness narrow edge LCD.
Built-in splicing module, Support splice function,support Creating one window(PIP) across the screen,roaming service,scaling,PIP Support matrix joint control.

Unique DNX motion supplement image processing technology, Dynamic image without motion
trail,Splicing image processing RS-232(RJ-45)loop-circuit input/output.,Input by remote control with wire,mobile receiver head.

Specification:

Specifications
Model No. HBY-PJ550P
Panel Size 55''Samsung DID LCD Screen(narrow bezel 3.5mm)
Aspect Ratio 16:09
Max Resolution Support 1920X1080
Color 8Bit,16.7M
Brightness (nits) 500cd/m2
Contrast 3000:1
Visual Angle (H/V) 178
Response Time <=6ms
Life(hrs) >60,000(hrs)
Input and output
DVI 1
HDMI 1
VGA 1
YPbPr 1(BNCx3)
S-video 1(BNCx2)
Composite Video Input/(AV) 2(BNCx2)
Composite Video Output 2(BNCx2)
Split Screen Support Picture in Picture(PIP/POP)
Power
Power Supply AC100V~240V/50,60Hz
Maximum Power Consumption 250W
Standby Power Consumption <=3W
Temperature
Working Temperature 0 ℃~75 ℃
Working Humidity 5 ℃~95 ℃

Features:

frames<=3.5mm only(two frames totally)

Narrow bezel design ---Industrial grade LCD panel ,high quality ,Practical ,good vision effect.
Signal interface rich --- RS232, HDMI,DVI,VGA,Y Pb Pr ,AV
HD video wall unit--- High brightness,high contrast,High gamut .
Flexible structure design ---easy installation ,extensible,arbitrary combination
Stable performance,suitable working for a long time
Resolution:
4k double full hd super clear display effect
