Specifications
Brand Name :
HBONY
Model Number :
HBY-PJ550P
Certification :
ISO9001, FCC, CE, RoHS, CCC
Place of Origin :
Shenzhen, China
MOQ :
4 pieces
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000pieces/month
Delivery Time :
within 1 week
Packaging Details :
Inner pack, foam with kraft carton; Outer protection, wooden case
Model No :
HBY-PJ550P
Resolution :
1920*1080
Contrast ratio :
4500:1
Brightness :
500nits
Response time :
<8ms
Life :
>60000hours
Backlit :
LED
Installation :
wall mounted/ floostanding/ embedded/ cabinet
Description

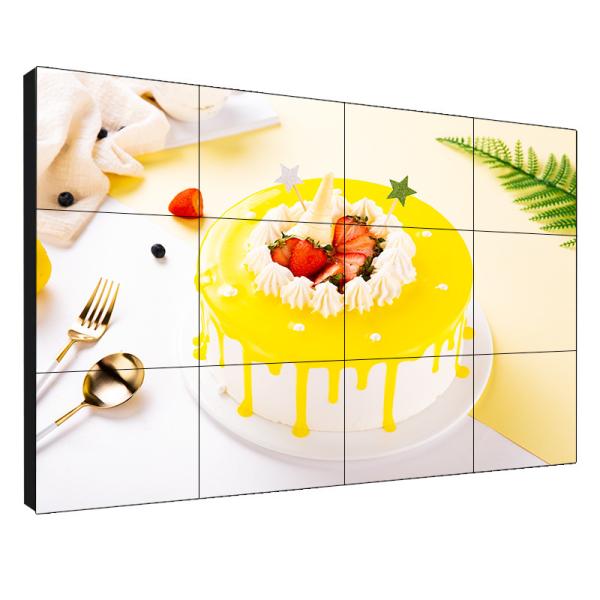

Super Narrow Bezel 55 Inch Lcd Video Wall with More Than 60000hours Service Life

Characteristic

1. LCD splicing screen has long life. LCD is the display equipment with the longest service life. Its life is very long. Even the shortest backlight part has a life of more than 50,000 hours. And even if it is used for more than this long time, it will only affect its brightness. Only by replacing the backlight tube, the original bright color can be restored.

2. LCD splicing screen has large visual angle. The DID LCD screen used in the LCD mosaic curtain wall has a double 178 degree viewing angle, which has achieved the effect of absolute viewing angle.

3. LCD splicing screen has high resolution and can show bright picture. The point spacing of liquid crystal is much smaller than that of plasma. The physical resolution of liquid crystal can easily reach and exceed the high definition standard. The brightness and contrast of liquid crystal are very high. The color of liquid crystal is bright and bright. The pure plane display has no curvature and the image is stable and not flickering.

4. LCD splicing screen is very thin and light. LCD has the characteristics of thin thickness and light weight, which can be easily spliced and installed.

5. Low power consumption and low calorific value. Liquid crystal display equipment, low power, low heat has always been praised by people.

6. Innovation and advancement; 55-inch LED backlight ultra-narrow edge LCD splicing 1.7mm, which is the most advanced LCD splicing wall.

7. Long trouble-free time thus low maintenance cost of LCD splicing screen. LCD is the most stable and reliable display device at present. Because of its small calorific value and stable device, it will not cause malfunction due to excessive temperature rise of components.

Application areas:

Widely used in exhibition hall, hotel lobby, broadcasting studio, Shopping mall, airports, stations, financial center, energy monitering, scientific research education institutions, school, medical institutions, transportation commanding, government, etc.

Parameter

Specification
Size 55 inch
Panel brand Samsung
Model No. HBY-PJ550P
Panel Size 55" DID LCD module
Backlight Type LED
Display Area 1206.9(H)x608.4(v)mm
Aspect Ratio 16:9
Resolution 1920X1080
Color 8Bit,16.7M
Brightness (nits) 500cd/m2,700cd/m2
Contrast 4500:1
Visual Angle (H/V) 178°/178°
Response Time 8 ms
Life Span >60,000 hours
Bezel width(between screens) 1.7mm
Product Weight 30KG
Interfaces (option 1- without 4K input)
Input 1*DVI,1*HD-MI,1*VGA,2*BNC (PAL/NTSC),1*RS232(RJ45)
Output 2*RS232(RJ45),2*BNC (PAL/NTSC)
Interfaces (option 2- With 4K input)
Input 1*DVI,1*HDMI,1* DP (Display port),1*VGA (SVGA / XGA / WXGA),2*RS232(RJ45)
Output 1* DP (Display port),2*RS232(RJ45)
Power
Power Supply AC100V~240V 50/60Hz
Maximum Power Consumption 220W
Standby Power Consumption <1W
Working Environment
Working Temperature 0℃~50℃
Working Humidity 10%-90%RH
