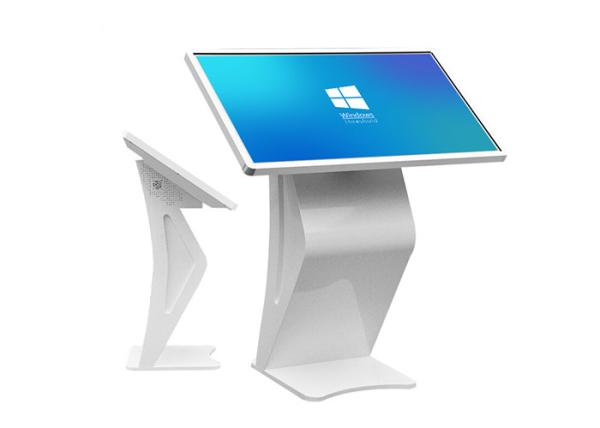

Meeting Room Touch Screen Display Stand , Electronic Digital Signage Kiosk
Meeting Room Touch Screen Display Stand , Electronic Digital Signage Kiosk
Specifications
Brand Name :
HBONY
Model Number :
HBY-W430P
Certification :
CE CCC FCC ROHS ISO9001
Place of Origin :
Guang Dong
MOQ :
1 unit
Price :
USD 600-1200 / unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
300 Units per Week
Delivery Time :
5-8 work day
Packaging Details :
Inner Foam + honeycomb box +wooden case
Installation :
Horizontal
Panel size :
43inch (16:9)
Display area :
939.2(H)X527.4（v）
Touch screen :
IR 6 POINTS
Network :
Lan,WAN,WIFI or 3G
Operating Temperature :
0°C to 40°C
Resolution :
1920*1080P
Warranty :
one whole year
Description

HBONY 43inch IR Touch Screen Digital Signage with free software



Optional Function:

1.Different software installation, software updating function

2.Multi-language OSD: English, Chinese etc

3.IR or capacitive Touch-screen, HDMI,VGA and AV port function.

4.Remote control by network with provided software.

5. Split screen display--- video area, text area,scrolling text, logo area, etc. displaying

different media content in different area.

6. Operation system: Windows,Android.

Panel Specification
Model Number HBY-W430P
Panel Size 43inch
Display area 939.2(H)X527.4(v)
Brand Lg/Samsung/Auo A grade new panel
Resolution 1920*1080
Display Color 16.7M
Pixel Pitch 0.4835(H)*0.4835(V)mm
Brightness 400cd/m*2
Back Light LED
Aspect ratio 16:09
Response time 6.5MS
Contrast 4000:1
View angle 178°/178°(H/V)
Life time >60,000 hours
Touch Panel
size 43inch
Type infrared double touch
Brand Fi-Touch/QiTuo brand
Positioning
Accuracy		 ±2mms
Transmittance ≥92%
Hardness 7H
Click Maner 6 points, multipoint(optional)
Response time <=10ms
Resolution 4096*4096
Life time Single point of more than 60 million
PC Specification
CPU Intel I3/I5/I7
Mainboard H81
HDD S-ATAII 500GB/16MB/7200rpm
Memory DDR3-1333 , 2GB (Can expanded to 4GB/8GB/24GB)
PC I/O Connectors 4 * USB 2.0, 2*PS/2,1 * RJ45, 1 * Line-in,
1 * Earphone, 1 * Microphone, 1*HDMI
Network Realtek RTL8103EL
Video Card Intergrated video card on the mainboard
Audio built-in HD audio 8(Realtek ALC888) audio system
Operating System Compatible with Window7,Window8,XP, Linux etc
WiFi model 802.11N Home using Version
OSD Language
Menu Language Chinese, English, Spanish, Russian, German, French, Arabic, etc.
Environment
Working Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Working Humidity 20%-80%
Storage humidity 5%~95%
Power
Power Supply AC 110V~240V,50/60HZ
Maximum power consumption <=180W
Standby power consumption <=1W


Meeting Room Touch Screen Display Stand , Electronic Digital Signage Kiosk
