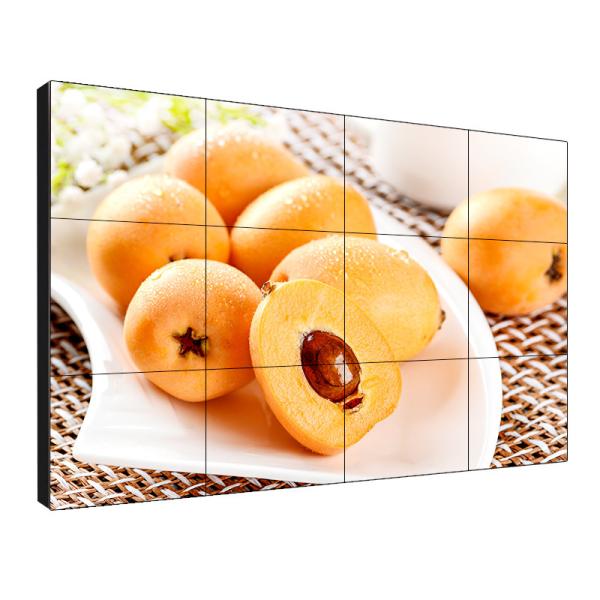

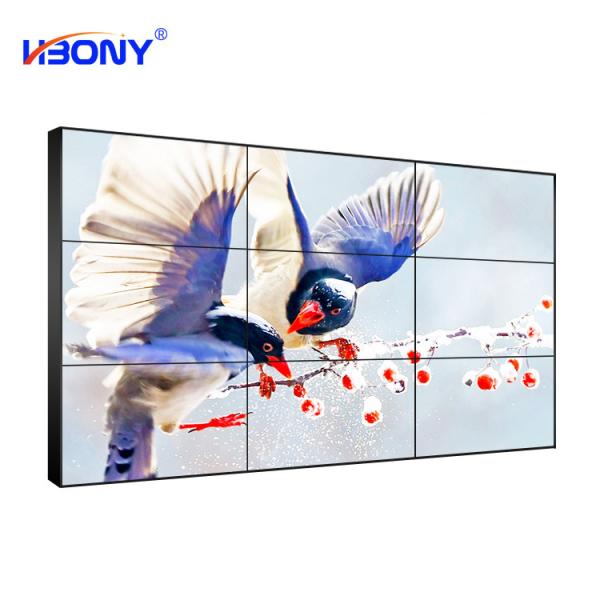

Flexible LCD Display Screen High Quality LCD Video Wall Didplay
Advantages:
1. Ultar thin design bring audience perfect visual enjoyment.
2. Lcd video wall can be used day and night continously, 7*24 hours, 365days with better reliability, unlike the common moniter, have to stop after a short while.
3. The viewing angle can reach to 178°, which is exactly suited for larger area commercial avdertising and public displaying.
4. Lcd video wall can display smooth image without large curvature and distortion.
5. LCD has uniform brightness shown in each screen with high quality after the debugging process and absolutely no flicker.
6. We carry out personalized design given that different people have different needs, we can fullfill clients' requirements .
7. The life of LCD video wall can reach more than 60,000 hours.
8. LCD video wall have less quality problems, that means it helps keep maintenance costs extremely low, making budget ecnomic.
9. Differnent Image process functions such as Single-screen display, full-screen display, arbitrary combination display, image roaming, image overlay and other functions can be selected.
10. LCD video wall is a kind of environmentally friendly product, which has less heat, no radiation, no flicker, no damage to eyes, no harmful substances for human health (such as lead, mercury, cadmium and chromium).
Main application areas:
1.Safety precautions:
financial, energy, transportation, education, government, enterprise and other monitoring and command centers

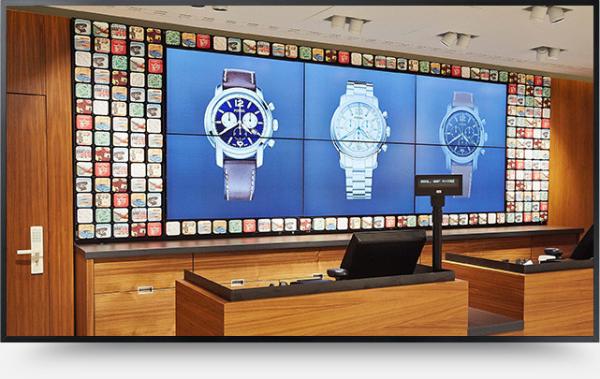

2.Public places:
airports, railways, subways, highways and other transportation industries, libraries and other exhibition places
3.Commercial demonstration:
TV studio, large-scale performance and commercial exhibition, hotel lobby, enterprises and institutions
4.Military research:
scientific research education institutions, medical institutions, military operations command, meteorological geographic survey
Specification of LCD Video Wall | ||||||
Size | 46 inch | 49 inch | 55 inch | |||
Panel Size | 46" LCD module Screen | 49" LCD module Screen | 55" LCD module Screen | |||
Backlight Type | LED | |||||
Display Area | 1018.08(H)x572.67(v)mm | 1073.8(H)*604.0(V)mm | 1209.6(H)*680.4(V)mm | |||
Aspect Ratio | 16:9 | |||||
Max Resolution | 1920X1080 | |||||
Color | 8Bit,16.7M | |||||
Brightness (nits) | 500cd/m2,700cd/m2 | 450cd/m2 | 500cd/m2,700cd/m2 | |||
Contrast | 3500:1 | 4000:1 | 4500:1 | |||
Visual Angle (H/V) | 178°/178° | |||||
Response Time | 8 ms | |||||
Life Span | >60,000 hours | |||||
Bezel width (between screens) | 3.5mm/5.5mm | 1.8mm/3.5mm | 1.7mm/1.8mm/3.5mm | |||
Product Dimension | 1021.98(L)*576.57(H)*125.7(D) | 1077.6(L)*607.8(H)*114.7(D)mm | 1213.4(L)*684.2(H)*114.35(D)mm | |||
Product Weight | 20KG | 28KG | 30KG | |||
Interfaces (option 1- without 4K input) | ||||||
Model No. | HBY-PJ4609 | HBY-PJ5509 | ||||
Input | 1*DVI,1*HD-MI,1*VGA,2*BNC (PAL/NTSC),1*RS232(RJ45) | |||||
Output | 2*RS232(RJ45),2*BNC (PAL/NTSC) | |||||
Interfaces (option 2- With 4K input) | ||||||
Model No. | HBY-DP4609 | HBY-DP5511 | ||||
Input | 1*DVI,1*HDMI,1* DP (Display port),1*VGA (SVGA / XGA / WXGA),2*RS232(RJ45) | |||||
Output | 1* DP (Display port),2*RS232(RJ45) | |||||
Power | ||||||
Power Supply | AC100V~240V 50/60Hz | |||||
Maximum Power Consumption | 180W | 200W | 220W | |||
Standby Power Consumption | <1W | |||||
Working Environment | ||||||
Working Temperature | 0℃~50℃ | |||||
Working Humidity | 10%-90%RH |
About us:
Shenzhen Unique Display Technology Co.,Ltd is one of professional manufacturers which specialized in LCD video wall,touch screen display,indoor and outdoor digital signage,CCTV monitor,ect,most of our products are have patents!
Our advantage service:
1) we have strong R-D team,which ensure our own technological and innoative product for customers!
2) we have our own housing factory,which provides customized design product 3)Factory covers 3000sm,more than 10000 customer from worldwide choose us.
Technical support:
Our tech team has more than 10years experience in LCD commerical display, the panel we adopt are 100% LG and Samsung original,which can ensure that 1 years warranty
After service:
1year for screen,3 years for PC parts and labor.within warranty period,if under correct usage,we will replace for free after technician examine the faulty product,also we provide repair service only charge components cost.
Transportation service:
We have good shipping partners,DHL/UPS/China air lines/Cosco,which can guarantee the fast and safe delivery to the customer's hand!
