Ultrapulse treatment is a "fractional" treatment that produces thousands of deep, tiny colums in your skin, called microscopic treatment zones. FLT is "fractional" in that it treats old epidermal pigment cells without affecting any of the surrounding tissue, which reduces healing time (about 24 hors) and promotes the skin's natural process for creating new, healthier tissue to replace the damaged cells.

2. Treatment Theory:

Ultra Pulse Fractional CO2 Lasers skin reconstruction system adopts the Coherent CO2 laser of America, and emits laser of 10600 nm.

The installed computer graphics generator outputs scorch batch of 50μm-80μm with a mode of scanning. It targets the water in the skin tissue, generates a certain amount of hot stripped energy, more hot solidification (compared to the fractional laser of 1550 nm ) and apparent thermal effect, the heating effect makes collagen contracted, (compared to the fractional laser of 1550 nm ).

The hot solidification and hot stripped energy forms minimally invasive puncture about 0.10 mm in diameter,about 2-4 mm in depth (the depth relates to the maximum depth that changes the Solar elastic fibers),

then the thermal bridge is produced between traumatic holes.

Thus starts the skin wound repair mechanism (inflammatory phase,Proliferation phase, and reshape phase ), a lot of new collagen is produced,

then the frame structure of derma is reconstructed, facial contour sculpture, and wrinkles disappear, the skin become delicate, the acne and scar is smoothed.

3. Specifications:

• Laser type: USA Coherent laser (RF pipe)
• Wavelength:10600nm
• Power:40W
• Laser working mode: Continuous
• Output mode: Ultra pulse, single pulse, fractional
• Fractional working mode: Interval continuous working
• Pulse width: 1-100ms
• Outpu graphics: 7 kinds graphics
• Light guiding system: 7 joints arm
• Scanning mode: Sequence mode, mid split mode, random mode
• Spot size: 0.1mm
• Scan pattern size: 0.1*0.1mm-20*20mm
• Scan area: Maximum 25*25
• Aiming beam: 650nm, ≤ 5mv
• Cooling system: Wind cooling
• Voltage: AC220V±10% 50HZ , 110v±10% 60HZ

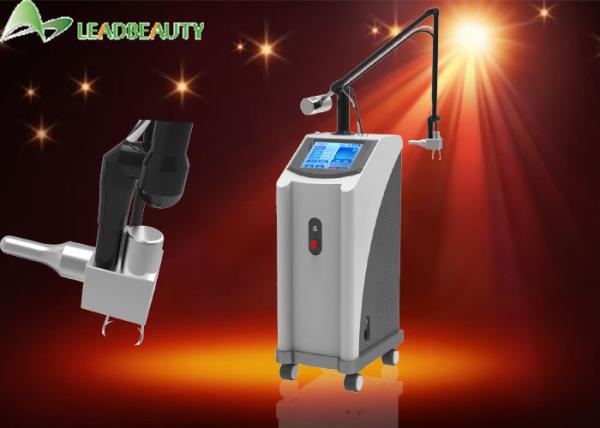

4. Alive machine details:

5. RF CO2 laser characteristics:

--- 100% USA Coherent Laser RF Tube.

--- Seven scan shapes and three scan modes.

--- Multifunctional 3 in 1 system: Cutting, Fractional and Vaginal.

--- Excellent 7 articular optical arm,

easy operation and perfectly reduces energy loss.

--- Big touch screen and microprocessor controlled software to achieve

a controllable precise treatment.
