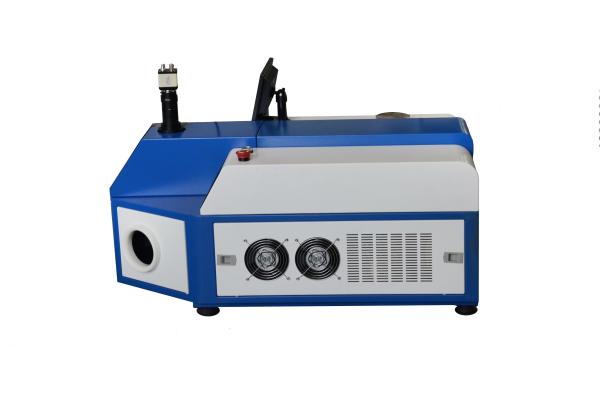

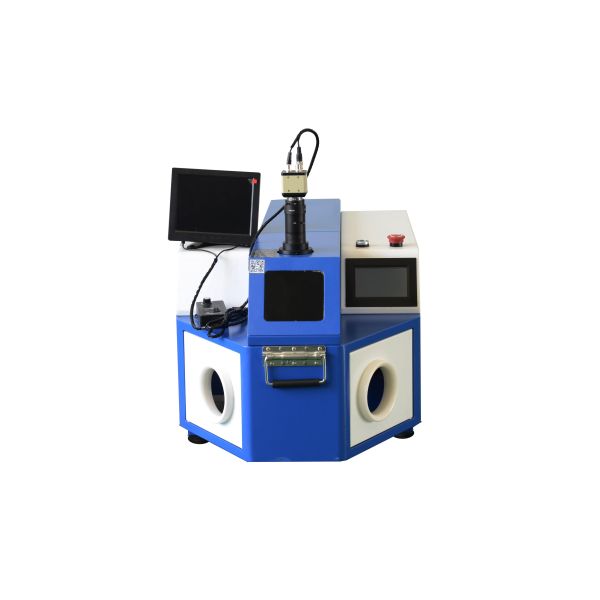

Portable Jewelry Soldering Machine Laser Welding Machine for Ring , Watches , Glass
Portable Jewelry Soldering Machine Laser Welding Machine for Ring , Watches , Glass
Portable Jewelry Soldering Machine Laser Welding Machine for Ring , Watches , Glass
Portable Jewelry Soldering Machine Laser Welding Machine for Ring , Watches , Glass
Specifications
Brand Name :
Leadboom
Model Number :
LB-TW80
Certification :
CE
Place of Origin :
China(Mainland)
MOQ :
1 Set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 Set/Year
Delivery Time :
7 Working day after payment
Packaging Details :
Wooden case
Model :
LB-TW-80
Laser :
Yag Laser
Max peak power :
≤4.5 KW
Pulse Length :
1-5ms
Laser frequency :
1-12Hz
Light spot size :
0.1-2.0mm
laser cooling system :
Internal Water-air system
Dimension :
1050*560*650mm
Description

Portable Jewelry Laser Welding Machine for Ring, Watches, Glass

Machine Profile

LB-TW80 Laser Welding Machine is specially designed for jewelry industries and electronics, which imported advanced technology and adopts high quality accessories, the whole machine is more efficient, more durable, more convenient and environmental protection.

Technical Parameters

Model LB-TW80
Laser source type Nd:YAG
Laser wavelength 1064nm
laser class 4
Pulse output energy 0.5-60J
Average laser power 80W
Pulse width 1-5ms
Pulse frequency 1-6Hz
Spot diameters 0.1-2.0mm
Focusing system Microscope + automatic light-filtering protection system
Cooling system Internal water-air system
Power 220V / 50Hz
Machine Size 1050*560*650mm
Weight 60KG

Portable Jewelry Soldering Machine Laser Welding Machine for Ring , Watches , Glass

Technical Advantages

The whole machine with ergonomics design, more suitable for jewelry industry, nice appearance, stable performance, to meet the requirements for long time continuous work.

Applicable for welding and repairing metal materials, including stainless steel, 18K gold, platinum,925 silver and other metals.

Big internal space, convenient to put the tool and fixture.

Switch for adjusting laser parameters installed in working area, easy to operate.

Adjustable LED shadowless lamp, imported microscope, more clear to observe the welding position.

Water-air cooling system internally installed, machine with small volume, low power consumption, no need industrial power, convenient to operate in small shop or factory.

Small heating affects for welding, strong joints with nice and smooth surface, convenient operation, fast speed, high efficiency, more depth, less distortion, efficient environmental protection and pollution-free

High-definition CCD monitor is more convenient to observe the welding position. (Optional)

Production Application of laser welding machine

Laser welding can be used to the welding between the same metal materials, such as Titanium, Nickel, Tin, Zinc, Copper, Aluminum, Chromium, Niobium, Gold, Silver and all kinds of Alloy.

This machine is applied to a variety of industries, such as Mobile Communications, Electronics, Clocks and watches, Glasses, Jewelry Accessories, Metal products, Precision Instruments, Medical Equipment, and etc.
