Metal Wire Laser Cutting Machine Price , Copper Wire Laser Stripping Machine

Machine overview

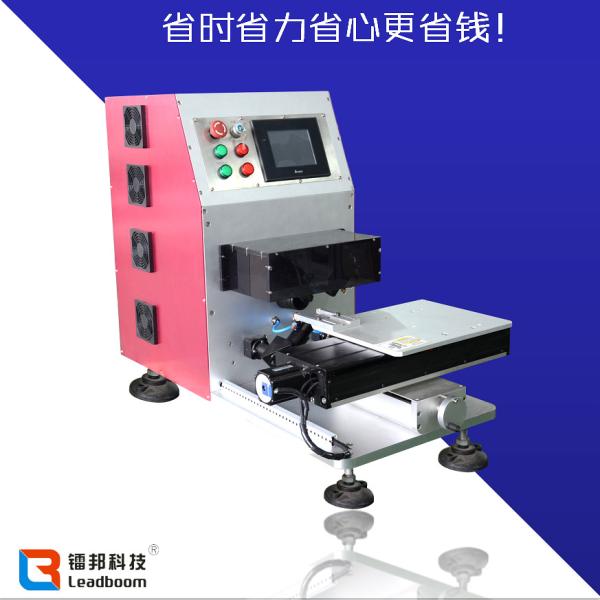

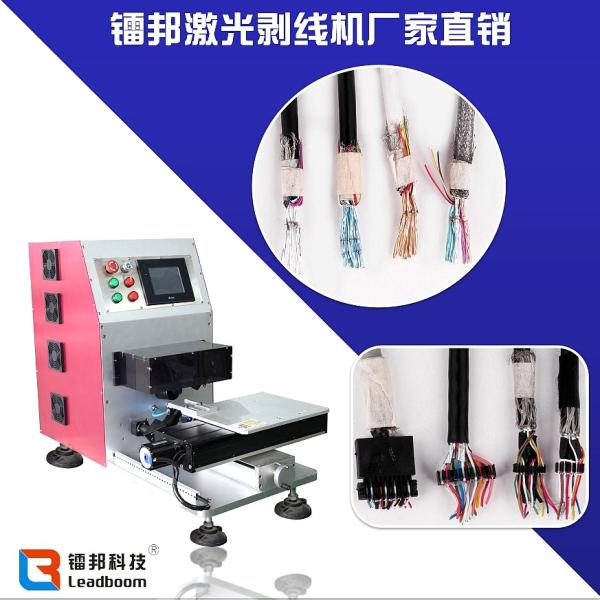

LB-RFBD20 laser stripping machine is our self-developed product, specialized for stripping metal shield wire
Provides good solutions for machining fine coaxial metal shield wire (braided wire) within below #AWG52, no need invert for processing, high production efficiency Machine performance is stable and reliable, can be continuously working 24-hour with full-load operation

Technical advantages

• Design with double laser device and four-line optical, stable and reliable structure to ensure completely stripping wire shield on both sides
• Adopted fiber laser system, high beam quality, stable power, low power consumption, no consumables, and low processing cost
• Integrated design of the overall structure, nice appearance, friendly operation
• Equipped with movable X-Y axis, the stripping position can be adjusted freely, can process several wires at one time
• Adopted imported PLC controller and touch-screen with complete function, simple and easy operation, it can set up and retain several processing files
• Adopted precision linear motion module, which is of high precision, low noise and fast speed
• Professional for processing fine and thin metal shield wire below #AWG52
• Strip off the coaxial wire with metal shield effectively, without any transform and harm on the insulating layer, conductor, 100% finished products
• Completely non-mechanical contact processing, without any compression or mechanical stress for the materials, good quality on processing
• Can realize to process the fine and thin coaxial wire automatically equipped with CO2 laser stripping machines

Application field

LCD displays, mobile phone, notebook computers, video cameras, digital cameras, electronic dictionary, medical equipment and other industries internal data lines, signal lines, coaxial cable shielding layer stripping, particularly applicable to line below AWG# 52
