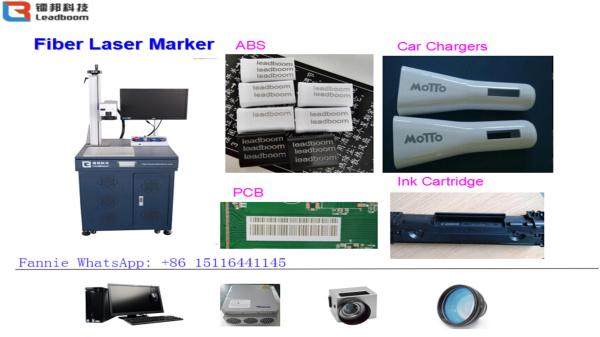

30W Air Cooling Fiber Laser Printing Machine Glasses Clocks watches

fiber laser printing machine is the world's most advanced laser marking equipment.It can be widely used in various lines and high-speed static marking and flying marking industry to meet a variety of high-precision,high-efficiency laser marking needs, using the world's leading fiber lasers and imported spare parts,high marking precision,speed fast, stable performance, long time service life.

Fiber laser marking machine Advantage

1) Under operation system: windowns xp , windowns 7 ,windows8/10

2) Support Characters , digital, series NO, Date codes

3) Various types of fonts are supported. Such as TrueType, JSF(Single line font ), DMF(Dot Matrix Font,One-Dimensional bar code, Two-Dimensional bar code , and so on

4) Common types of images are supported. (bmp, jpg, gif, tga, png, tif…)

5) Common vector images are supported. (ai, dxf, dst, plt…)

6) Flexible variable text : changes the text real time while in laser processing . Excel datasheet is supported.

7) Imported fiber laser system

8) Excellent optical mode, long operating life, up to 100,000HS

9) The highest electro-optical conversion efficiency, up to 80%, but gross power less than 600W

10) Small size, steady, without maintenance, easy to operate

11) High precision, suited for fine processing on all metal and some non-metal.

12) This machine adapts the fiber laser and has high electro- optical conversion rate, the quality of laser

beam is good,cooling withair- cooling methods, it has smaller shape, low power and much more energy-efficient.

13) Divergent Angle is about a quarter of the pump laser semiconducto, especially mainly used in precise,

fine marking3,low using cost, electro-optic conversion efficiency is up to 30%

Fiber laser printing machine description

1)Aircooling, compact machine,output beam quality, high reliability, no consumables, maintenance-free.

2) Long life working. Import Germany IPG fiber laser, the international latest, most reliable structure, small

size, power consumption is small, no high-voltage without large water-cooled system

3) Close to the ideal beam, USB interface, output control, optical scanning system, laser repetition rate high,

high-speed without distortion.

Technical Advantages:

• Using the third generation of optical fiber solid laser, the electro-optical conversion efficiency of pump light source can reach to 80% after fiber coupling. Higher beam quality, long use time, laser life can reach 50000 hours (Lamp pump YAG is around hundreds of hours, semiconductor is around 10000 hours).
• Perfect beam quality achieved the highest and excellent marking effect. And it has great advantages of doing anti-white,matte,chromatic...on the stainless steel.
• Adopted high-speed scanning head, and combined with software makes marking very fast, so the processing speed is 3 to 5 times quicker than the ordinary YAG and DP semiconductor.
• Air-cooling, no consumables, free maintenance, save power and energy(total power is 500W), low cost of latter usage, the annual electric savings would be around USD3000-5000.
• High electrooptical efficiency: integrated electooptical efficiency reaches above 20%, greatly saved power consumption and operation cost.
• Absolutely environmental marks without intermediate mediators involved in processing
