Specifications
Brand Name :
Leadboom
Model Number :
LB-FC
Certification :
CE
Place of Origin :
China
MOQ :
1set
Packaging Details :
package in wooden case
Supply Ability :
10000000 set/year
XY table :
200*200mm
Power Supply :
AC220V/50Hz 5A
Repeated precisio :
±0.02mm
Pulse Width :
1Hz~1000Hz
Laser type :
Fiber Laser source
Laser Wavelength :
1064mm
Beam Quality :
<1.8
Applicable Material :
Applicable Material
Description


Raycus 60W Stainless Steel Cut 1mm Fiber Laser Cutting Machining Brass Gold Metal piece


Raycus Thin Metal Sheet Fiber Laser Cutting Machine With Joint Cutting Size Adjusted

Raycus Thin Metal Sheet Fiber Laser Cutting Machine With Joint Cutting Size Adjusted

Raycus Thin Metal Sheet Fiber Laser Cutting Machine With Joint Cutting Size Adjusted

1.Work Principle

Adopted the latest fiber laser source and high-speed scanning cutting system, combined with X-Y precision movement module structure.

Stable output power, good optical mode, excellent beam quality and wide application materials. Fully meet customer’s demand for mass

production. No malfunction with long time operation, zero maintenance. Especially for thin metal sheet cutting.
2. Machine Feature
1. Adopted fiber laser source,high electro-optical conversion efficiency

2. Using high speed cutting head with stable performance
3. Specially developed for thin metal sheet, joint-cutting size can be adjusted.

4. With laser marking function,one model for multi-purpose.

5. Cutting area can be customized-made according to customer’s requirements.
6. Air-cooling, no consumables, low operation cost, power & energy saving.

7. One modular design, easy maintenance, small volume can save more space in workshop.
8. Environmental-protecting & permanent marking to meet RoHS standard.
Software Function
1. Support BMP,JPG,DXF,PLT,AI and other file formats.
2. Automatically generated serial number, production date, one-dimensional codes, QR codes.


3. Technical Parameters(Fiber Laser Cutting Machine)

Fiber Laser Cutting Machine
Model LB-FC60
Laser type Fiber Laser source
Cooling system Air-cooling
Laser Power ≤60W
Laser Wavelength 1064nm
Beam Quality <1.8
Laser Frequency 1Hz~1000Hz
Pulse Width 10-350ns
Cutting area 100×100mm
XY Table 200×200mm
Cutting Thickness ≤1mm
Cutting Speed

0-100mm/s
(0.8mm/s SS304)
Machine Power 1000W
Min.Line Width 0.01mm
Repeated precision ±0.02mm
Power Supply AC220V/50Hz 5A
Machine Dimensions 650mm×850mm×1450mm




4. Application Fields for Fiber Laser Cutting Machine

Application materials

Application for cutting metal materials, such as gold,silver, stainless steel, aluminum...and other thin metal sheet.
Application fields

Jewelry, metal crafts, Precision machinery, sanitary fittings, measuring and cutting tools, clocks, glasses, electronic components,

electrical appliances, metal jewelry, hardware and tools, mobile communications components, auto parts, plastics, medical equipment,

construction material pipes and other high-precision marking on objects.

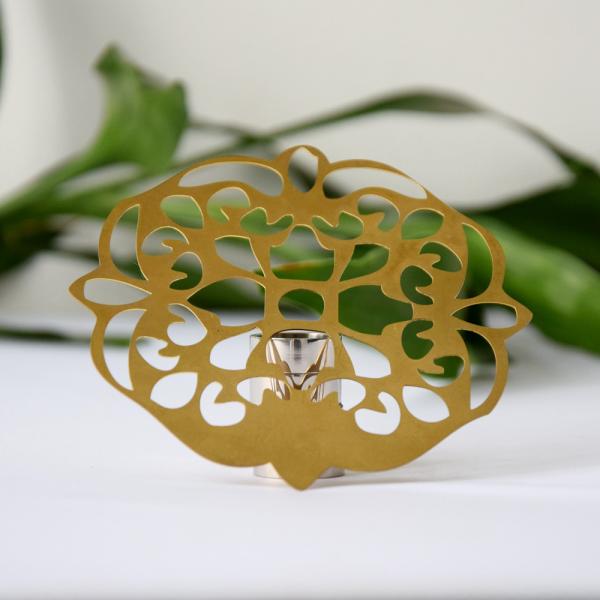

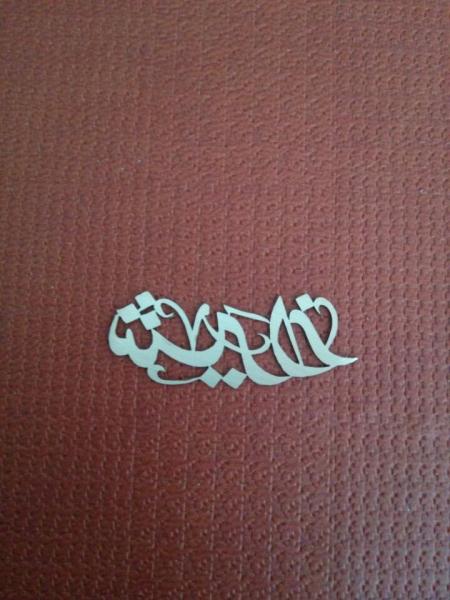

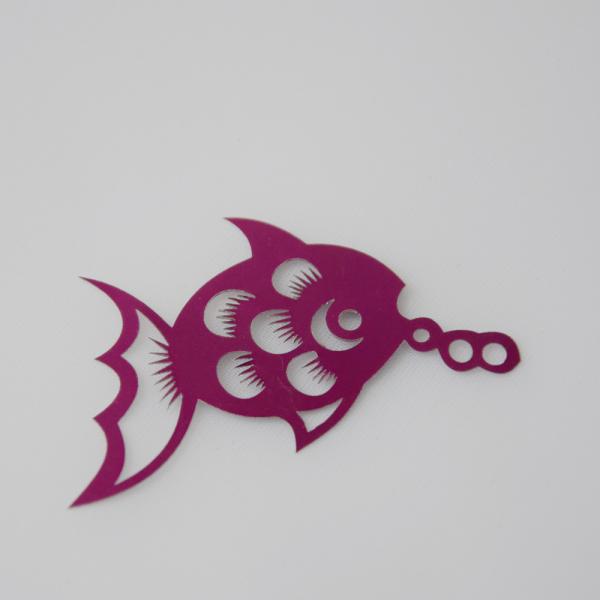

Sample photos:

Raycus Thin Metal Sheet Fiber Laser Cutting Machine With Joint Cutting Size Adjusted

5. Factory Image
Raycus Thin Metal Sheet Fiber Laser Cutting Machine With Joint Cutting Size Adjusted
6. Package Image
Packing dimension: 900x780x1300mm
Raycus Thin Metal Sheet Fiber Laser Cutting Machine With Joint Cutting Size Adjusted

Company:

Dongguan Leadboom Photoelectronic Technology Co., Ltd is a professional manufacturer of R&D,
producing and selling laser machinery, the main products included fiber laser marking machine, laser
engraving machine, CO2 laser marking machine, laser welding machine, laser cutting machine, laser
stripping machine and so on.

All the kinds of machines is widely used in different fields with high precision: jewelry, hardware tool, stainless steel,
aluminum, LED lighting, auto accessories, clocks and watches, electronic components, food package, beverage, industrial plastic...etc.
Raycus Thin Metal Sheet Fiber Laser Cutting Machine With Joint Cutting Size Adjusted
Raycus Thin Metal Sheet Fiber Laser Cutting Machine With Joint Cutting Size Adjusted
