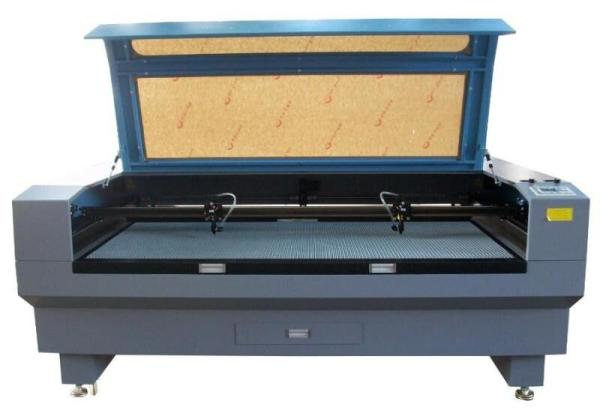

130W LB-CE1610 Co2 Laser Cutting Machine

Brief introduction:

The machine is used in wood, cloth, paper, leather, bamboo. composite materials, fiber, and nonmental material, etc.

Product display

Technical parameters

Applicable fields:

1.Advertising industry: Acrylic plate color board and other advertising materials engraving and cutting.

2.Leather garment processing industry: Leather, fabric carve orhollow out patterns.

3.Arts and crafts industry: Paper cutting, wood, bamboo, leather, shell, and other materials engraving and cutting.

4.Packaging industry: Rubber printing plate engraving cutting, bilayer plate, etc.

5.Decoration industries: Electrical and electronic industry materials'engraving and cutting.

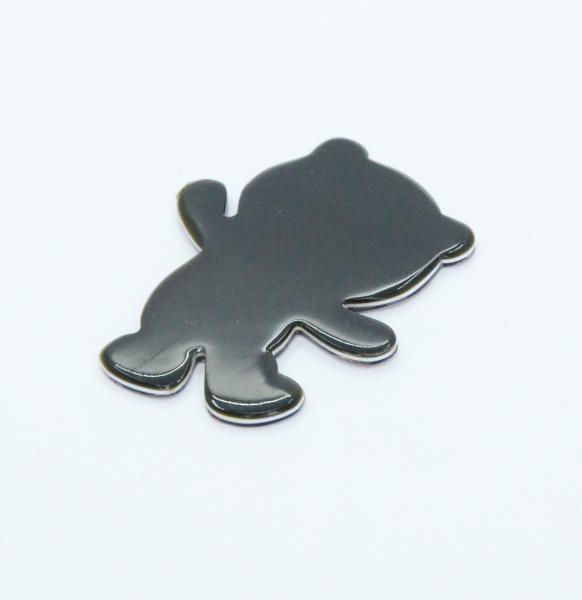

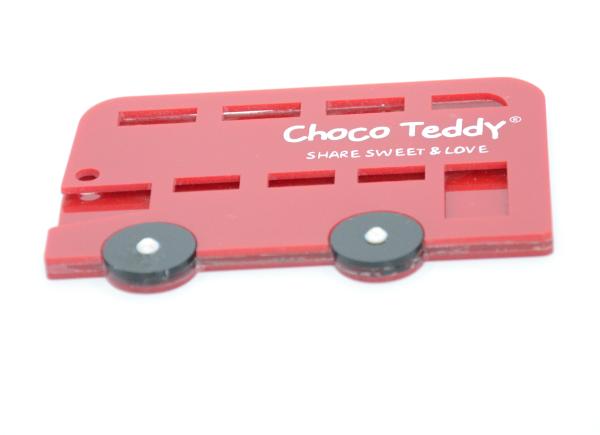

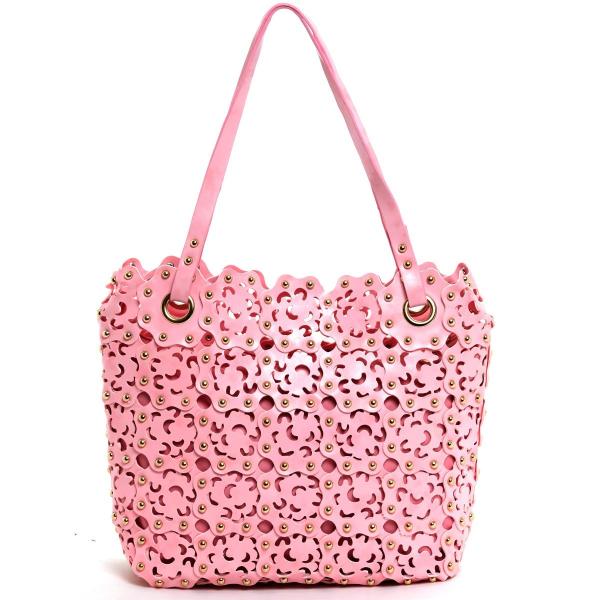

Samples of laser cutting machine

Features

1.USB off-line motion control system and interface.

2.Strong and stable mechanical structure, digital control.

3. The focus lamp and bottom of the silicon gilded mirror is imported from America.

4.Double-laser cutting, high efficiency.

Parts of laser cutting machine

Package

We will put the machine into the wooden cases, and then on to fumigation instrument disinfection effect, in order to achieve export approval.

Packing dimension: 2X1.35X1.15m

Volume: 3.11CBM

Gross weight: 200kg

After-sale

l We will train 1-2 technicists for free.

l Training details: the machine’s operational principles, the machine’s system and structure, the safety and maintenance, software, the processing technique, and so on.

l All of our machines will be full-checked by our quality control department before the shipment. We make sure that customers will get good products from us. and all of our machine with a 12 months quality guarantee period.

l We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine. We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in the English version) to you, which is easily understood and handle by the customer.

l We will offer plenty of online supports, just like detailed technical and installation instructions by email, video, telephone, and fax.

Our company

Dongguan Leadboom Photoelectric Technology Co., LTD., is dedicated to researching and developing laser equipment and mass manufacturing for our customers overseas since 2002. And we have built long term strategic partnerships with COHERENT, SYNRAD, II-VI from the US, and MITSUBISHI, Panasonic from Japan, and Rofin, IPG from Germany, etc. Our main products including CO2 laser wire stripping machine, fiber laser wire stripping machine, fiber laser marking machine, CO2 laser marking machine, CO2 laser cutting machine, laser engraving machine, solid laser welding machine series over 20 sets of laser equipment, etc.

Maintenance of laser cutting machine

Oil the linear rolling guides:

Power of the laser cutting machine, clean the guides with neat cloth, then daub the guides with lubrication oil. After that, make the slide block slip along the guides several times, to ensure the lubrication oil goes inside the slide block.

Oil the bearings regularly:

wipe away the ash on the surface of bearings with clean soft cloth, use the needle tube to take some engine oil and then put it into the bearings, at the same time, rotate the bearings.

Cleanness of the reflecting mirror and the focusing mirror:

Clean the 3 pieces of reflecting mirror and the 1 piece of focusing mirror with anhydrous alcohol

Adjusting the synchronous belt:

There are several synchronous belts in the drive system of the laser cutting machine if the belts are too loose, double visions may appear while engraving. If the belts are too tight, the wastage of the belts may be great and quick. After being used for a period of time, please adjust the screws of the belts, make them fit for engraving without double visions and lowering the noise.

Maintenance of the laser tube:

Put some vinegar into the circular water and use clean water to clean up the laser tube, so that the laser tube may be in the best condition of working and the life span of it may the extended a lot.
