Dog Tag Laser Marking Machine Stainless Steel Metal Copper Aluminium deep marker

Technical Advantages

1 Using the third generation of optical fiber solid laser, the electro-optical onversion ecfficiency of pump light source can reach to 80% after fiber coupling. Higher beam quality, long use time, laser life can reach 80000 hours(Lamp pump YAG is around hundreds of hours, semiconductor is around 10000 hours).

2 Perfect beam quality achieved the highest and excellent marking effect. And it has great advantages of doing anti-white,matte,chromatic...on the stainless steel.

3 Adopted imported high-speed scanning head, and combined with software makes engraving very fast, so the processing speed is 3 to 5 times quicker than the ordinary YAG and DP semiconductor.

4 Air-cooling, no consumables, free maintenance, save power and energy(total power is 500W), low cost of latter usage, the annual electric savings would be around USD3000-5000.

5 High electrooptical efficiency: integrated electooptical efficiency reaches above 20%, greatly saved power consumption and operation cost.

6 Absolutely environmental marks without intermediate mediators involved in processing, completely in conformity with ROHS Standards.

7 Integrated modularization design, convenient maintenance, and the small volume can save more space.

8 Support JPG, PNG, BMP, PLT, DST, DXF, CDR, AI, DSB, GIF, MNG, TIF, TGA, PCX, JP2, JPC, PGX, RAS, PNM, SKA, RAW and other documents, and can form the serial number,production date, bar code and QR code automatically.

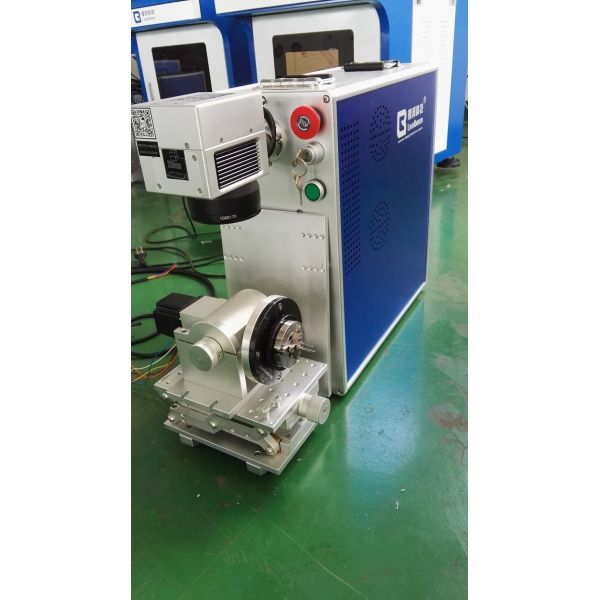

(9)Optional rotary workable and other automated matching system.


Standard Accessories (Portable Fiber Laser Marking Machine)
(1) A set of 20W Fiber Laser Device (Raycus laser source)
(2) A set of Scanning System (Galvotech)
(3) A set of high-speed Scan Lens (Singapore Ronar-Smith)
(4) 110mm x110mm Fiber Focus Lens (Singapore Ronar-Smith)
(5) A set of Laser Beam Expanders (Singapore Ronar-Smith)
(6) Motion control card
(7) A set of marking control system
(8) A set of marking software
(9) An industrial computer
(10) A red laser pointer
(11) A pedal switch
(12) Working table(200mmX150mm)
(13) Laser power supply
(14) Laser equipment cabinet





Optional accessory


Application Fields

A Materials: metal and various nonmetal materials, high hardness alloy steel, oxide, electroplating and vacuum plating, epoxy resin, printing ink, ABS and other engineering plastic.

B Industry: plastic keypad, components of digital products, electronic components, electrical appliances, jewelry, precision machinery, hardware accessories, glasses, clocks and watches, vehicle and motor accessories, sanitary ware, communication products, medical devices, integrated circuit(IC), building material, pipe materials, more suitable for the marks of high demand of accuracy, speed and depth.
