Specifications
Brand Name :
USA Synrad Laser
Model Number :
LB-MC30
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 Sets Per Month
Delivery Time :
7 working days
Packaging Details :
Standard Export Wooden Case (Polywood)
Laser Power :
30W
Laser Source :
Synrad CO2
Laser Wavelength :
10640nm
Pulse Frequency :
≤50KHz
Engraving Area :
70x70mm~300x300mm
Engraving Speed :
≤7000mm/s
Cooling System :
Air-cooling
Repeated Precision :
±0.003mm
Power Supply :
220V / 50Hz
Power Consumption :
0.8KW
Laser Materials :
Wood Paper Bamboo PU Leather Plastic Acrylic Glass
Description

Printing Bar Code CO2 Laser Marking Machine Paper Sticker Box Cardboard Product

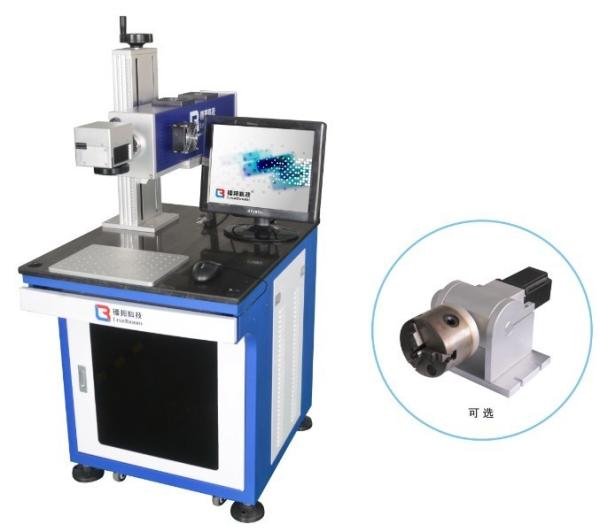

Machine Description

LB-MC series CO2 laser engraving machine adopted with advanced CO2 RF laser device and high stale laser power, and equipped with high quality optical elements, automatic control system driver and high-speed scanning galvanometer system.

Features of co2 laser marking machine

1 ) The machine takes 10w-60w RF Laser Tube (Imported from USA) as the laser source. By 2D fast-speed scan lens swinging as the set angle under controlling of PC, the laser beam focus on surface of work piece.
2 ) Use Air Cooling to cool the heat from laser tube, have very good cooling effect.
3 ) High-rate of optic transfer rate, good quality laser beam, long time working life and free of maintenance.
4 ) Using fast-speed scan lens, it can be the graph in shortest time and finish fine marking process.
5 ) It can equip with additionally automatic rotary clamp, baiting production line.
6 ) It can mark data, series number & bar code automatically. Available for data communication networking.

Applications of co2 laser marking machine:

It mainly applied in food printing, medicine printing, soft-drink printing ,cigarette code, wines

industry ,mineral water ,daily cosmetic ,wires and cables and all kinds of production lines .

Technical Data of co2 laser marking machine:

Type LBMC60 LBMC10 LBMC30 LBMC60
Laser Output Power:

60W Chinese Co2

Laser Tube

10W RF Laser

Tube

30W RF Laser

Tube

60W RF Laser

Tube
Laser Tube Origin Made In China Made in USA Made in USA Made in USA
Life Time of Laser Tube 1500-3000 hours

Lifetime >20000 hours

Can be re-charged after used up
Laser Beam Quality Common Excellent Beam Quality
Cooling Method Water Cooling

Air Cooling

No need change water
Machine Size: Big Compact
Marking Speed: 0-5000mm/second 0-8000mm/second
Standard Working Area: 110mm×110 mm
Optional Working Area: 70mm×70mm,175mm×175mm (Optional)
Marking Depth: 0.01~0.3mm
Marking Speed: C
Repeated Accuracy: 0.01mm
Laser Wavelength: 1064um
Minimum Line Width: 0.015mm
Power Supply: 380V/50HZ
Machine Power: 2KW

Standard Accessories (CO2 Laser Engraving Machine)

A set of USA SYNRAD Laser Source

A set of Galvo tech Scanner

A set of focus lens
A set of high-speed vibrating mirrors
A set of marking control system (Original version)
An industrial computer
A marking work table
A red laser pointer
A pedal switch
A set of marking software (EZCAD)

Accessories (Optional)

No Consumables Jewelry Engraving Machine , Small Laser Engraver With High Stale Laser Power

Application Field

A. Materials: wood products, paper, cloth, leather, organic glass, acrylic, epoxy resin, unsaturated polyester resin and other non metal materials.

B. Industry: craft gift,furniture, leather and cloth, advertising signs, model products, food packaging,electronic components, pharmaceutical packaging, printing plate, nameplate, case and so on.

No Consumables Jewelry Engraving Machine , Small Laser Engraver With High Stale Laser Power

No Consumables Jewelry Engraving Machine , Small Laser Engraver With High Stale Laser Power

No Consumables Jewelry Engraving Machine , Small Laser Engraver With High Stale Laser Power

No Consumables Jewelry Engraving Machine , Small Laser Engraver With High Stale Laser Power

No Consumables Jewelry Engraving Machine , Small Laser Engraver With High Stale Laser Power

No Consumables Jewelry Engraving Machine , Small Laser Engraver With High Stale Laser Power
