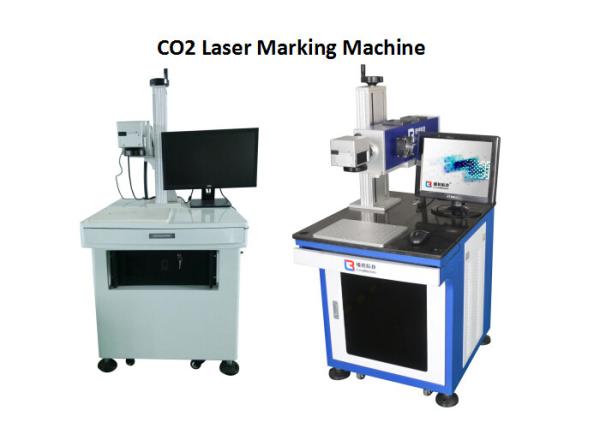

Long Service Life Co2 Laser Engraver Machine 30w For Non Metal Materials
Long Service Life Co2 Laser Engraver Machine 30w For Non Metal Materials
Long Service Life Co2 Laser Engraver Machine 30w For Non Metal Materials
Long Service Life Co2 Laser Engraver Machine 30w For Non Metal Materials
Specifications
Brand Name :
USA Synrad Laser
Model Number :
LB-MC30
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30 Sets Per Month
Delivery Time :
7 working days
Packaging Details :
Standard Export Wooden Case (Polywood)
Laser Power :
30W
Laser Source :
Synrad CO2
Laser Wavelength :
10640nm
Pulse Frequency :
≤50KHz
Engraving Area :
70x70mm~300x300mm
Engraving Speed :
≤7000mm/s
Cooling System :
Air-cooling
Repeated Precision :
±0.003mm
Power Supply :
220V / 50Hz
Power Consumption :
0.8KW
Laser Materials :
Wood Paper Bamboo PU Leather Plastic Acrylic Glass
Description

Coconut Laser Engraving Machine Wood Craft Acylic Stone Leather Plastic Bamboo

Machine Profile

LB-MC series CO2 laser engraving machine adopted with advanced CO2 RF laser device and high stale laser power, and equipped with high quality optical elements, automatic control system driver and high-speed scanning galvanometer system.

Detailed Configuration and Accessories Picture

A . Industrial computer can adapt to harsh environments
B . Radio frequency laser imported from United States
C . lens and beam expander system imported from U.S.
D . High-lift platform imported from U.S.
E . Industrial Chiller
F. Industrial control computer and DP semiconductor power system.

Product features

a ) Leadboom semiconductor laser marking machine adopts the most advanced semiconductor pump technology, small size, low energy consumption.

b ) Lightmodel is good, marking a more sophisticated, replace lamp pumped laser marking machine marking a new generation of equipment, products canbe a long time high load, spot fine, big power, high efficiency, low energy consumption, maintenance-free

c ) Suitable for rally marked the products that require high precision high-speed or line marking.

such as marking the trade mark ,logo on the metal material

Technical Parameters

Model

 LB-MC10 LB-MC30 LB-MC60

Laser Power

 0~10w 0~30w 0~60w

Laser wavelength

 10640nm 10640nm 10640nm

Pulse frequency

 ≤50kHZ ≤50kHZ ≤50kHZ

Working area

70X70mm,110×110mm (optional)

110X110mm,140×140mm (optional)

 175X175mm,250×250mm (optional)

Marking speed

 ≤7000mm/s ≤7000mm/s ≤7000mm/s

minimum line width

 0.04mm 0.05mm 0.06mm

Repeated precision

 ±0.003mm ±0.003mm ±0.003mm

Cooling system

air-cooled

air-cooled

air-cooled

Power supply

 AC220V/50HZ AC220V/50HZ AC220V/50HZ

power consumption

 ≤0.5KW ≤0.8KW ≤2KW

Dimension

 820mm×620mm×1360mm 860mm×620mm×1360mm 1200mm×620mm×1500mm

Long Service Life Co2 Laser Engraver Machine 30w For Non Metal Materials

Long Service Life Co2 Laser Engraver Machine 30w For Non Metal Materials

Standard Accessories (CO2 Laser Engraving Machine)

A set of USA SYNRAD Laser Source

A set of Galvo tech Scanner

A set of focus lens
A set of high-speed vibrating mirrors
A set of marking control system (Original version)
An industrial computer
A marking work table
A red laser pointer
A pedal switch
A set of marking software (EZCAD)

Accessories (Optional)

Long Service Life Co2 Laser Engraver Machine 30w For Non Metal Materials

Application Field

A. Materials: wood products, paper, cloth, leather, organic glass, acrylic, epoxy resin, unsaturated polyester resin and other non metal materials.

B. Industry: craft gift,furniture, leather and cloth, advertising signs, model products, food packaging,electronic components, pharmaceutical packaging, printing plate, nameplate, case and so on.

Long Service Life Co2 Laser Engraver Machine 30w For Non Metal Materials

Long Service Life Co2 Laser Engraver Machine 30w For Non Metal Materials

Long Service Life Co2 Laser Engraver Machine 30w For Non Metal Materials

Long Service Life Co2 Laser Engraver Machine 30w For Non Metal Materials

Long Service Life Co2 Laser Engraver Machine 30w For Non Metal Materials
