Cable Laser Stripping Machine / 10640nm Wavelength Laser Peeling Equipment
Cable Laser Stripping Machine / 10640nm Wavelength Laser Peeling Equipment
Cable Laser Stripping Machine / 10640nm Wavelength Laser Peeling Equipment
Cable Laser Stripping Machine / 10640nm Wavelength Laser Peeling Equipment
Cable Laser Stripping Machine / 10640nm Wavelength Laser Peeling Equipment
Cable Laser Stripping Machine / 10640nm Wavelength Laser Peeling Equipment
Cable Laser Stripping Machine / 10640nm Wavelength Laser Peeling Equipment
Cable Laser Stripping Machine / 10640nm Wavelength Laser Peeling Equipment

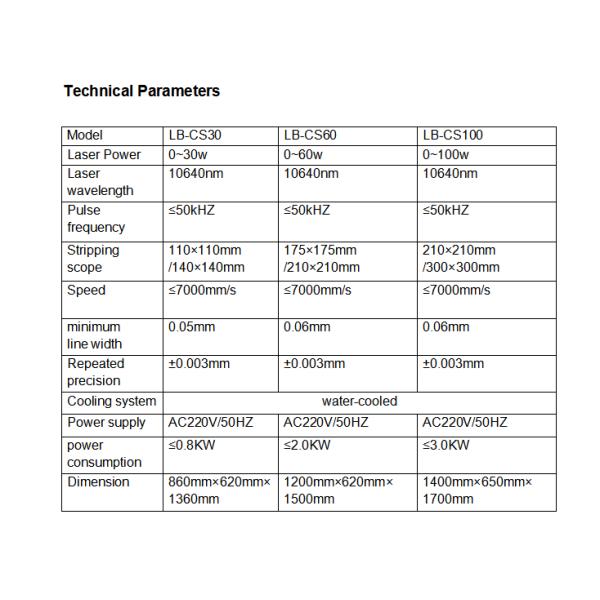

Specifications
Brand Name :
Leadboom
Model Number :
LB-CS
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
8000 USD
Payment Terms :
L/C, T/T
Supply Ability :
1000000 set / year
Delivery Time :
5 work day
Packaging Details :
package in standard wooden case
Model :
LB-CS30
Power :
0~30w
Laser wavelength :
10640nm
Pulse frequency :
≤50kHZ
Stripping scope :
110×110mm /140×140mm
Speed :
≤7000mm/s
minimum line width :
0.05mm
Repeated precision :
±0.003mm
Cooling system :
water-cooled
Power supply :
AC220V/50HZ
power consumption :
≤0.8KW
Dimension :
860mm×620mm×1360mm
Description

High-frequency transformer or cable laser stripping machine

laser peeling machine

LB-CS Laser Stripping(peeling) Machine is professionally designed for

stripping three-layer insulated wires in transformer industries, with good

results, fast speed, stable performance, to meet the needs for long time

production.

Cable Laser Stripping Machine / 10640nm Wavelength Laser Peeling Equipment

Cable Laser Stripping Machine / 10640nm Wavelength Laser Peeling Equipment

Technical Features

1. The core components adopted USA imported RF metal laser source,

with long service life, the cavity always can be used.

2. Stripping with high precision, PIN feet stripping can be finished in one

time within the working area, no damage on conductors.

3. Stripping with fast speed, it only takes 0.2s for each Pin, can be equipped

with the automatic production line.

4. Immersing tin with fast speed after stripping, it can prevent materials

damages from a long time immersing tin with high temperature.

5. High electro-optical conversion efficiency, the whole power consumption

is less than 800W, without consumable costs, low carbon and environmental protection.

6. Controlled by computer, professional stripping control software that stripping

shape, position, size, power, speed can be set freely, also can operate with multiple drawings.

7. The equipment can be widely used in different materials, also can strip on

and electronic wires.

8. Professional low noise and the strong smoke exhausting device is optional.

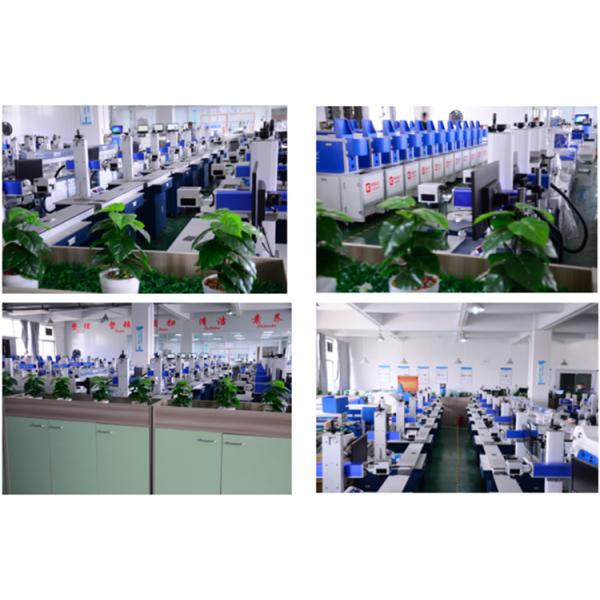

Company introduction:
