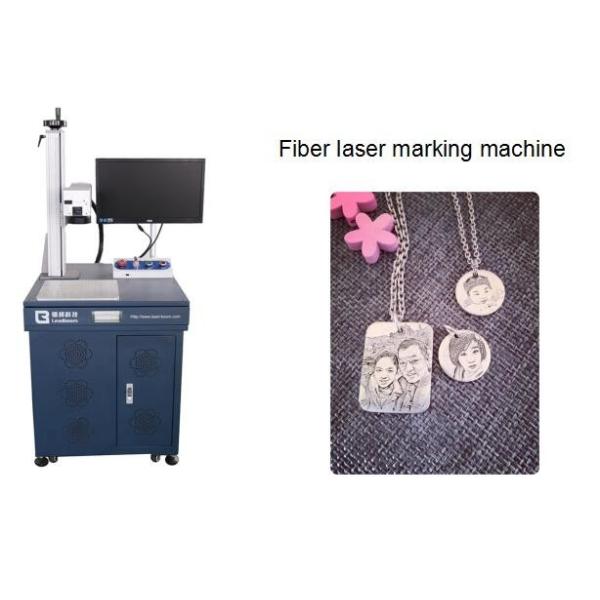

Air Cooling 10W Fiber Laser Marking Machine On Marbles , Laser Engraving Machine
Air Cooling 10W Fiber Laser Marking Machine On Marbles , Laser Engraving Machine
Air Cooling 10W Fiber Laser Marking Machine On Marbles , Laser Engraving Machine
Air Cooling 10W Fiber Laser Marking Machine On Marbles , Laser Engraving Machine
Air Cooling 10W Fiber Laser Marking Machine On Marbles , Laser Engraving Machine
Air Cooling 10W Fiber Laser Marking Machine On Marbles , Laser Engraving Machine
Air Cooling 10W Fiber Laser Marking Machine On Marbles , Laser Engraving Machine
Air Cooling 10W Fiber Laser Marking Machine On Marbles , Laser Engraving Machine
Specifications
Brand Name :
Leadboom
Model Number :
LB-MF
Certification :
CE FDA
Place of Origin :
China
MOQ :
1set
Price :
USD3800-12000/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100set/month
Delivery Time :
7-10 work days
Packaging Details :
Standard export wooden box
Keywords :
Fiber Laser Markng Machine
working area :
70*70mm~175*175mm
power consumption :
0.5KW
Dimension :
900m×600mm×1440mm
Description

Technical parameters

Type LB-MF10
Laser Power 10W
Laser wavelength 1064nm
Beam quality M2≤1.3

Laser repetition rate

 20KHz~80KHz
Working area 50×50mm~110×110mm
Marking speed ≤7000mm/s
Min.characters 0.15mm

Minimum line width

 0.01mm
Repeated precision ±0.001mm
Cooling system air-cooled
Power supply AC220V/50HZ
power consumption 0.5KW
Dimension 900m×600mm×1440mm

Technical Feature:

1. High electro-optic conversion efficiency, no power coupling loss, and save operation cost, service life can be reach 100000 hours, maintenance-free, without consumables.

2. Fine laser beam, small materials consumption, and small effects on heating area, can mark all kinds of delicate and complicated patterns on tiny surface of products according to customer’s request.

3. Non-contact processing, no damage on products, no tool wear, marks with good quality.

4. Fast speed, high efficiency, processing quantities increased obviously at the same time, to speed up return on investment for end user.

Application field

Industry: plastic keypad, components of digital products, electronic components, electrical appliances, jewelry, precision machinery, hardware accessories, glasses, clocks and watches, vehicle and motor accessories, sanitary ware, communication products, medical devices, integrated circuit(IC), building material, pipe materials, more suitable for the marks of high demand of accuracy, speed and depth.

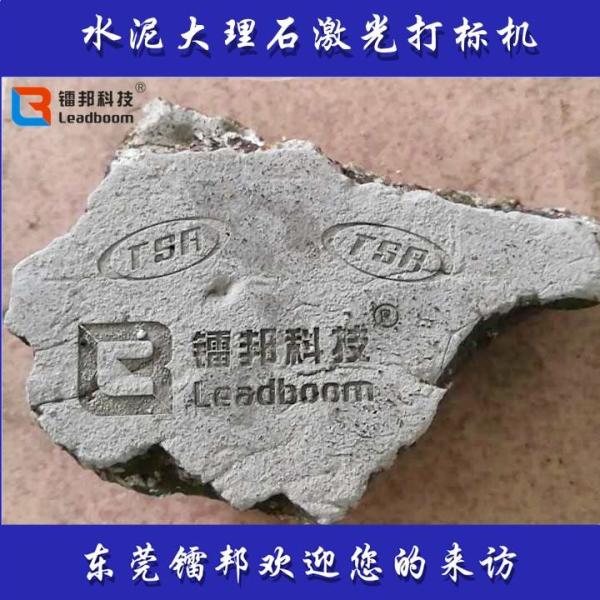

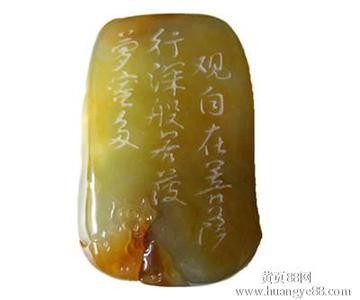

Materials: metal and various nonmetal materials, high hardness alloy steel, oxide, electroplating and vacuum plating, epoxy resin, printing ink, ABS and other engineering plastic.

Air Cooling 10W Fiber Laser Marking Machine On Marbles , Laser Engraving MachineAir Cooling 10W Fiber Laser Marking Machine On Marbles , Laser Engraving MachineAir Cooling 10W Fiber Laser Marking Machine On Marbles , Laser Engraving Machine
