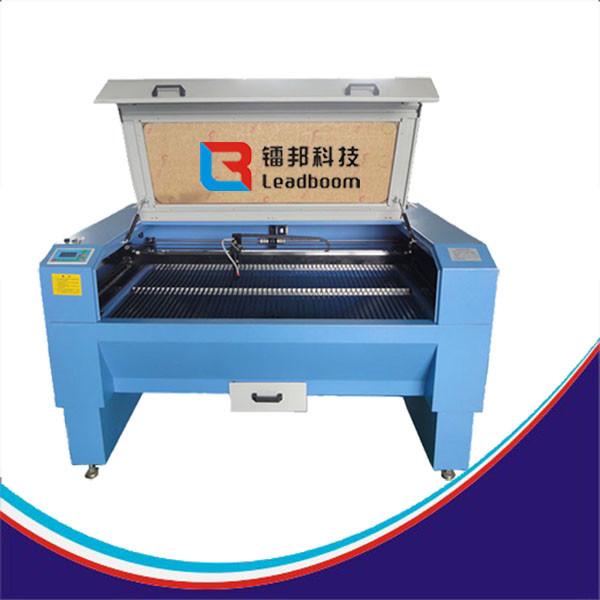

Mini Co2 Laser Non Metal Cutting Machine Industrial Laser Cutter ±0.001mm Precision
Mini Co2 Laser Non Metal Cutting Machine Industrial Laser Cutter ±0.001mm Precision
Mini Co2 Laser Non Metal Cutting Machine Industrial Laser Cutter ±0.001mm Precision
Mini Co2 Laser Non Metal Cutting Machine Industrial Laser Cutter ±0.001mm Precision
Mini Co2 Laser Non Metal Cutting Machine Industrial Laser Cutter ±0.001mm Precision
Mini Co2 Laser Non Metal Cutting Machine Industrial Laser Cutter ±0.001mm Precision
Specifications
Brand Name :
Leadboom
Model Number :
LB-CE1680
Certification :
CE
Place of Origin :
Chine
MOQ :
1set
Price :
USD3000-8000/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100set/months
Delivery Time :
7-10 work days
Packaging Details :
Stardard export wooden box
Applicable Material :
Cloth, tile, paper, leather, plastic, &etc.
Description

Mini Low Cost co2 laser non metal cutting machine

1.Technical Parameters:

Type LB-CE6040 LB-CE9060 LB-CE1280 LB-CE1390 LB-CE1680
Laser Power 60W/80W 60W/80W 80W/100W 80W/100W 80W/100W
Working area 600x400mm 900x600mm 1200x800mm 1300x900mm 1600x800mm
Laser type CO2 Sealed Glass tube laser
Off-line motion control USB data import
Laser wavelength 10640nm
Max.curve movement speed 50000mm/min Stepping motor
Cutting speed 0-40000mm/min Stepping motor
Min. Carving Character Chinese character 2.0x2.0mm, English 1.0x1.0mm
Repeated precision ±0.001mm
Max. scanning accuracy 2500 DPI
Power supply AC220V/50Hz
Coolling system Water-cooling

2. Product Overview

CNC Laser Cutting Machine is using the energy released from the workpiece when irradiated by laser beam, to make the workpiece melt and evaporate, so as to cut and engrave. Laser cutting is of high-rate precision and speed, and is not limited by patterns. The automatic composing can save materials largely, and the incision is vey smooth, and also the processing cost is much lower. With those qualities, the laser cutting machine will replace the traditional cutting Equipment.

LB-CE Series Laser Cutting machine are the high-tech product which using the CO2 laser as energy power, and integrating technologies of optics and mechatronics. It is combined organically by the stepping motor driving system, the mechanical system of synchronous belt, wheel adn straight axis, and the new technology of DSP digital control and USB data transmission.

3.Application Materials & fields:

Cloth, tile, cardboard, paper, leather, PU leather, trademark embroider, plastic, rubber, wood products, wood, organic glass, acrylic, jade, leather, shell, horn, animal sebum, double color boards, bamboo and wood products, ABS board, PVC board, fiber and composite materials etc. Nonmetal materials.

Shoes, leather clothing, trademark processing, embroidery, advertisement, decoration, wood processing, packaging and printing, laser knife die, decoration decoration industry, printing tipping template, process gifts industry, electronic industry, model industry (architecture model, aviation and navigation models and wooden toys), etc.

4. Advantages

  • Adopt the off-line motion control system which need not be connected to PC operation. Use USB data import, can reserve many processing documents.
  • Strong and stable mechanical structure and digital control.
  • Imported the American focusing mirror and silicon bottom gilded mirror with thin light spot and cutting force.
  • Equiped with professional industrial cooling water system, so the continuous work performance is very stable .
  • Support AI, BMP, PLT, DXF, DST (tajima embroidery software) image data format import.
  • Support TAJIMA embroidery software (TAJIMA), CORELDRAW, PHOTOSHOP, AUTOCAD, all kinds of clothing CAD software.
  • Equipment can choose servo drive and imported linear guide, enhance stability, improve accuracy, increase the work efficiency.
  • Can adopt double-head laser cutting, with big processing dimension and high processing efficiency.

5.Our company

Dongguan Leadboom Photoelectric Technology Co., LTD., is dedicated to researching and developing laser equipments and mass manufacturing for our customers overseas.
And we have built long term strategic parterships with the COHERENT, SYNRAD, II VI from the US, and MITSUBISHI, Panasonic from Japan, and Rofin, IPG from Germany,etc.
Our main products including CO2 laser wire stripping machine, fiber laser wire stripping machine, fiber laser marking machine, CO2 laser marking machine, CO2 laser cutting machine, laser engraving machine, solid laser welding machine series over 20 sets of laser equipment, etc.
Our company takes "quality, innovation, efficiency, service" as business target and is now growing fast with our partner and client together. And we also believe that the basis of a enterprise development is the attitude of pursuing excellence and the support from customers will strengthen our confidence. The only device can no longer stand for our technology, we are offering the solutions.
Let’s cooperate together for the brighter future!

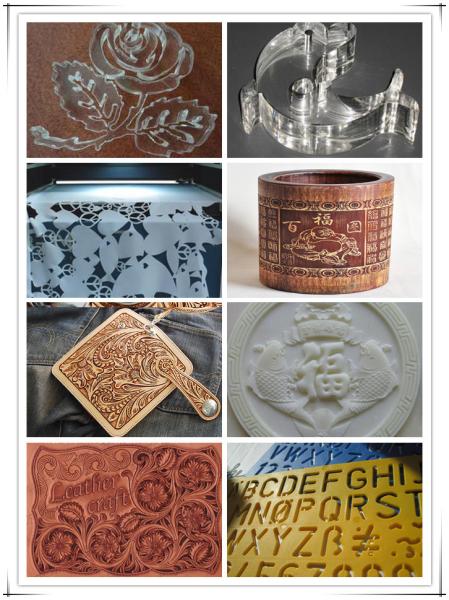

7. Samples:

Mini Co2 Laser Non Metal Cutting Machine Industrial Laser Cutter ±0.001mm Precision Mini Co2 Laser Non Metal Cutting Machine Industrial Laser Cutter ±0.001mm Precision
Cutting work of Acrylic by our laser cutting machine
Mini Co2 Laser Non Metal Cutting Machine Industrial Laser Cutter ±0.001mm Precision Mini Co2 Laser Non Metal Cutting Machine Industrial Laser Cutter ±0.001mm Precision
Drawing art work on wood and bamboo by laser cutting and engraving machine
Mini Co2 Laser Non Metal Cutting Machine Industrial Laser Cutter ±0.001mm Precision Mini Co2 Laser Non Metal Cutting Machine Industrial Laser Cutter ±0.001mm Precision
The beautiful leather working by laser cutting machine
