Product description

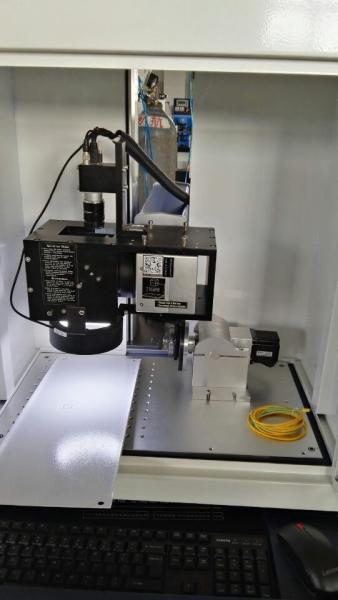

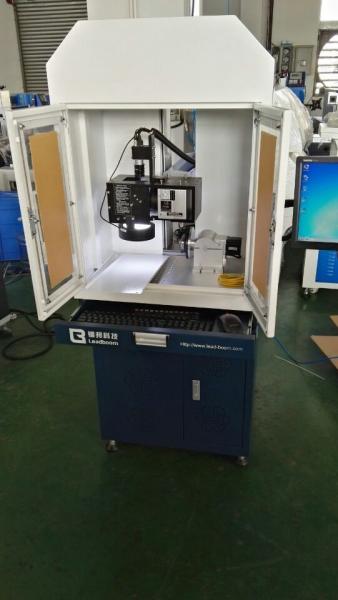

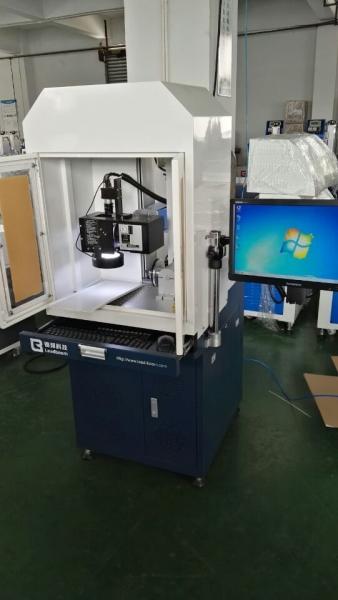

Fiber Laser Marking Machine adopted IPG(Germany) fiber laser and high speed galvanometer scanning system with stable power, excellent optical mode, beam with high quality, fast marking speed, good effects and high efficiency, it can meet the demand for mass production.
Machine Description
Type | LB-MF10 | LB-MF20 | LB-MF30 |
Laser Power | 10W | 20W | 30W |
Laser wavelength | 1064nm | ||
Beam quality | M2≤1.3 | M2≤1.3 | M2≤1.3 |
Laser repetition rate | 20KHz~80KHz | 20KHz~80KHz | 20KHz~200KHz |
Marking speed | ≤7000mm/s | ≤8000mm/s | ≤8000mm/s |
Min.characters | 0.15mm | 0.15mm | 0.15mm |
minimumline width | 0.01mm | 0.01mm | 0.01mm |
Repeated precision | ±0.001mm | ±0.001mm | ±0.001mm |
Cooling system | air-cooled | air-cooled | air-cooled |
Power supply | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
power consumption | 0.5KW | 0.8KW | 1.2KW |
Dimension | 800mm×620mm×1340mm | 800mm×620mm×1340mm | 800×620×1340mm |
Dongguan Leadboom Photoelectric Technology Co., LTD. is dedicated to researching and developing laser equipments and mass manufacturing for our customers overseas.
And we have built long term strategic parterships with the COHERENT, SYNRAD, II VI from the US, and MITSUBISHI, Panasonic from Japan, and Rofin, IPG from Germany,etc.
Our main products including CO2 laser wire stripping machine, fiber laser wire stripping machine, fiber laser marking machine, CO2 laser marking machine, CO2 laser cutting machine, laser engraving machine, solid laser welding machine series over 20 sets of laser equipment, etc.
Our company takes "quality, innovation, efficiency, service" as business target and is now growing fast with our partner and client together. And we also believe that the basis of a enterprise development is the attitude of pursuing excellence and the support from customers will strengthen our confidence. The only device can no longer stand for our technology, we are offering the solutions.
Let’s cooperate together for the brighter future!
Producing Department
1.We will train 1-2 technicists for free.
2.Training details: the machine’s operational principles, the machine’s system and structure, the safety and maintenance, software, the processing technique, and so on.
3.All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us. and all of our machine with a 12 months quality guarantee period.
4.We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine. We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
5.We will offer plenty of online supports, just like detailed technical and installation instructions by email, video, telephone and fax.
