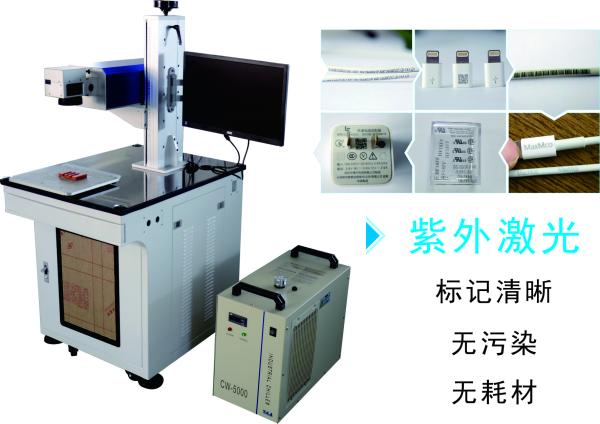

Glass Ultraviolet Laser Marking Machine / Stripping Machine 1100 * 630 * 1380mm
Glass Ultraviolet Laser Marking Machine / Stripping Machine 1100 * 630 * 1380mm
Glass Ultraviolet Laser Marking Machine / Stripping Machine 1100 * 630 * 1380mm
Glass Ultraviolet Laser Marking Machine / Stripping Machine 1100 * 630 * 1380mm
Glass Ultraviolet Laser Marking Machine / Stripping Machine 1100 * 630 * 1380mm
Glass Ultraviolet Laser Marking Machine / Stripping Machine 1100 * 630 * 1380mm
Glass Ultraviolet Laser Marking Machine / Stripping Machine 1100 * 630 * 1380mm
Glass Ultraviolet Laser Marking Machine / Stripping Machine 1100 * 630 * 1380mm
Specifications
Brand Name :
Leadboom
Model Number :
LB-UV 2W/3W/10W
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
USD8800-20000/Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100Sets/months
Delivery Time :
7-10 work days
Packaging Details :
Standard export wooden box
The minimum mark character :
0.1mm
Dimension :
1100*630*1380mm
Description
Product Description

LB-UV ultraviolet laser marking machine has small focused spot, and slightly affects for processing on heating zone, so it can be ultra-fine marking and marking on special materials, it’s the best choice for higher precision marking according to customer’s requirements.

Product Parameters

Type LB-UV-2W/3W/5W LB-UV-7W/10W
Laser Wavelength 355nm
The maximum laser power 2W/3W/5W 7W/10W
Beam quality M² 1.1 1.3
Q-frequency 0-90kHz

The minimum

mark character

 0.1mm
Marking the minimum line width 0.01mm 0.015mm
Marking speed 400Characters / sec 500Characters / sec
Repeatability ±0.001mm
Engraving range 110×110mm or 180×180mm
Power Requirements 220V/50Hz/10A
Cooling system Water cooling

Production Samples

Glass Ultraviolet Laser Marking Machine / Stripping Machine 1100 * 630 * 1380mmGlass Ultraviolet Laser Marking Machine / Stripping Machine 1100 * 630 * 1380mmGlass Ultraviolet Laser Marking Machine / Stripping Machine 1100 * 630 * 1380mmGlass Ultraviolet Laser Marking Machine / Stripping Machine 1100 * 630 * 1380mm

Our Services

1.We will train 1-2 technicists for free.
2.Training details: the machine’s operational principles, the machine’s system and structure, the safety and maintenance, software, the processing technique, and so on.
3.All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us. and all of our machine with a 12 months quality guarantee period.
4.We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine. We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.
5.We will offer plenty of online supports, just like detailed technical and installation instructions by email, video, telephone and fax.
