Specifications
Brand Name :
Co2 Laser
Model Number :
LB-MC60
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
T/T
Supply Ability :
1000 Set/Year
Delivery Time :
7 Working day after payment
Packaging Details :
Wooden case
Type :
LB-MC60
Laser wavelength :
10640nm
Marking speed :
≤7000mm/s
Beam quality :
M2≤5
Min linewidth :
0.05mm
Cooling system :
Air cooling
Power supply :
AC220V/50Hz
Working area :
110x110mm-140x140mm(Optional)
Dimension :
1000x620x1360mm
Warranty :
1 year
Description

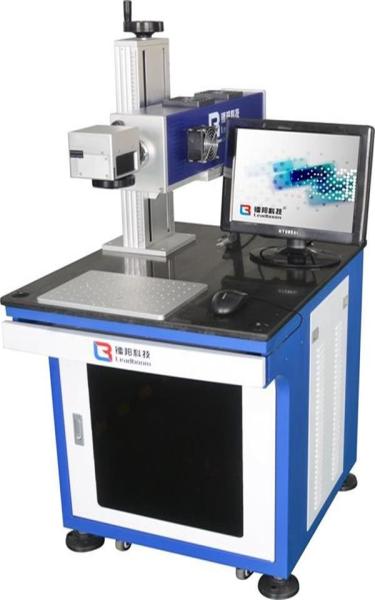

Co2 laser marking machine, leather laser cutting machine

T - Shirt CO2 Laser Marking Machine For, leather laser cutting machine

Our Advantages


1. We export to America for many years, especially to Argentina/Mexico/USA/Brazil/Chile..
2. For the Europe market, we have many customers in the UK, Germany, Slovenia, Romania, Spain, Holand..
3. Engineer with more than 10 years' experience is available for technical support.
4. Trade Assurance supported, the orders can be placed online.

Product Description

1. Model: CO2 Laser Marking Machine LB-MC30

2. Applicable materials:wood,MDF,acrylic,plastic,plexiglass,crystal,rubber,fabric,paper

and other non-metal materials.

3. Applicable Industry:

Processing industries of large-scale Markings,such as garment, leather, clipping, cutting

of template, printing, advertisement decoration, building upholster, art gift, computerized

embroidery, package, paper product , acrylic product, middle-density board, etc.

nonmetal sheet precision cutting and other industries.

4. Technical Parameters:

Laser Power 30W
Supply Voltage 110V/220V, 50Hz/60Hz
lifetime 20000hours
Laser Wavelength 10.6μm
Repeating frequency ≤25KHz
Minimum line width 0.10mm
Repeating precision ±0.01mm
Integrity power ≤1.2KW
Working size 110mm*110mm/175mm*175mm/260mm*260mm
Carving Speed 7000mm/s
Minimum character 0.4mm
Cutting thickness 2-3mm
System Environment WINDOWS XP/Win7/8
Graphic file format PLT,DXF,AI,DST
Cooling Way Air Cooling
Net Weight 70Kg
Machine dimension 600x800x1400mm


Samples of laser marking machine

T - Shirt CO2 Laser Marking Machine For, leather laser cutting machine

Features

1. Adopt with Use RF metal laser tube
2. Running lifetime can reach to 2-4 million hours
3. Can form production date, bar code, planar bar code automatically
4. Support the flight marking, rotary marking, large area XY platform segmentation making automatically

Parts of laser marking machine

T - Shirt CO2 Laser Marking Machine For, leather laser cutting machine
T - Shirt CO2 Laser Marking Machine For, leather laser cutting machine

package

Packing dimension: 1000x780x1300mm
Volume: 3.11CBM
Gross weight: 200kg

T - Shirt CO2 Laser Marking Machine For, leather laser cutting machine


After-sale

l We will train 1-2 technicists for free.

l We will offer plenty of online supports, just like detailed technical and installation instructions by email, video, telephone and fax.
l Training details: the machine’s operational principles, the machine’s system and structure, the safety and maintenance, software, the processing technique, and so on.
l All of our machine will be full-checked by our quality control department before the shipment. We make sure that customers will be get good products from us. and all of our machine with a 12 months quality guarantee period.
l We will supply brochures for simple trouble-shootings of the machine, which will help you dealing with the common problems happened to the machine. We will enclose an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer.

Our company

Dongguan Leadboom Photoelectric Technology Co., LTD., is dedicated to researching and developing laser equipments and mass manufacturing for our customers overseas since 2002.
And we have built long term strategic partnerships with the COHERENT, SYNRAD, II VI from the US, and MITSUBISHI, Panasonic from Japan, and Rofin, IPG from Germany,etc.
Our main products including CO2 laser wire stripping machine, fiber laser wire stripping machine, fiber laser marking machine, CO2 laser marking machine, CO2 laser cutting machine, laser engraving machine, solid laser welding machine series over 20 sets of laser equipment, etc.
